FINE MACHINE THREAD QD STUDS
For QD stud fitting bipods and QR sling swivels.
QUICK-DETACH BIPOD / SLING SWIVEL BASE STUD
10-32 ~ LONG (TWO)
£3.00p for twoImperial 10-32 threads
(approx 4.7mm).
18mm / 0.75 inch long thread.
*MULTI-BUY OFFER*
Buy any mix of two or more options for 30% OFF Condition: NewChoice of machine screw thread QD stud, needed for fitting
swivel stud fitting rifle bipods and Quick-Detach gun sling swivels.
The 10-32 thread long stud is a fairly standard length for fitting to the forend, where they may replace the factory fitted non-detachable stud.
The 10-32 mini and 10-32 long studs are imperial 10/32 threads (10 gauge / 32 threads per inch), apporx 4.7mm diameter.
We have one metric option ~ M6 mid, and should should have some more metric options soon.
All have approx 3.75mm holes for bipods and QD sling swivel posts, so not suitable without adaption for EU spec swivels, which will likely have narrower pins and gates.

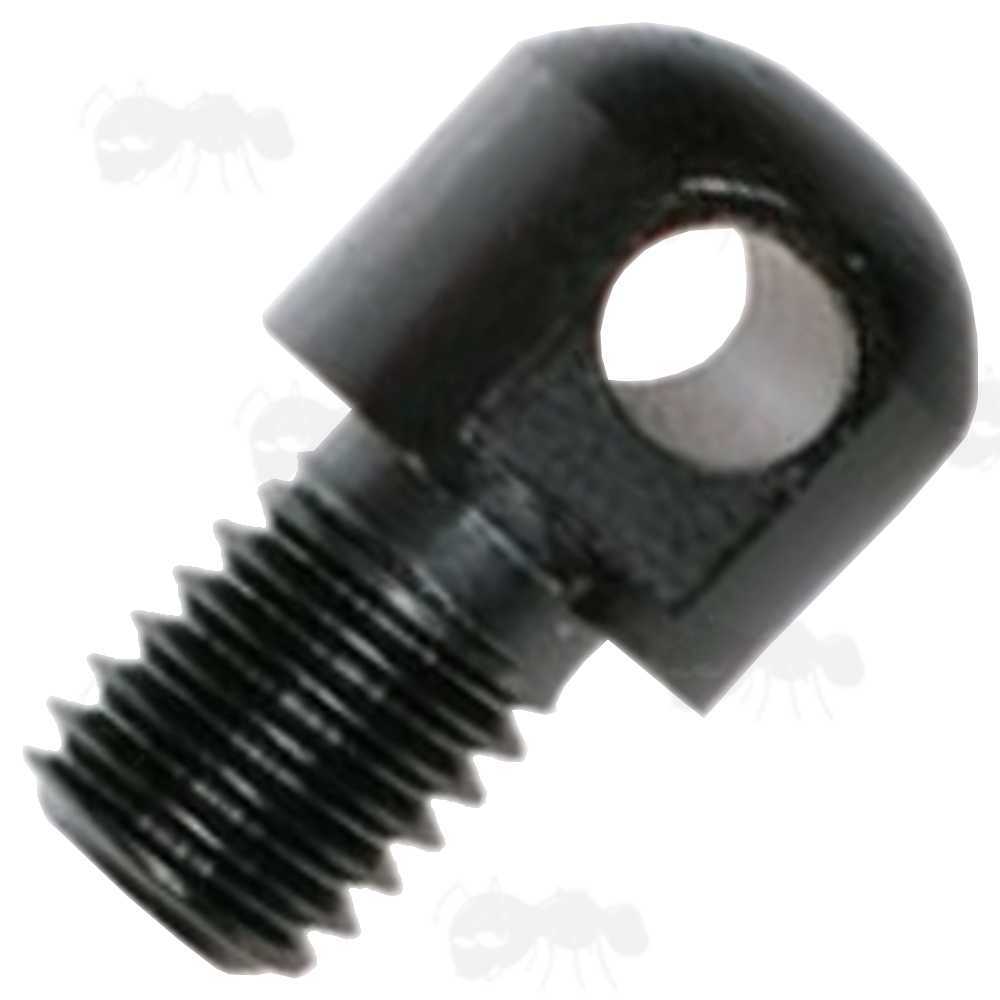

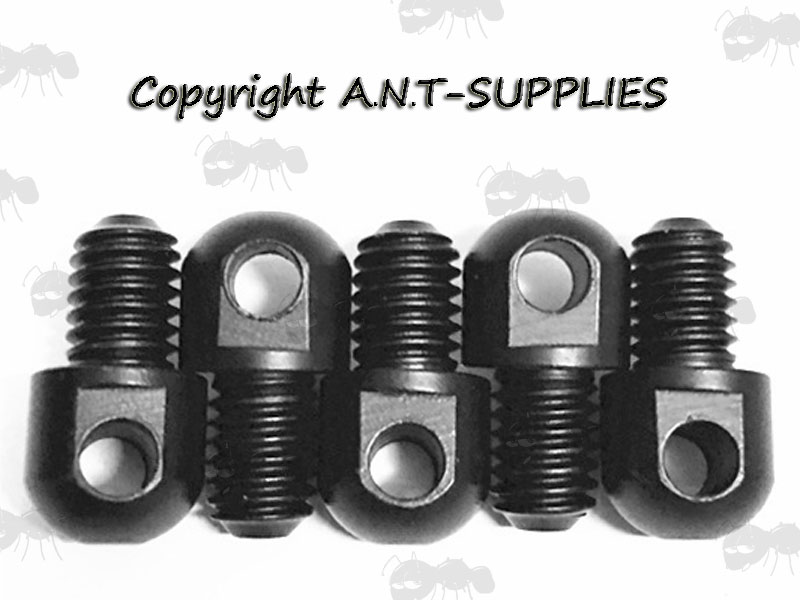

- 10-32 ~ MINI STUD:
The mini stud should fit many lever action rifles with forend band, and a range of shotgun magazine caps, for fitting a sling QD swivel.
With the same thread type as the 10-32 long QD studs.C. Sharps Arms Co. 1863 Sharps Carbine, Sporting Rifles #1, #3.
Marlin 39M, 1894M.
Maverick Arms Model 88 Shotgun.
Mossberg 472 Deerslayer, 500 Series Shotgun mag caps and bayonet lugs (including the Mossberg Hushpower .410 and Mossberg 500 Pump 20 Gauge Hushpower).
Please Note: if your Hushpower .410 has a fixed silencer, then the gap between the threaded mag cap and the silencer may not be quite big enough to fit the stud, the stud can be filed down a little to fit, image at end of page.New Haven (Mossberg) Pump 600 Series.
Savage 30 Slug, 30 D, 30 Combination, 30 Field Grade.
Western Field 72, 79.
Also available ~ Mossberg 500 Sling Swivels and QD Studs Set.
- M6 ~ MID STUD:
The 6mm diameter thread mid stud is still fairly new, and although very popular as it offers a metric thread, we haven't received much feedback on compatibility as yet.
M6x1.0 coarse, general-purpose standard thread, that offers more resistance to stripping in soft materials.
Please Note: this mid size stud is unique, you can use a M6 nut with them, the nut options here will not fit them.
The 6mm thread is likely a match for the Weihrauch HW100 QD stud threaded forend hole, but the thread of these are likely not long enough.Kral Puncher K ~ Perfect fit for the forend to fit a bipod.
ATA Arms Airborne.
Webley Eagle ~ Replaces the screw on the under side, enabling a sling to be fitted to rifle.

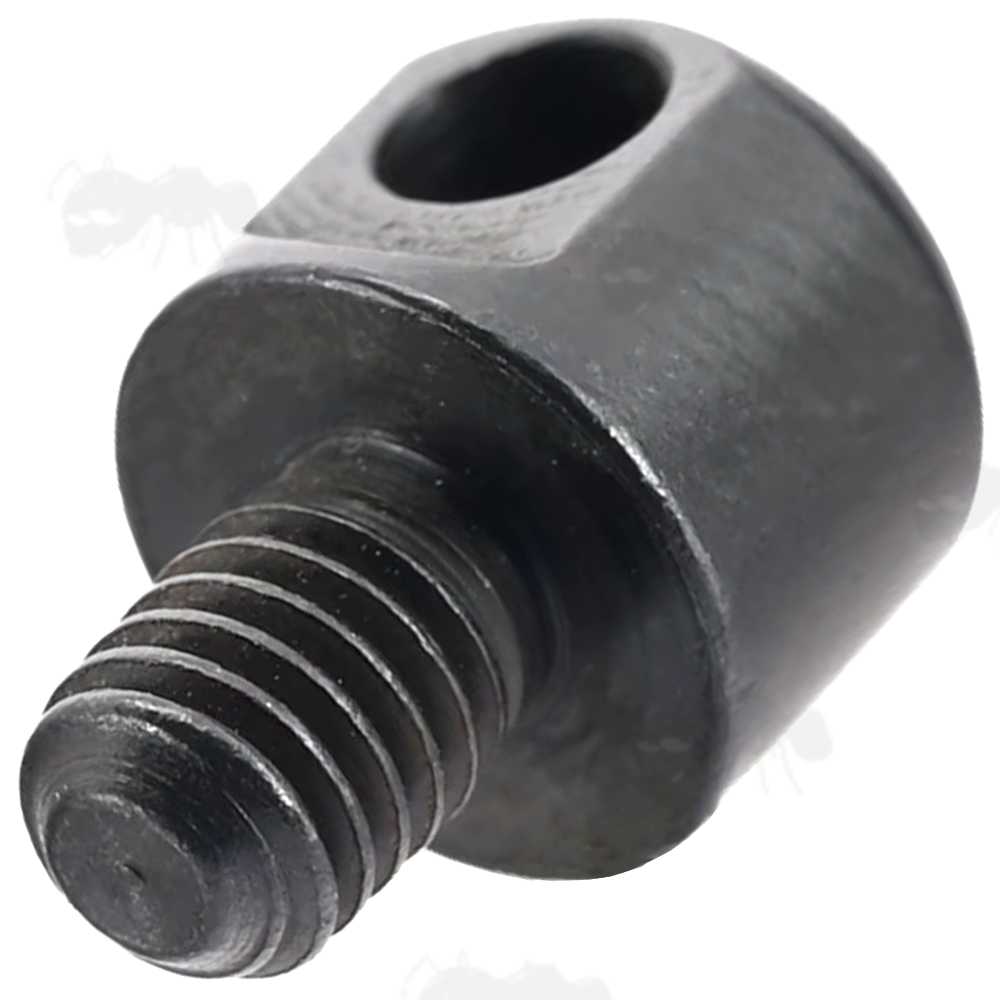

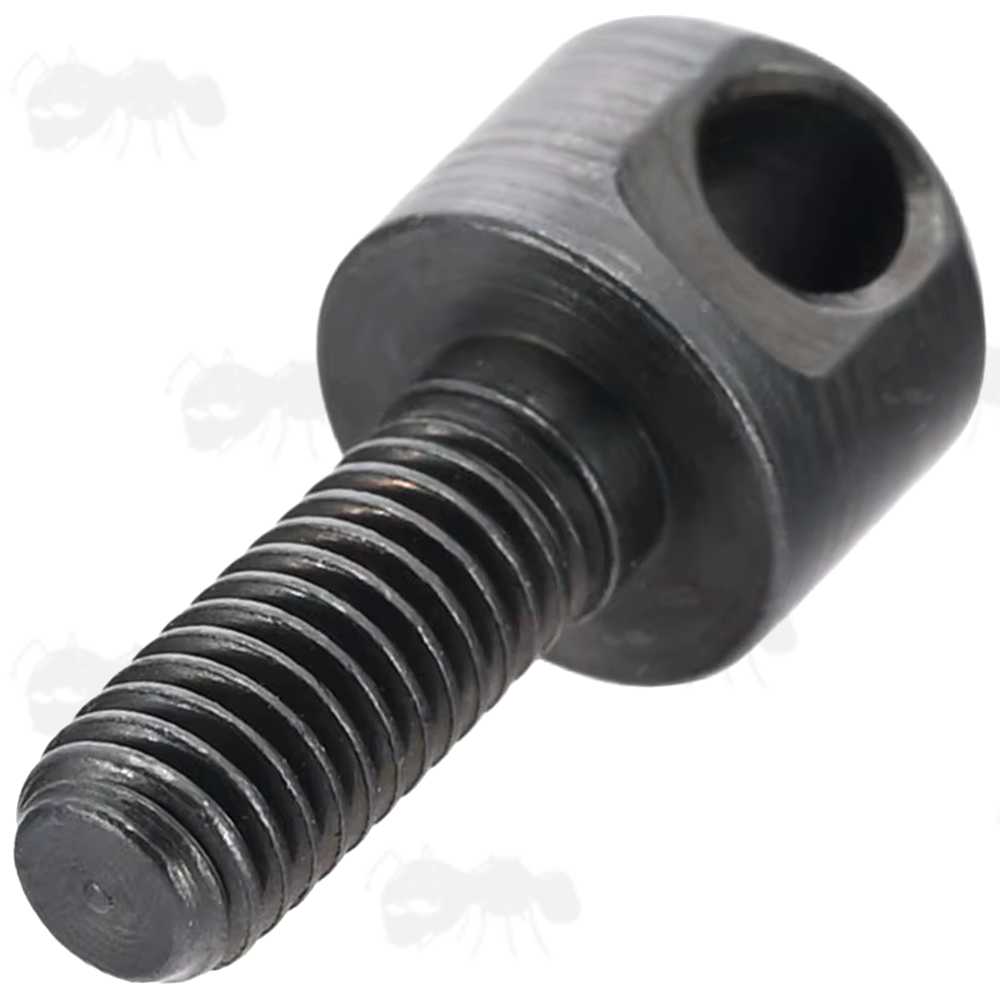

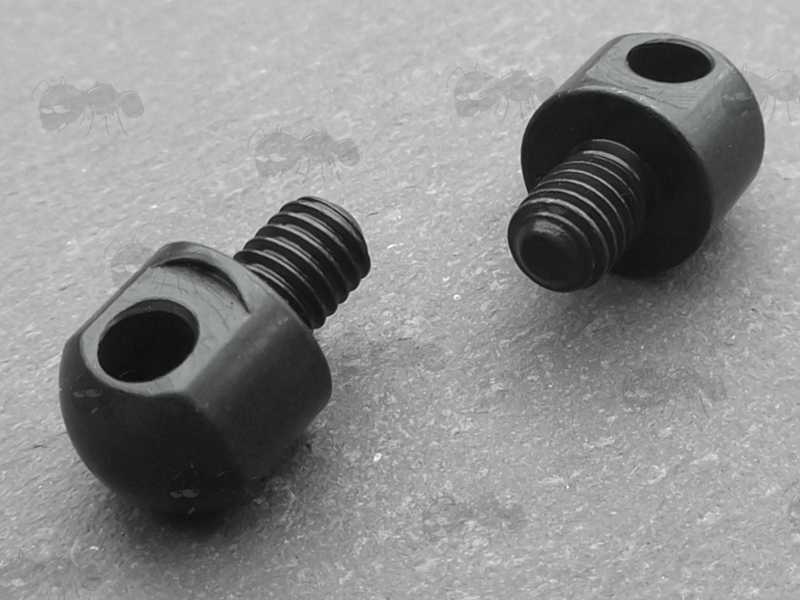

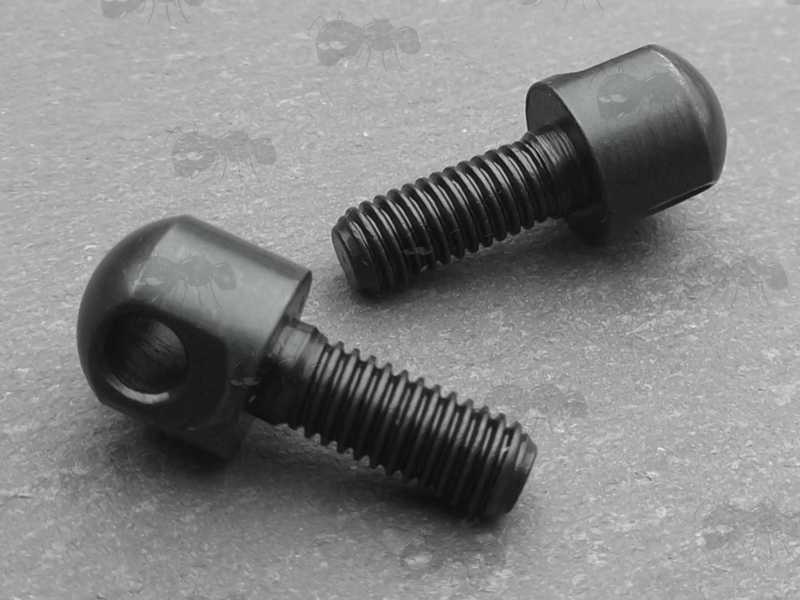

- M5 ~ MINI OR LONG OPTION:
COMING SOON
- 1/4 INCH DIAMETER:
COMING SOON

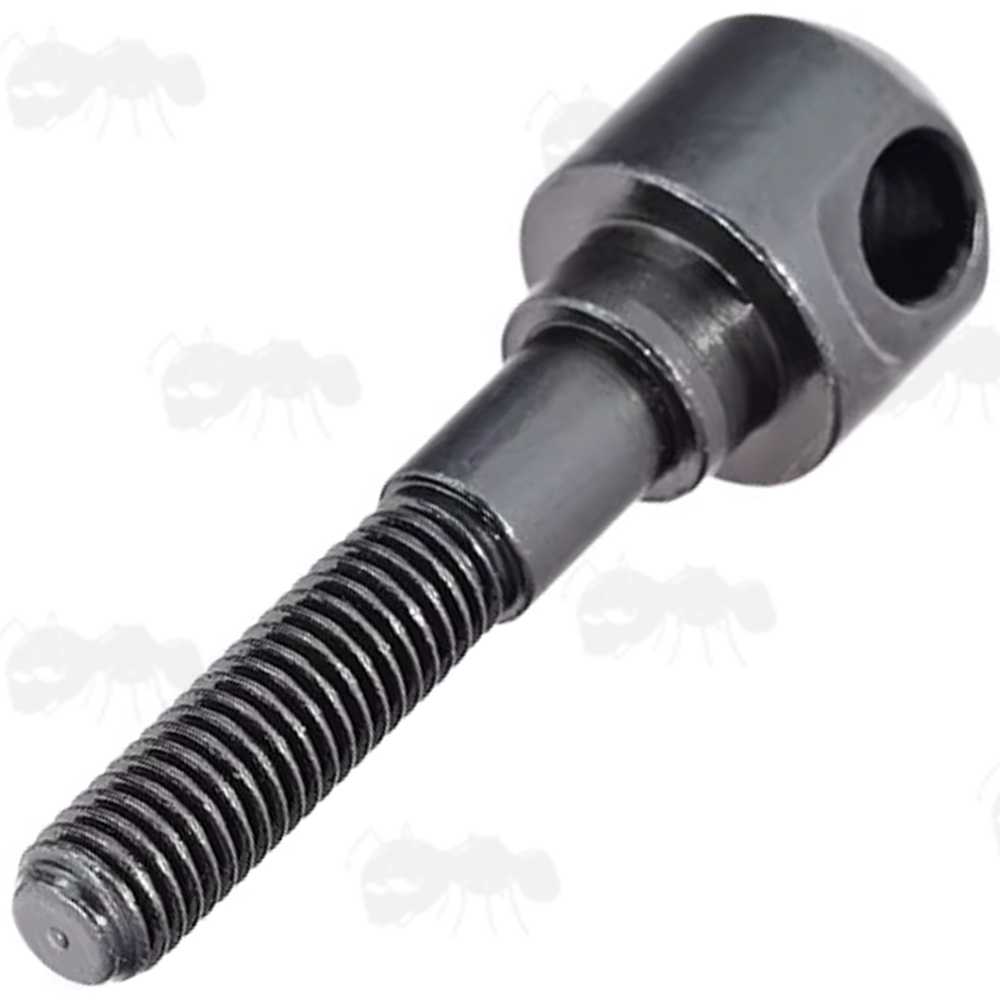

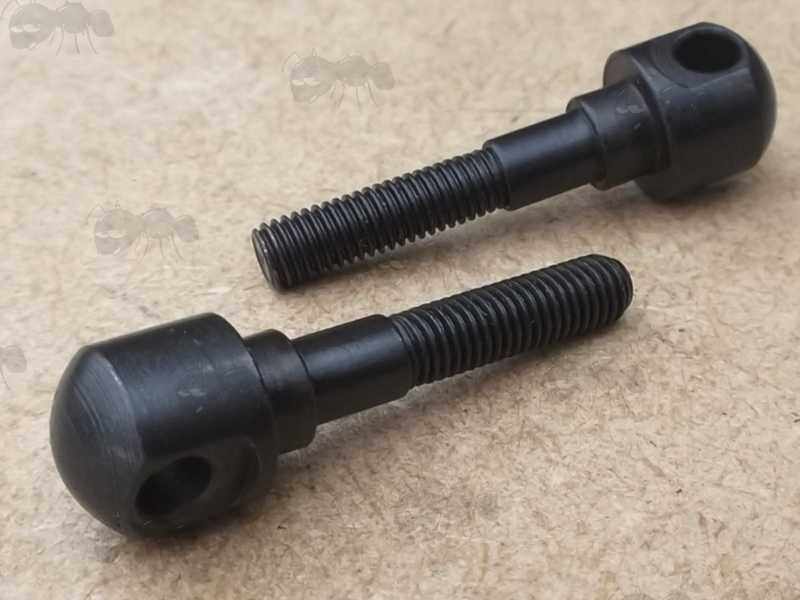

- M4 ~ EXTRA LONG:
The threaded section is 15mm long.
Then 4.45mm diameter step up that is 5mm long.

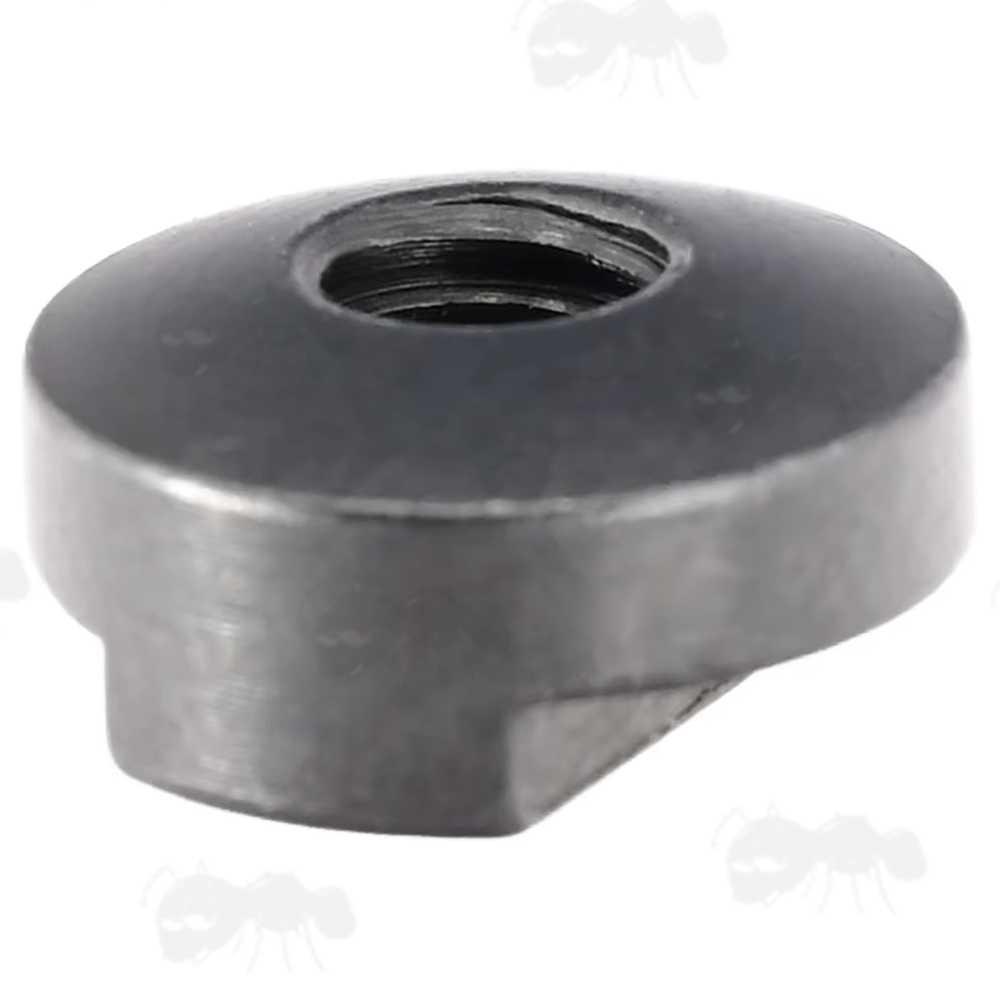

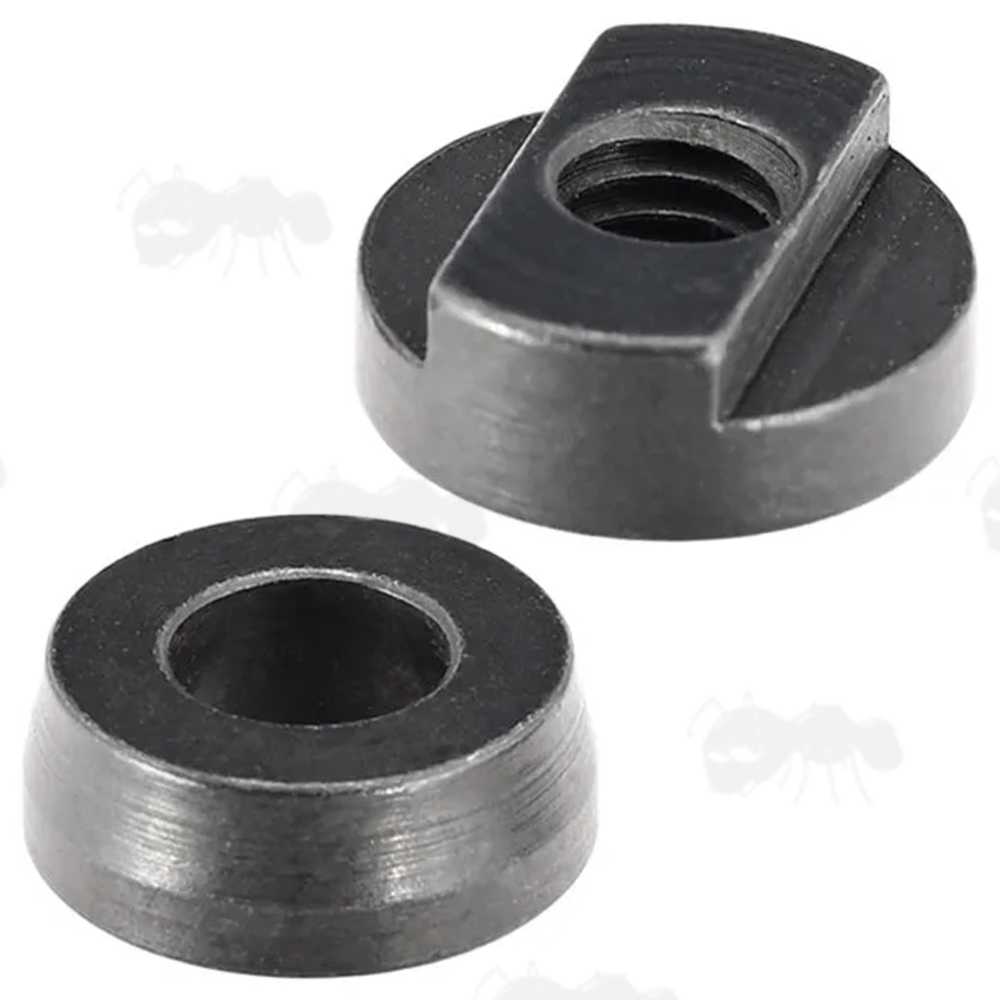

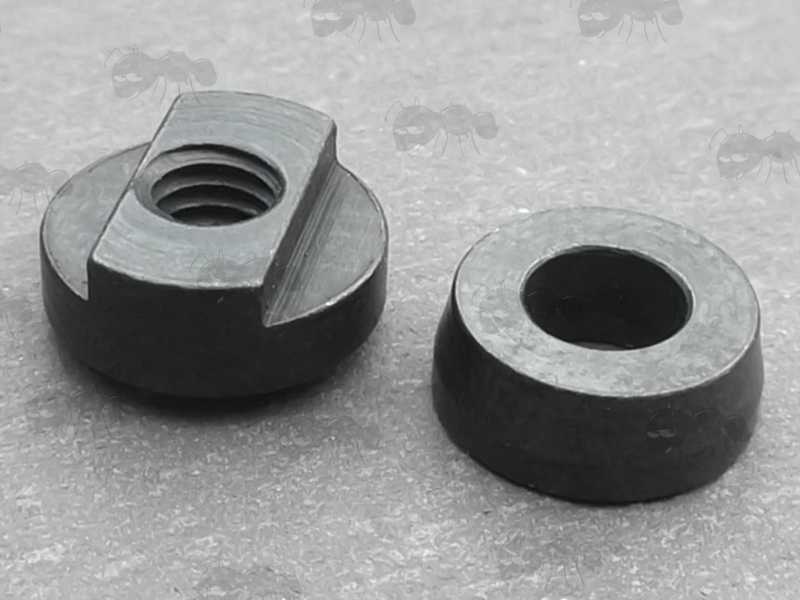

A final 6mm diameter section at 3mm long.- M5 ~ SPACER OR NUT AND SPACER OPTION:

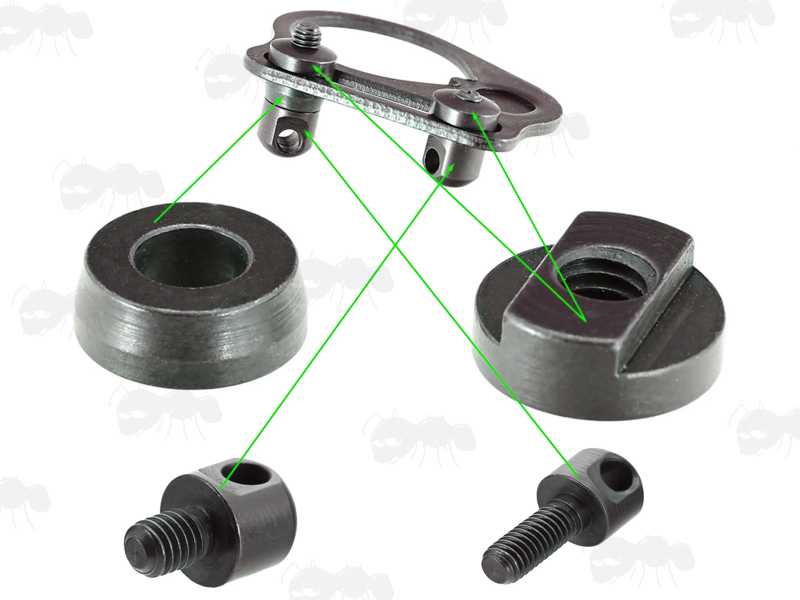

Can be used with the M5 QD studs to allow a traditional QD sling swivel attachment point on a tactical rifle sling adapter receiver plate, with the sling webbing slot design (image below).

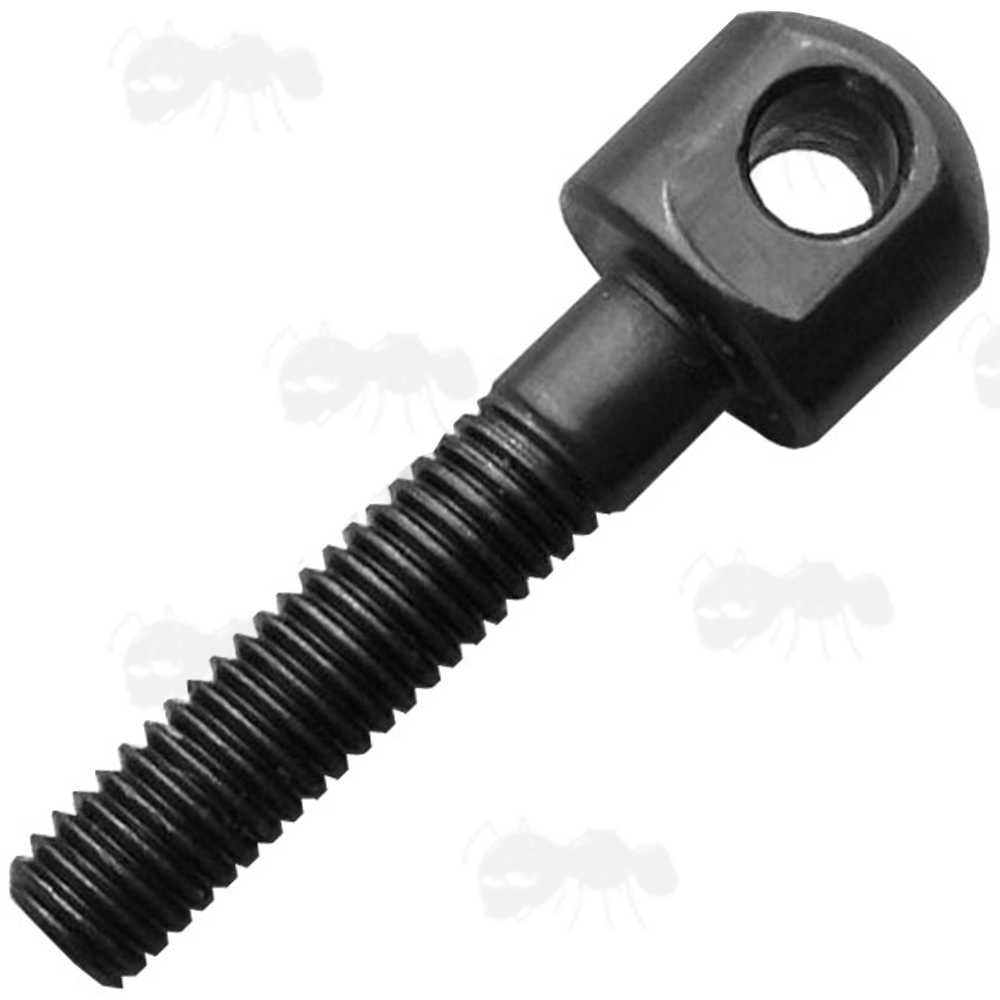

- 10-32 ~ LONG STUDS (WITH NUT OPTIONS):
Imperial 10-32 threads (approx 4.7mm).
These are the most common thread type.
The QD studs have a haft length approx 22mm, with a thread length approx 18mm.
The 10-32 mini stud is also the same thread type.
Please let us know what rifle you fit them to, so that we can add to the list.

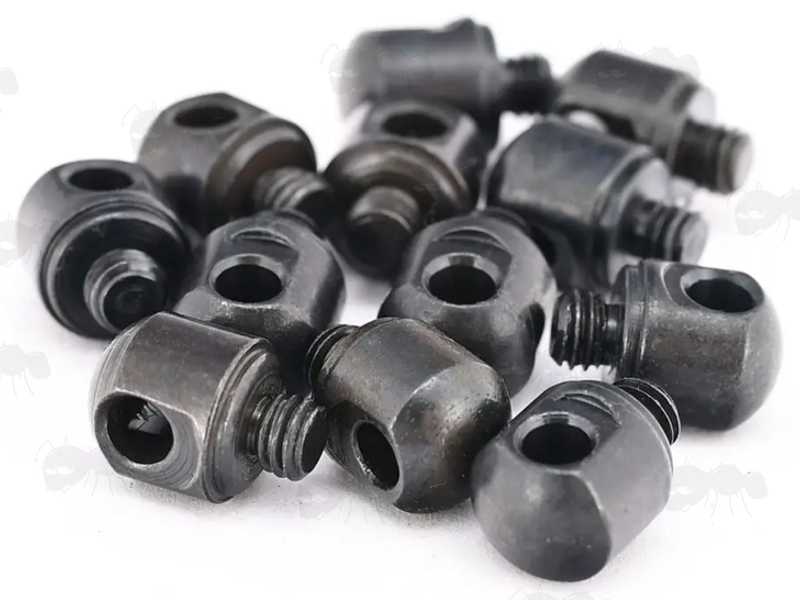

10-32 ~ MINI:
M6 ~ MID:
10-32 ~ LONG:

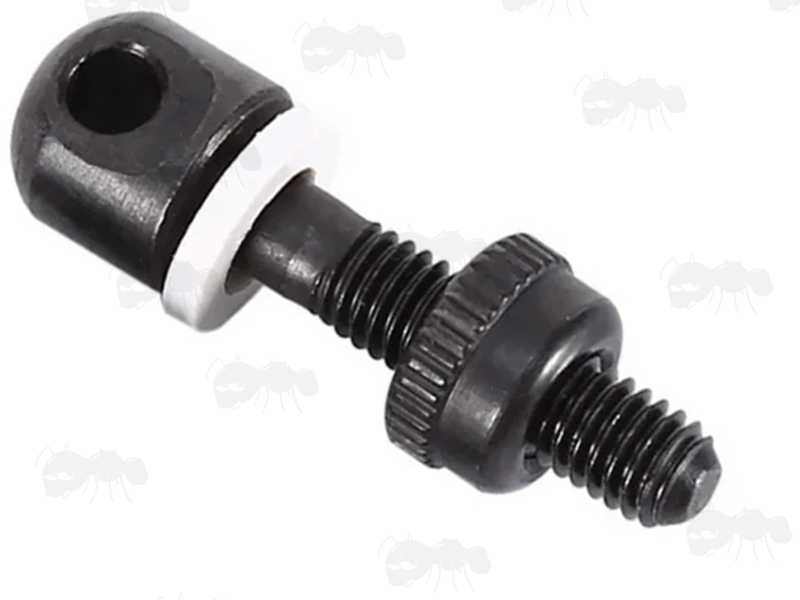

OPTION OF SPARE / REPLACEMENT NUTS FOR THE 10-32 LONG THREAD STUDS:
10-32 ~ MINI STUD

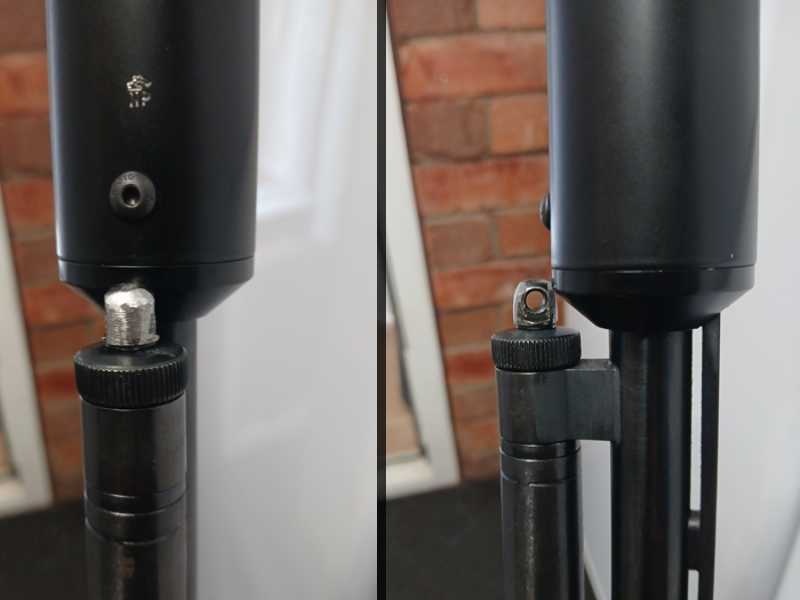

SHOWN ADAPTED TO BE ABLE TO FIT A HUSHPOWER .410 WITH A FIXED SILENCER:

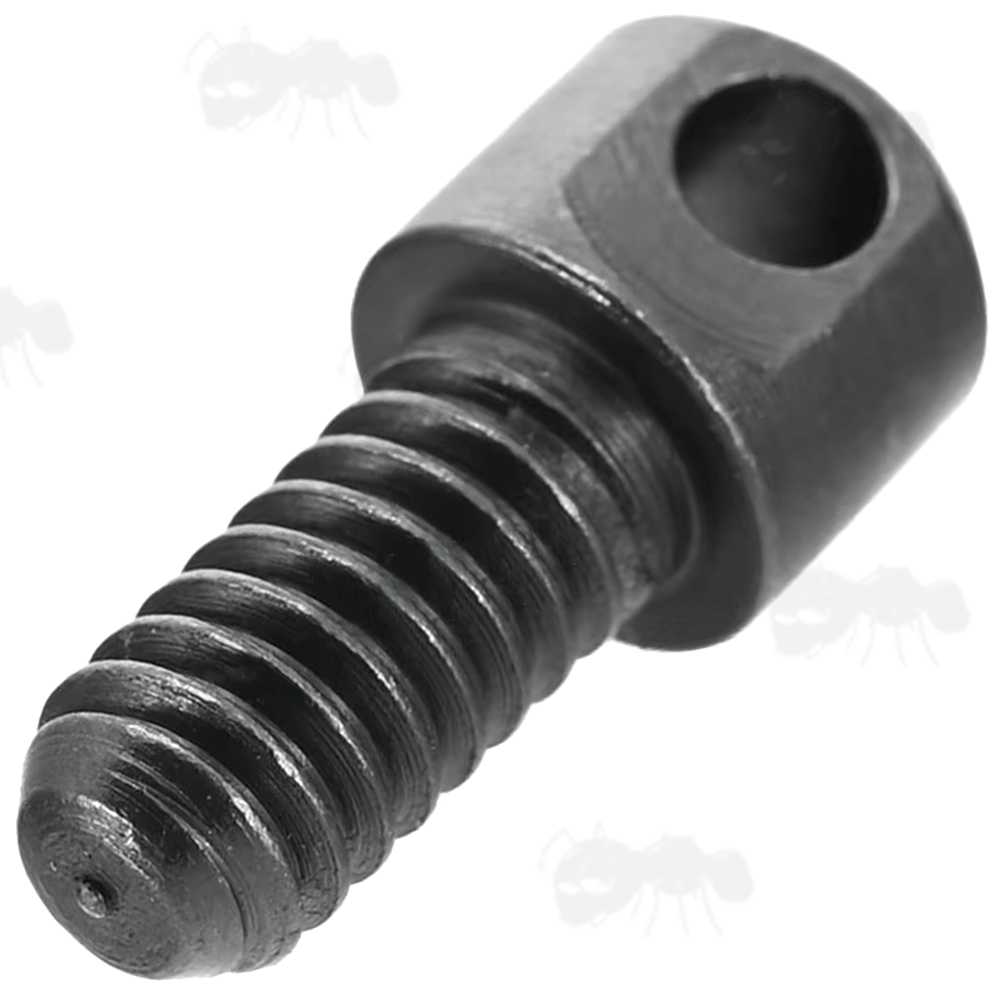

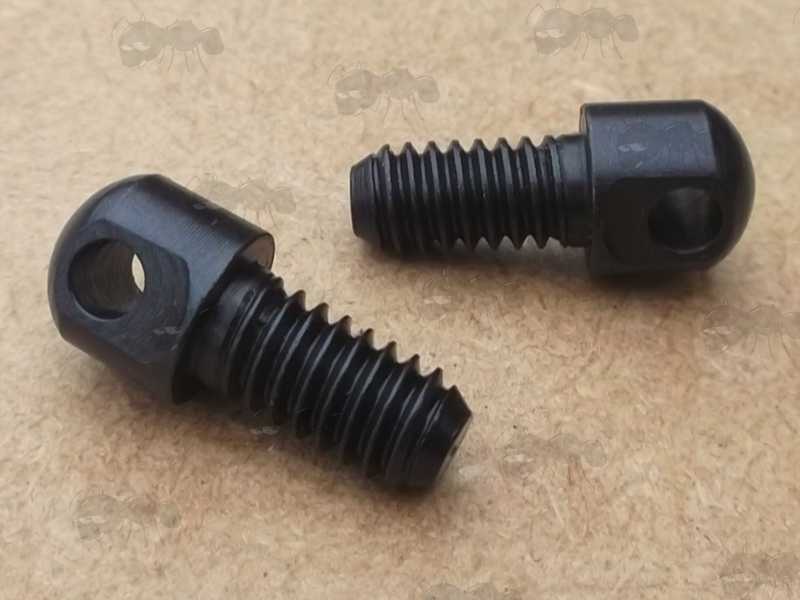

1/4 INCH DIAMETER
£4.80p eachBY REQUEST Imperial 0.25 inch threads
(approx 6.35mm).
Thread length ~ 12mm.

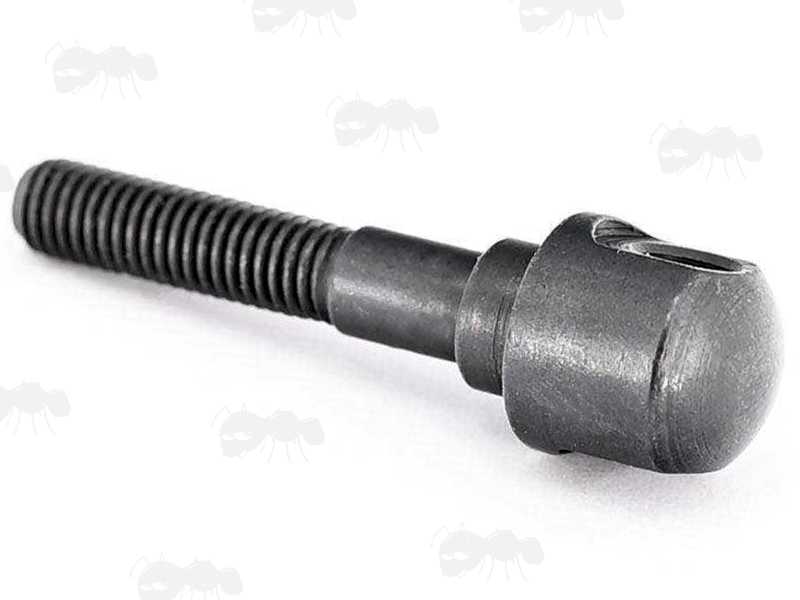

M4 ~ EXTRA LONG
£4.80p eachBY REQUEST 4mm diameter threads.
The shaft is 23mm long overall in three sections.
GUIDE TO USING THE M5 STUDS WITH THE M5 SPACER AND NUT CONFIGURATIONS:
