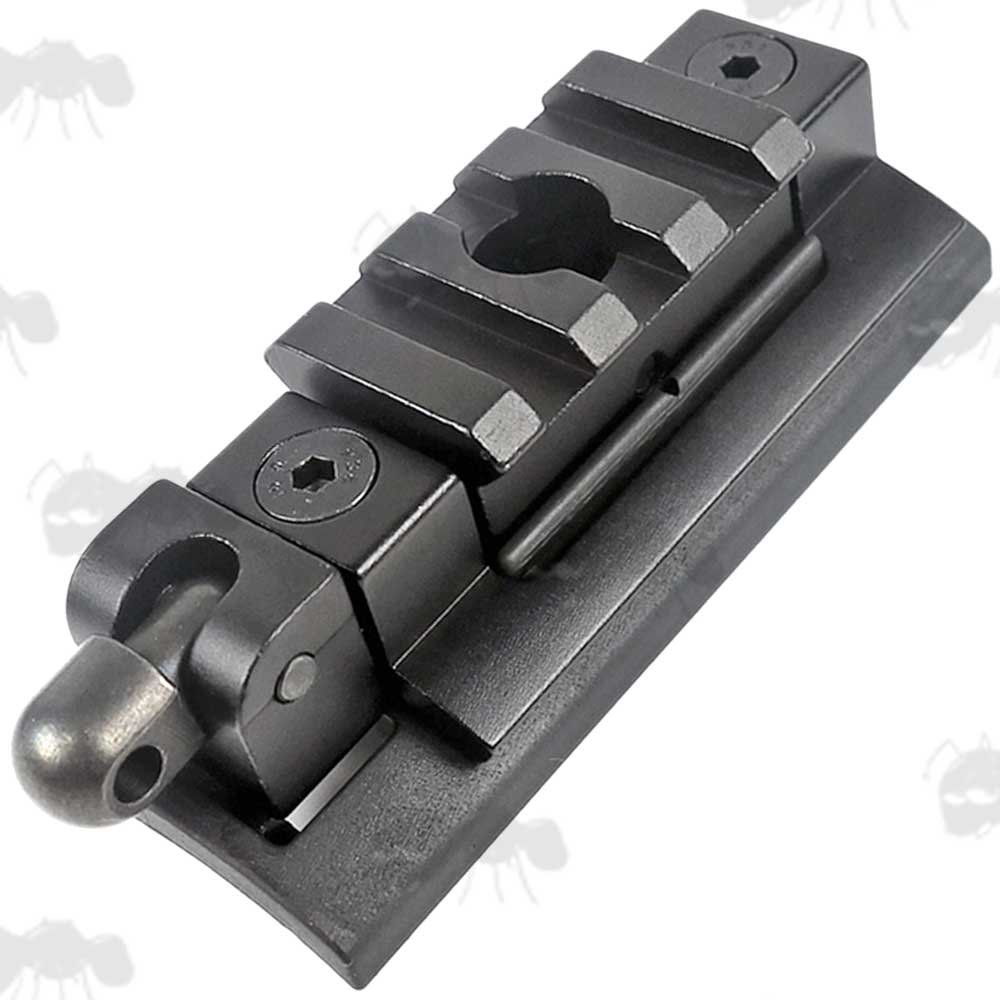

SLING SWIVEL STUD RAIL ADAPTER KIT
Adjustable base for fitting an accessory rail to your sling swivel stud.
ADJUSTABLE BASE QD STUD FITTING RAIL KIT
£19.80p each
Rifle QD swivel / bipod stud to rail adjustable angle adapter, for tapered forend.
Allows for adjustment to line the adapter to the barrel rather than the stock.
With a forward or rear facing pivoting QD sling swivel stud.

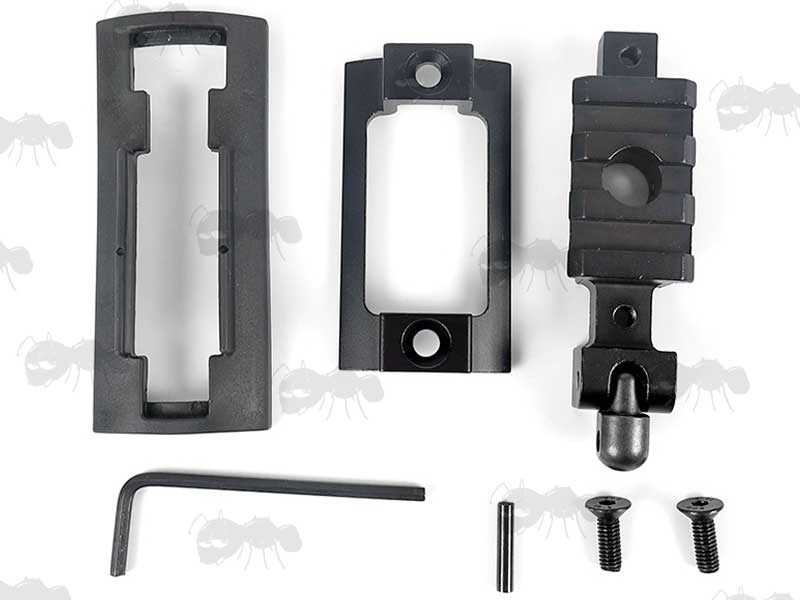

Aluminium rail and clamping inlay with steel fittings.
For most but no all 20mm wide Weaver / Picatinny rail fitting bipods.
Simply adjusting the tension on the front and rear screws, the vertical angle of the rail can be aligned with the gun barrel.
The section to fit over your rifle existing QD stud has an internal diameter of 10mm.
The QD stud pin fitting is 3mm in diameter, but we do not recommend using that, and have added a nut and bolt instead.

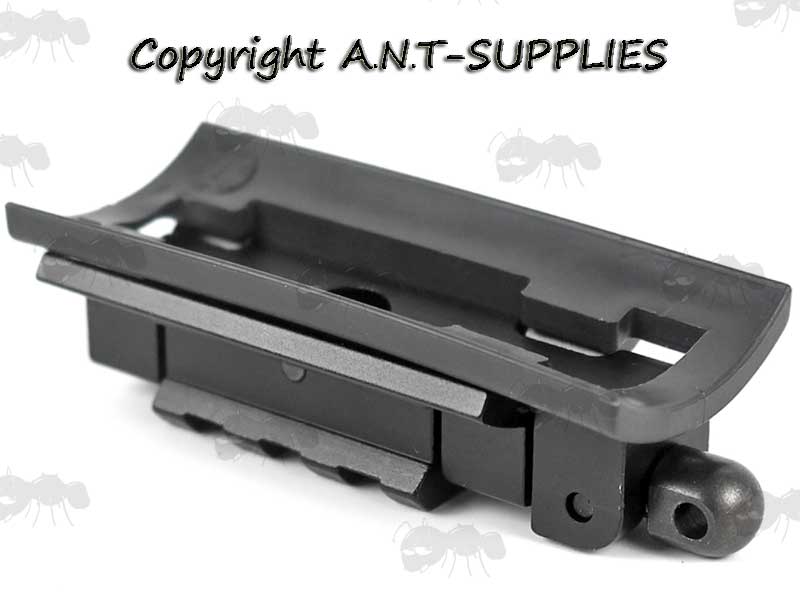

Complete with molded rubber base pad.
Sling stud bipod rail adapter for most 20mm wide Weaver / Picatinny rail fitting bipods.
Can also be used to mount rail fitting accessories, such as lasers or torches.
With a integrated hinged sling QD stud extension, so you don't lose the ability to fit a QD swivel sling.
67mm long overall (QD stud hanging down).
34mm long three slot rail length.
Weighs approx 50 grams.
FITTING GUIDE:
First you will need to ensure suitable padding to protect your rifles forends finish.
Place the centre aperture of the adapter over your existing swivel / bipod QD stud.
Secure with the nut and bolt (and ideally a drop of Loctite to the nut).
Please Note: You will require a 2mm hex key to fit the through bolt (not included).
Then adjusting the two screws, will allow you to line up the adapters rail to the rifle barrel, rather than the forend.
COMPATIBILITY INFORMATION:
They will likely not fit the factory fitted stud on CZ 457 rifles, as CZ usually have Euro spec QD studs for 6mm wide gate swivels with a 3mm diameter bars / pins, yet most swivels are US spec with 8mm wide gates and 3.6mm diameter bars / pins, alternatively you can replace the retaining bar with a smaller diameter bar.
Need the other way around? ~ Weaver / Picatinny Rail to QD Base Stud Adapters.
Also available ~ Weaver / Picatinny Rail Fitting Bipods and Telescopic Bipod Leg Feet.
The through bolt that fits your rifles existing QD sling swivel stud would be at risk of falling out at some angle settings, so we have added an alternative nut and bolt.
Best to add a drop of Loctite or similar, to the nut when installing.
