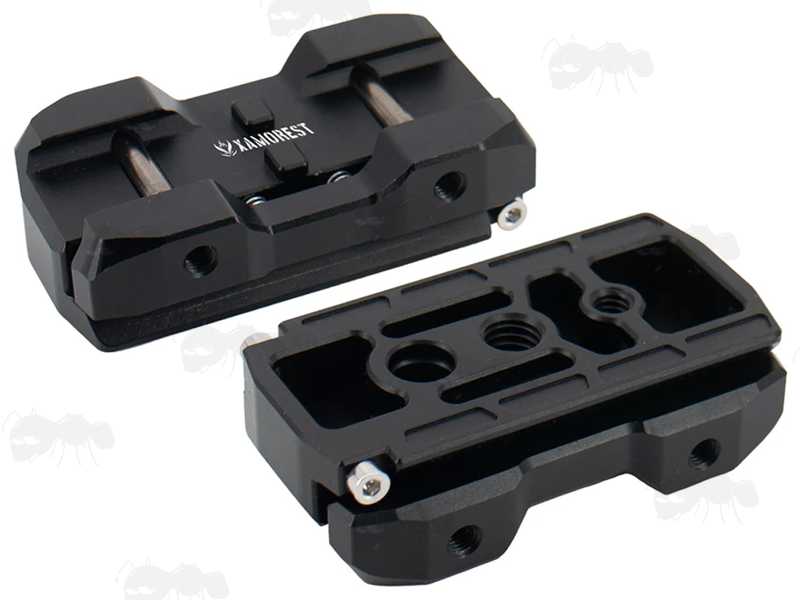

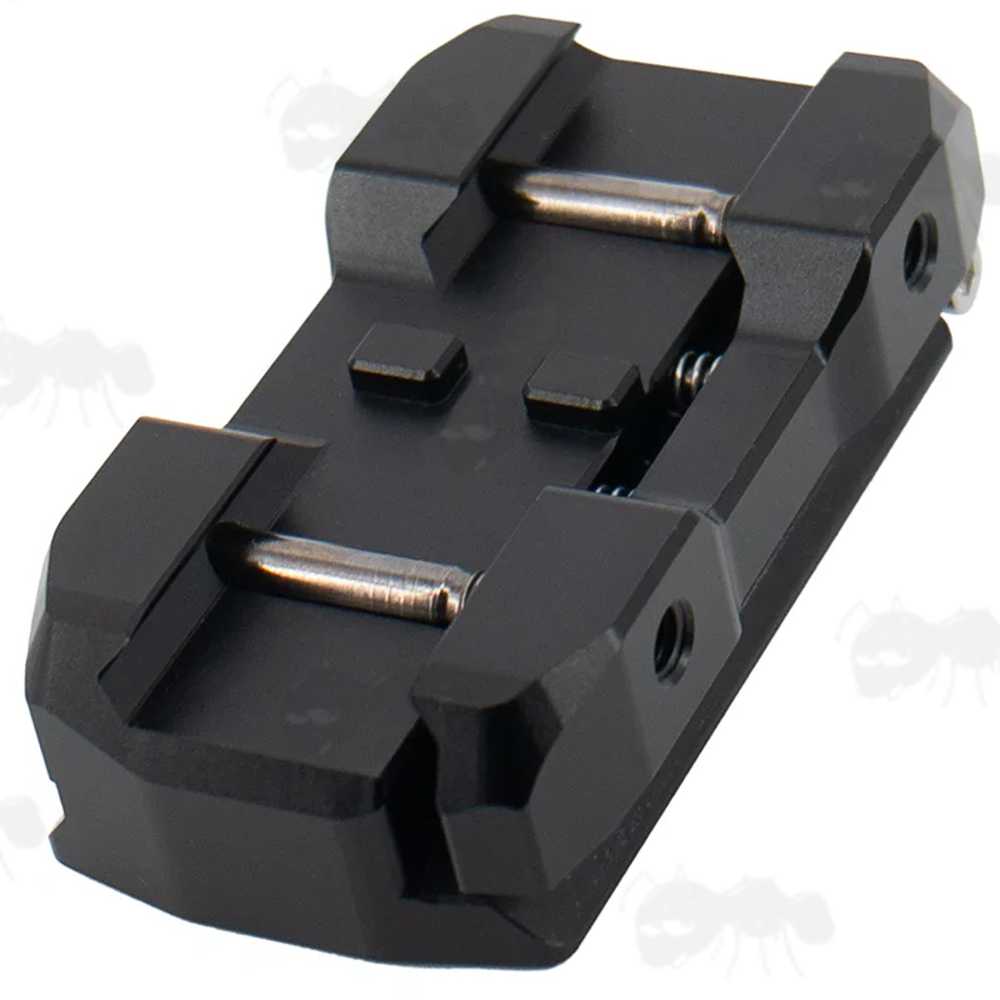

PICATINNY TO ARCA SWISS STYLE ADAPTER

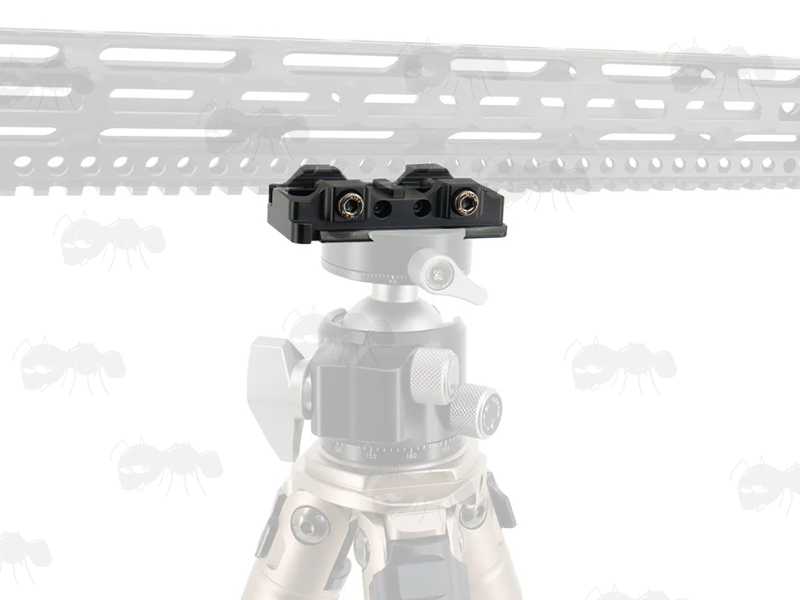

For securing rifles with Picatinny accessory rails to ARCA-Swiss compatible tripods.
TAC RIFLE RAIL TO ARCA SWISS ADAPTER
£20.00p each3 inches / 76mm long.
102 grams.
Picatinny rail adapter to fit tripod heads with ARCA-Swiss large dovetail rails.
Premium black anodised aluminium with superior durability and strength.
Fits ARCA Swiss / RRS (Really Right Stuff) standard wide dovetail fitting tripods and tripod ball and socket heads etc.
For increased stability and precision.
Should fit the majority of Picatinny rails and many Weaver rails.
CNC machined from 6061-T6 aluminium and hard anodised black finish.
The ARCA Swiss sized dovetail side has both 1/4"-20 and 3/8"-16 threaded holes,
that will fit most threaded monopods, bipod and tripods.
As well as the threaded holes, it also offers a 10mm socket to accept push button sling swivels.
Width ~ 38mm.
Thickness ~ 21mm.

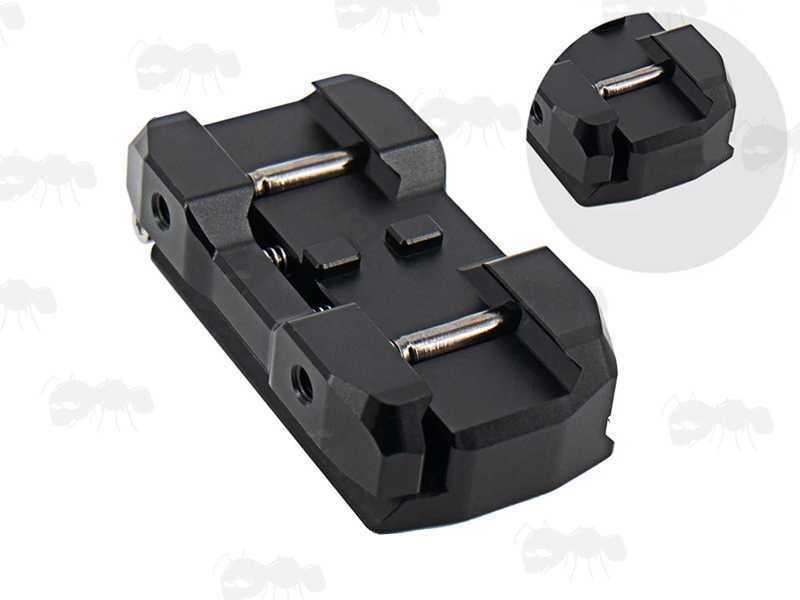

Please Note: with the location lugs and cross bolt clamp fixing design, this adapter needs to be placed onto a Picatinny rail, it can not be slide along the rail and in to place.
ARCA SWISS CLASSIC STANDARD:
A quick release wide dovetail rail system, found on many of the highest quality camera and tripods.
Approx 38mm wide (1.5 inches) with a 45° dovetail.
Also available ~ Quick-Release ARCA-Swiss to Picatinny Rail Adapter.

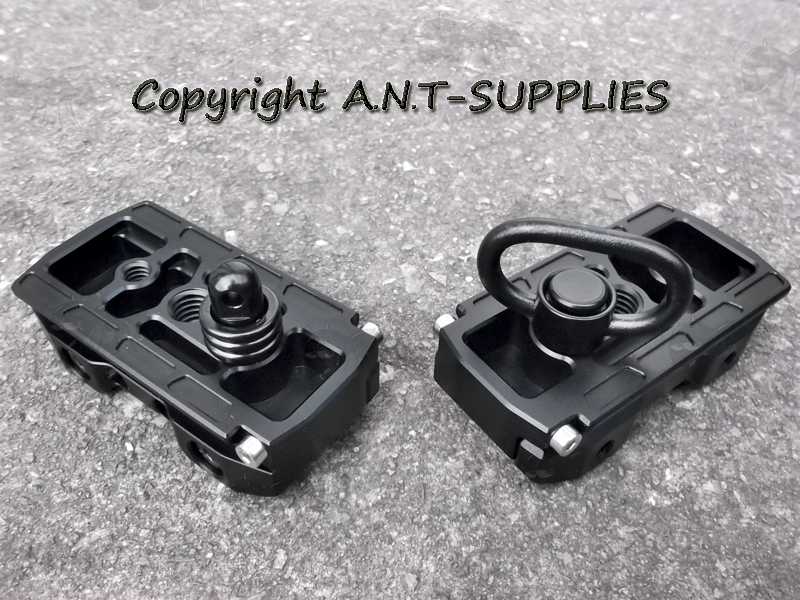

The 10mm socket port allows the fitting of gun slings with QD push button swivels,
or a socket adapter for fitting slings with traditional quick-detach swivels:
