QD SWIVEL BASES FOR SLING SWIVELS AND BIPODS

Sling swivel Quick-Deploy / Release studs.

Long and short wood screw threads for rifle forend and butt stock.

A pilot hole will be needed to prevent the wood from splitting.

Gun Sling Swivels Guide.

Please enable Javascript to view this notice.

An alternative non-Javascript notice is available on the Gun Sling Fittings main page.

QUICK-DETACH SWIVEL BASE STUDS

QD Swivel Base Forend Mini Stud with Machine Screw

MINI MACHINE

5mm long thread

£2.70p each

OPTION A

Pair of Black QD Sling Swivel Bases with Long Machine Threads and Two Nuts

TWO LONG MACHINE

18mm / 0.75 inch long threads

£3.90p per pair

OPTION B

Pair of Black QD Sling Swivel Bases with Long Machine Threads, Two Nuts and Two White Spacer Washers

TWO LONG MACHINE
WITH WASHERS

18mm / 0.75 inch long threads

£4.20p per pair

OPTION C

Pair of QD Stud Sling Swivel Bases with Wood Threads

SHORT AND LONG WOOD

14mm / 0.5 inch and 18mm / 0.75 inch long threads

£3.00p per pair

OPTION D

Pair of QD Stud Sling Swivel Bases with Wood Threads and White Washers

SHORT AND LONG WOOD WITH WASHERS

14mm / 0.5 inch and 18mm / 0.75 inch long threads

£3.30p per pair

OPTION E

Pair of QD Stud Sling Swivel Bases with Machine and Wood Threads

LONG WOOD AND MACHINE

£3.30p per pair

OPTION F

Pair of QD Stud Sling Swivel Bases with Machine and Wood Threads and White Washers

LONG WOOD AND MACHINE WITH WASHERS

£3.60p per pair

OPTION G

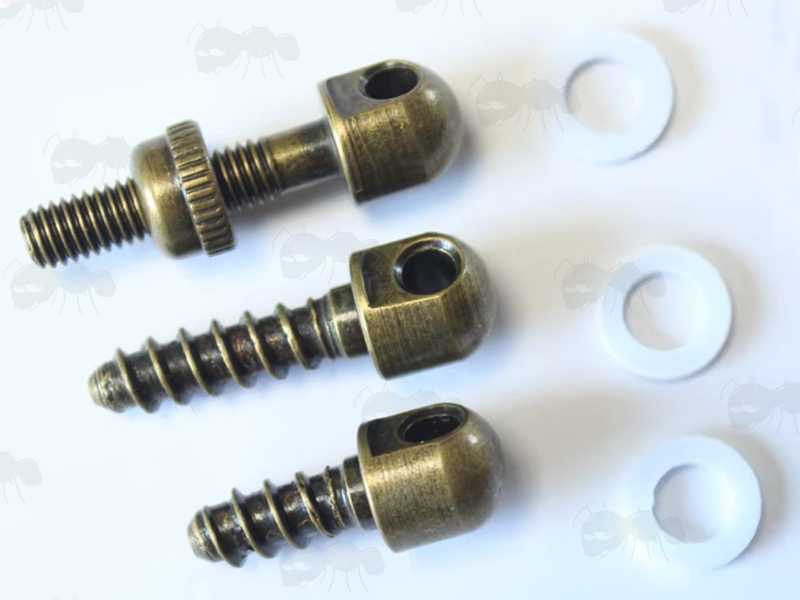

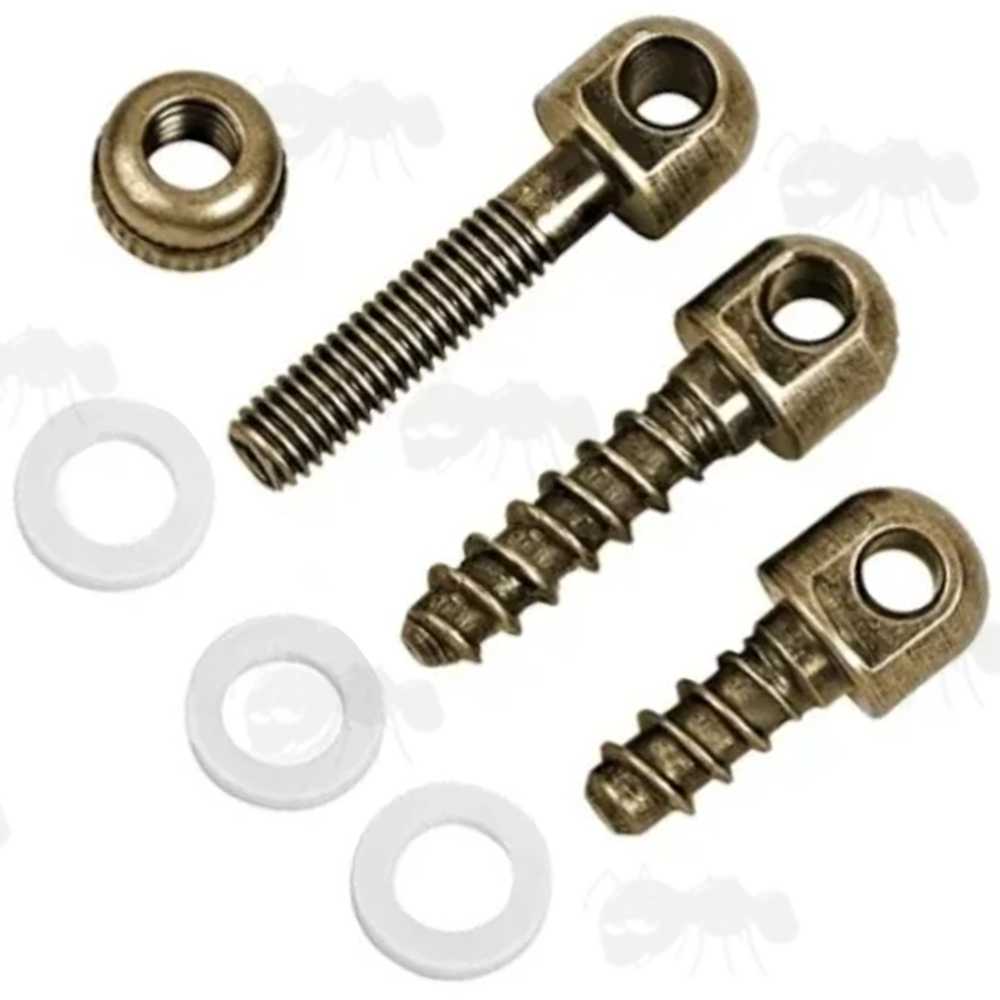

Set of Three Black Metal QD Gun Sling Swivel Bases with Wood and Machine Threads

LONG MACHINE, LONG AND SHORT WOOD
WITH WASHERS

£4.20p per set

OPTION H

MULTI-BUY OFFER

Buy three or more of any mix of the options for 30% OFF

Condition: New

Range of QD screw studs, needed for fitting Quick-Detach gun sling swivels and
swivel stud fitting rifle bipods.

Usually the short wood stud is for forend and long wood stud for the buttstock.

The machine stud is also for the forend, where they may replace the factory fitted non-detachable stud.

The mini and long machine screw studs are approx 4.7mm diameter,
imperial 10/32 threads (10 gauge/32 threads per inch).

The wood screws are 12 gauge.

With approx 3.75mm holes for bipods and QD sling swivel posts.

Single Wood Thread QD Studs and Machine Thread QD Studs are also available,
as well as with Quick-Release Sling Swivels at a reduced price.

The QD Stud Washers are also available separately.

The mini stud (5mm long thread) should fit many lever action rifles with forend band, and a range of shotgun magazine caps, for fitting a sling QD swivel:: C. Sharps Arms Co. 1863 Sharps Carbine, Sporting Rifles #1, #3.; Marlin 39M, 1894M.; Maverick Arms Model 88 Shotgun.; Mossberg 472 Deerslayer, 500 Series Shotgun mag caps and bayonet lugs (including the Mossberg Hushpower .410 and Mossberg 500 Pump 20 Gauge Hushpower).; New Haven (Mossberg) Pump 600 Series.; Savage 30 Slug, 30 D, 30 Combination, 30 Field Grade.; Western Field 72, 79.
