QD SLING SWIVELS BASE SOCKET PORT KIT
£6.00p per kit or£9.00p for two kits

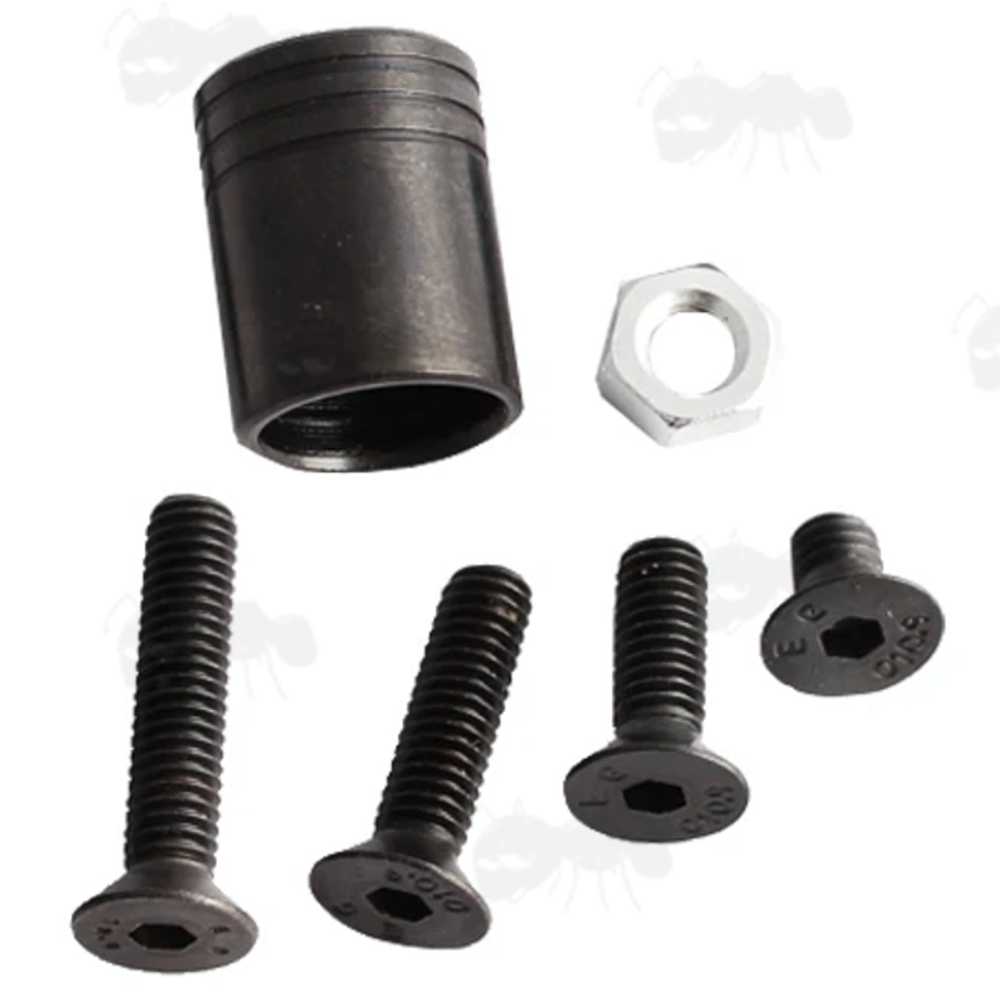

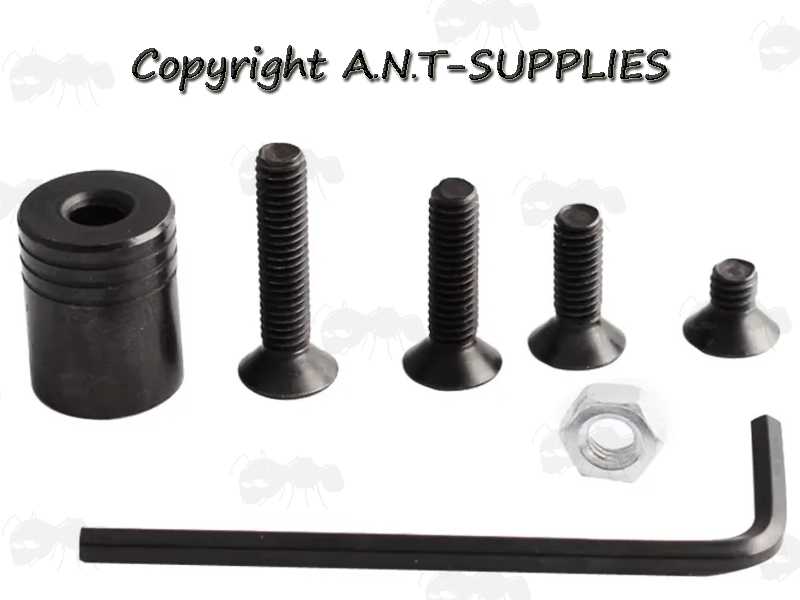

QD swivel port socket base fitting kit.
Complete with four screws with nut, to offer a choice of length for best fit.
Thread lengths 7mm, 13mm, 17mm, and 21.5mm.
Thread type ~ M4.
Blued steel socket with a 10mm internal diameter.
Socket overall length ~ 15.5mm.
Socket external diameter ~ 12mm.
Kit weighs ~ 14 grams.
If to be flush mounted you would need a suitable hole of approx ½" to ⅝ deep by ½" wide.
The internal wall of the socket is grooved to accept the spring-loaded ball bearings found in push button QD swivels.
Then coat the hole with epoxy resin and push in the socket port, the grooves help anchor in the resin, plus a hole to allow it to be screwed in for the ultimate hold.
Then offers a flush finish when your sling and swivels are removed.

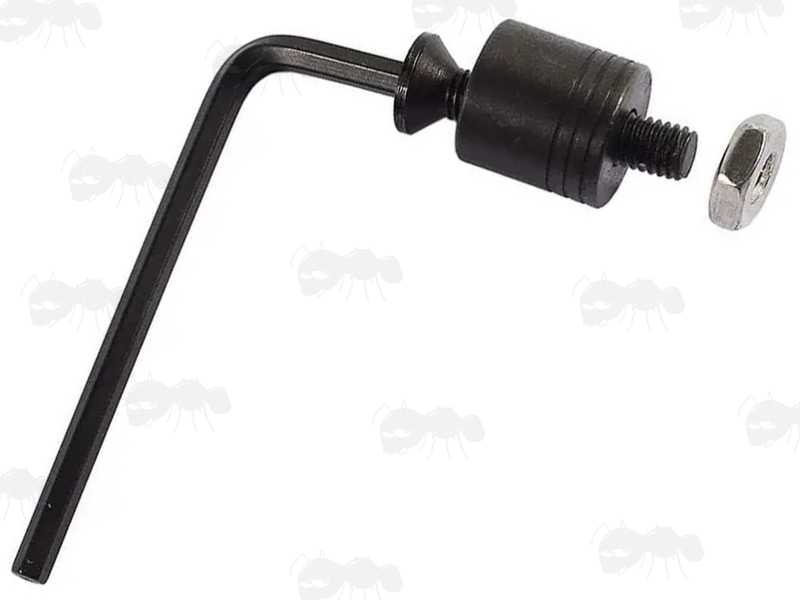

With the provided nut, they are also suitable for surface mounting.
Also available ~ 10mm Socket Flush Fit Swivels and Tac Rifle QD Button Swivels.

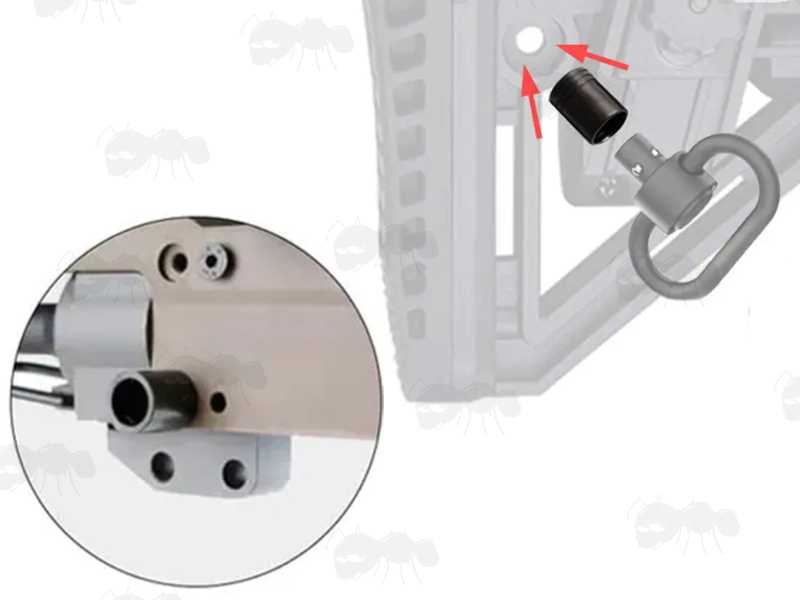

CAN BE FLUSH MOUNTED WHERE ENOUGH DEPTH IS AVAILABLE, OR AN EXISTING HOLE IS PRESENT OR CAN BE SURFACE MOUNTED:
