INFIRAY THERMAL IMAGING RIFLE SCOPE

AVAILABLE VIA SPECIAL ORDER

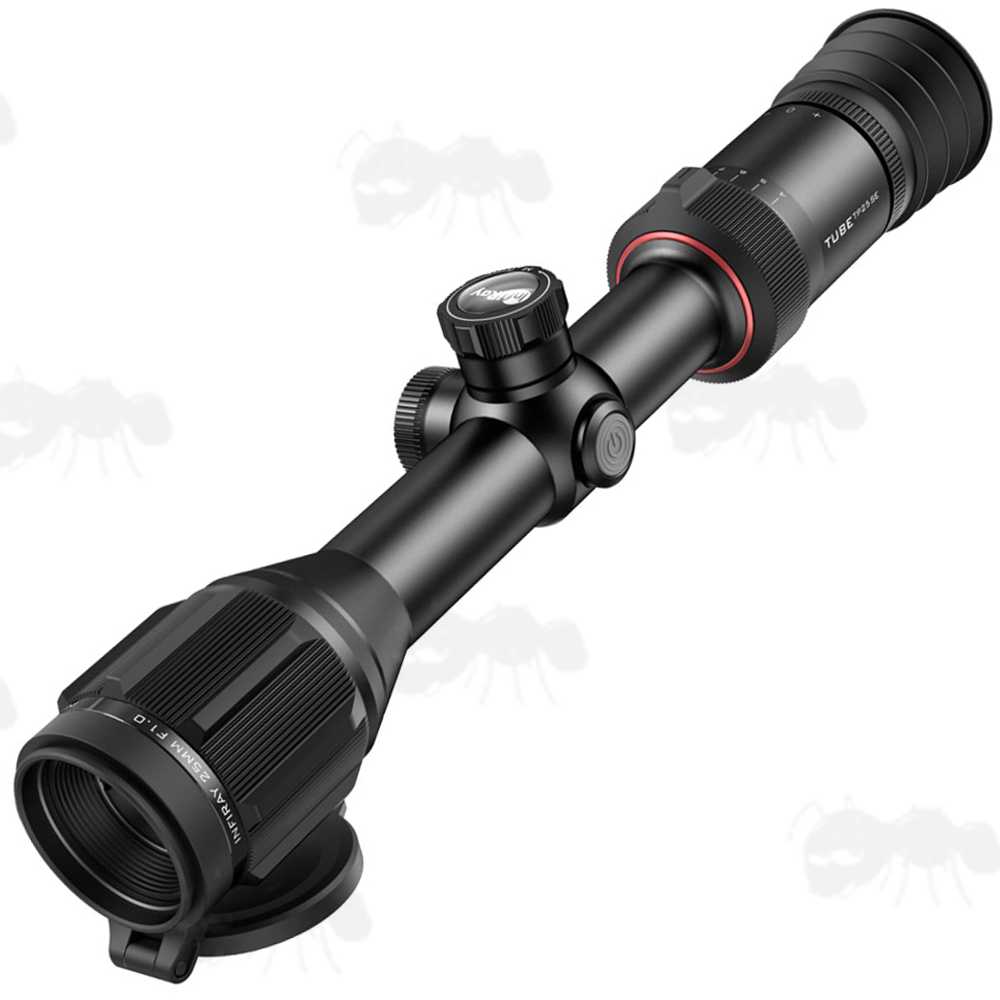

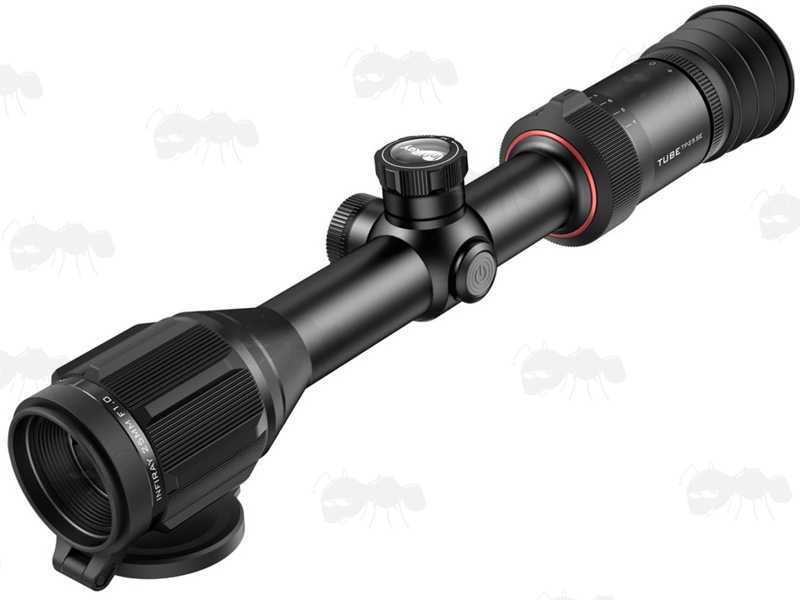

Thermal imaging rifle scope from Infiray.
TUBE SE retains most of the highly recognized features of TUBE series in a surprisingly compact body with a lighter weight of only 750g.
It also adopts a zoom ring to adjust magnification, a Bluetooth LRF to provide precise distance measurement and a controller instead of buttons.
TUBE SE is sure to bring you an all-round easier experience.
12um Sensor with NETD ≤25mK:
TUBE SE is equipped with the 12um sensor with NETD ≤25mK, which is lighter, lower power consumption, ensures perfect detailed recognition even in the hardest weather conditions when thermal contrast is low.
Easier to Carry:
TUBE SE has a body that only weighs 750g which is 28% less compared to the normal 1kg thermal riflescope.
Easier to Use Zoom Ring:
TUBE SE adopts a zoom ring to adjusting magnification which is consistent with the using habit of the day scope.
The zoom ring is made of silicone material, which is soft and comfortable, easy to twist and anti-slip.
Controller Controls Over 90% Functions:
Over 90% functions can be completed by the controller of TUBE SE, the operation is simplified and to bring your more convenience during the night.
Easier to Shoot Bluetooth LRF:
TUBE SE is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.
8hrs Working time:
The working time of TUBE SE is up to 8 hours to keep your hunting going all night, so you don't need to take the power pack and extra charging accessories.
Built-in Mic:
TUBE SE is equipped with a MIC function, therefore customers can record the voice when recording.
Model | TP25 |
Magnification | 4 |
Objective Lens | 25mm |
Battery | Built-in 18650 battery-3350mAh |
Weight | 26.46oz / 750g |
NETD, mk | 30 |
Type | Vox |
Resolution | 256 x 192 |
Pixel Size | 12 |
Frame Rate | 50 |
Field of View | 7.0 x 5.0 |
Field of View (Liner) | 12.3 x 8.6 |
Dimensions (mm) | 310 x 70 x 70 |
Dimensions (in) | 12.2 x 2.76 x 2.76 |
Thermal Sensor | 256 x 192 12μ |
Detection Range | 1300 |
Eye Relief | 50 |
Exit Pupil Diameter | 6 |
Dipoter | -5~+4 |
Display Type | AMOLED |
Display Resolution | 1536 x 1080 |
Max Operating Time | 9m |
External Power Supply | 5V (Type C) |
WiFi | YES |
Mic | YES |
Bluetooth | YES |
Memory Card Capacity | 32 |
IP Rating | IP67 |
Max Recoil Power | 6000 |
Max Operating Temperature | -20 ~ +50 |
Also available ~ Night Vision Rifle Scope.
ALSO AVAILABLE VIA SPECIAL REQUEST:
InfiRay Thermal Imaging Monocular IRIS Series - IL19
InfiRay Thermal Imaging Monocular IRIS Series - IL35
