MUZZLE BORE SIGHTERS
Rifle barrel muzzle fitting laser boresighters.
RIFLE BARREL LASER BORESIGHTER
.17 / .170 / .17HMR£14.40p each
.177 / 4.5mm£14.40p each
SOLD OUT
.22LR£14.40p each
.223 REM£14.40p each
.380 / 7.62mm£14.40p each
9mm / .357MAG / 10mm£14.40p each
SOLD OUT

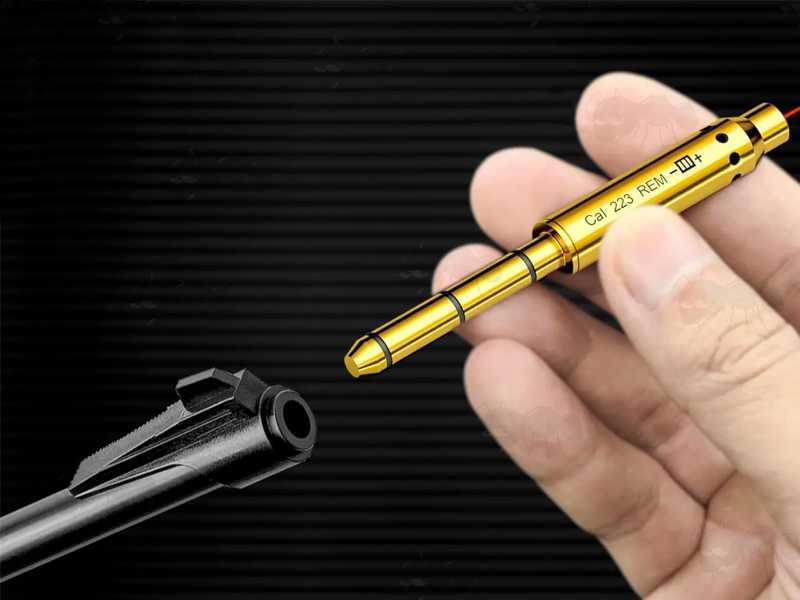

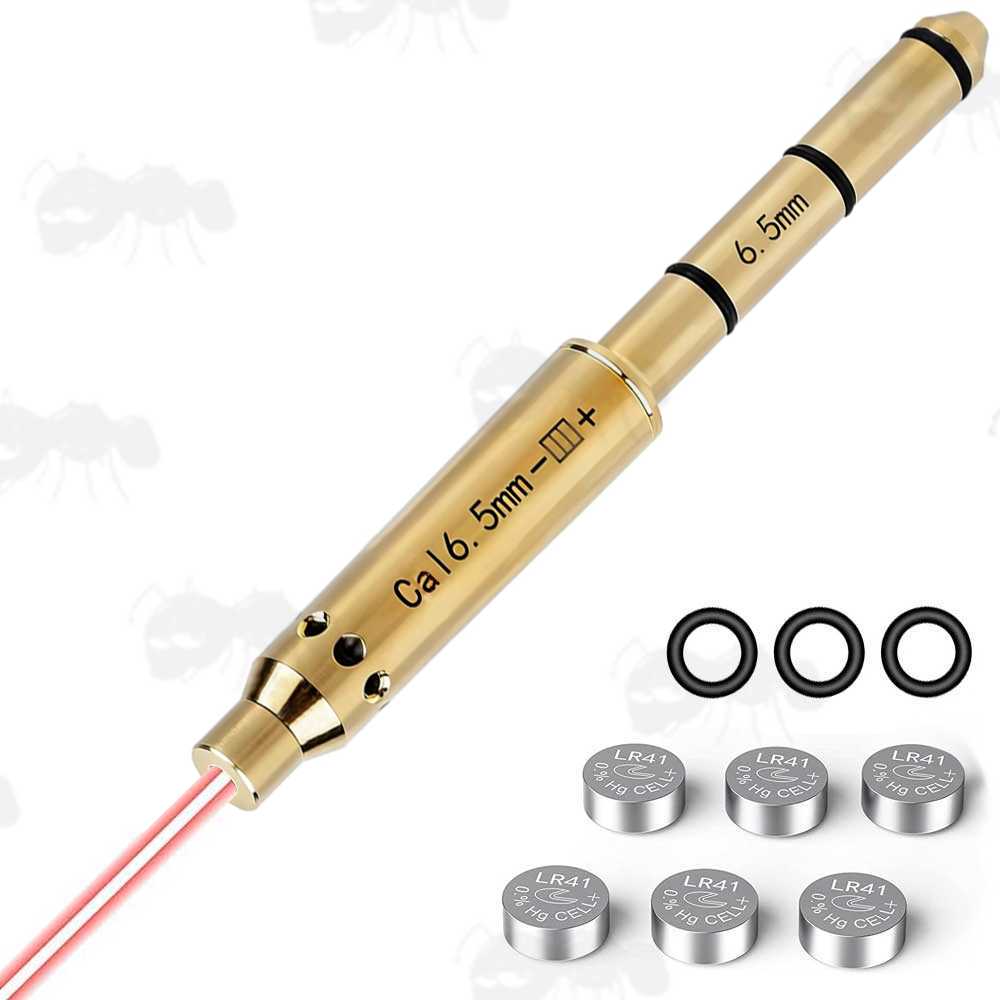

Arbor anchored bore sight, that fits down the muzzle of your gun to zero your sight / scope.
It provides a laser dot from the center of your barrel.
Uses an arbor to hold the bore sight in place when inserted into the barrel.
Should still be okay to use even when a flash suppressor or muzzle brake is fitted.

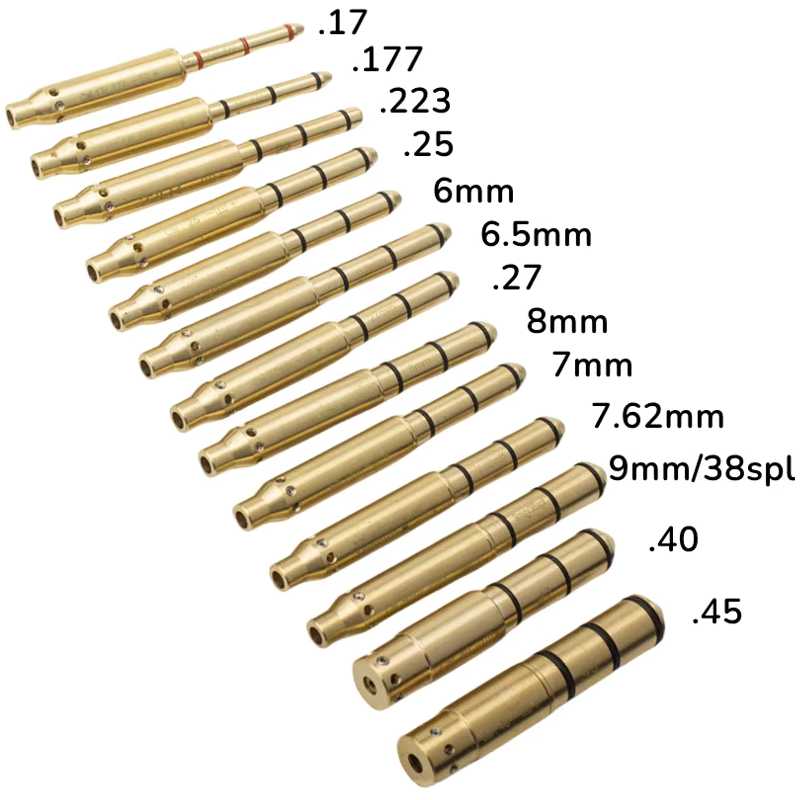

Choose from a range of barrel muzzle fitting laser bore sighters for rifles and pistols:

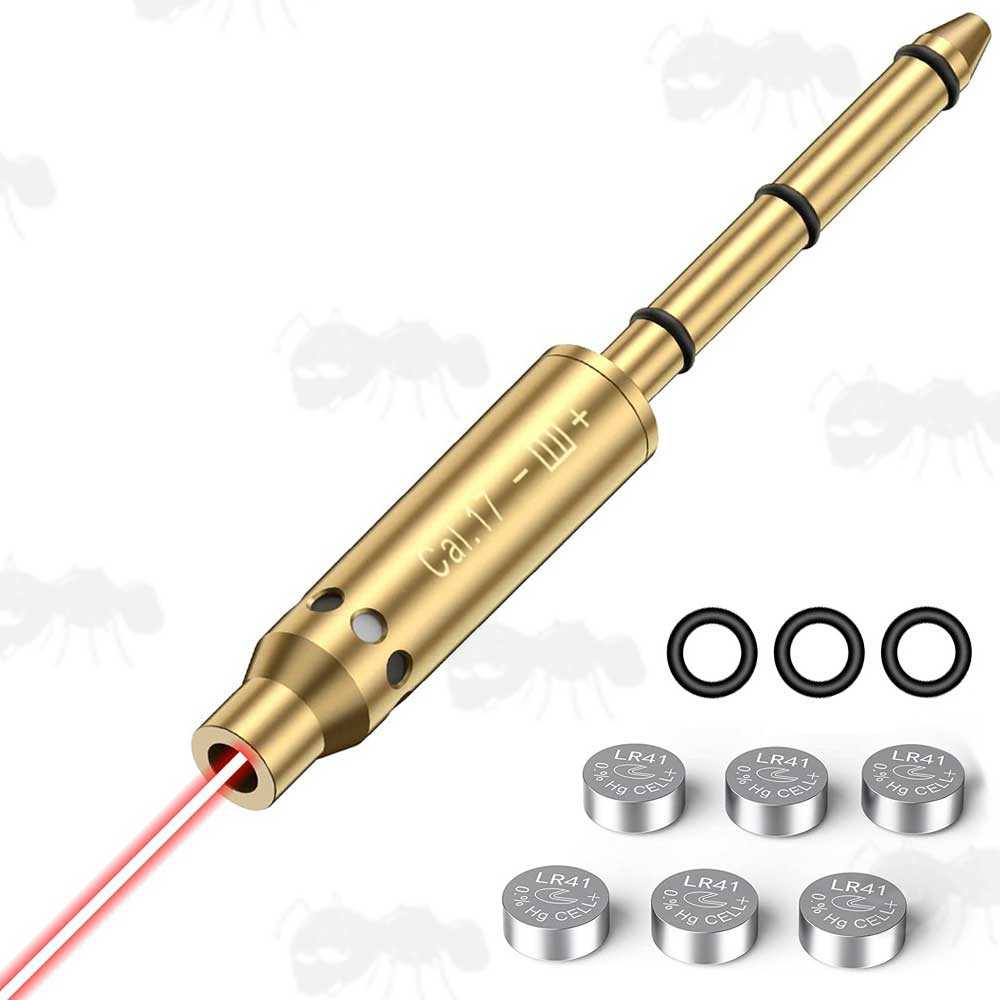

.17 ~ suitable for .17, .17 HMR，.170 caliber.
.177 ~ suitable for 4.5mm / .177 caliber.

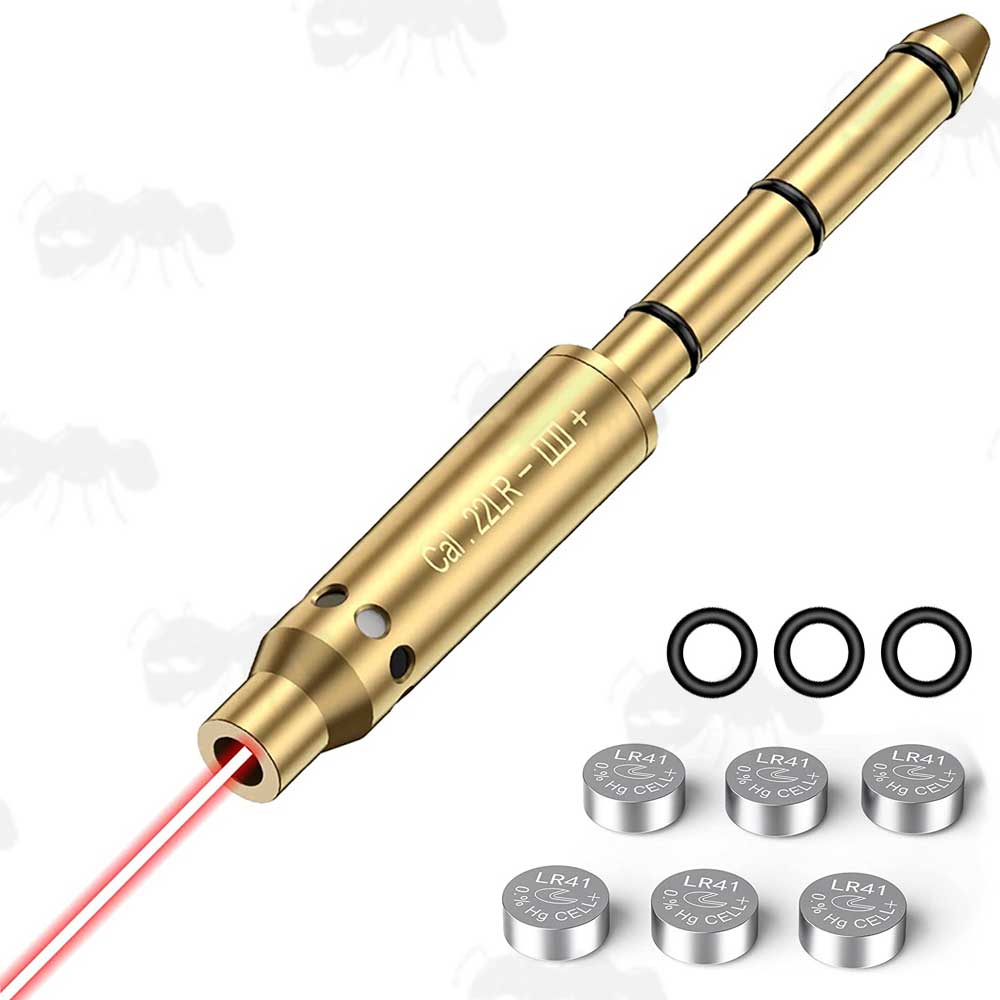

.22 ~ suitable for 5.5mm /.22, .22LR (Long Rifle) caliber.

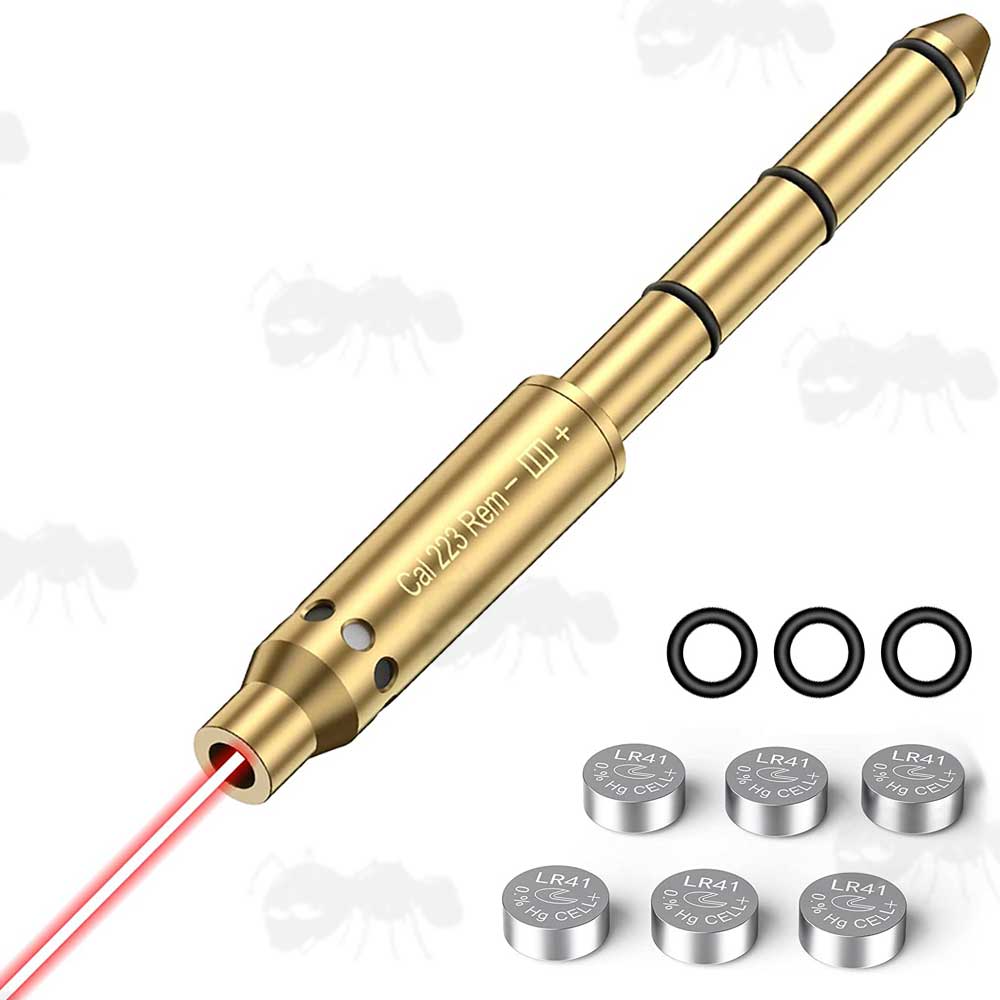

.223 ~ suitable for 5.56mm, .223Rem, 22-250Rem caliber.

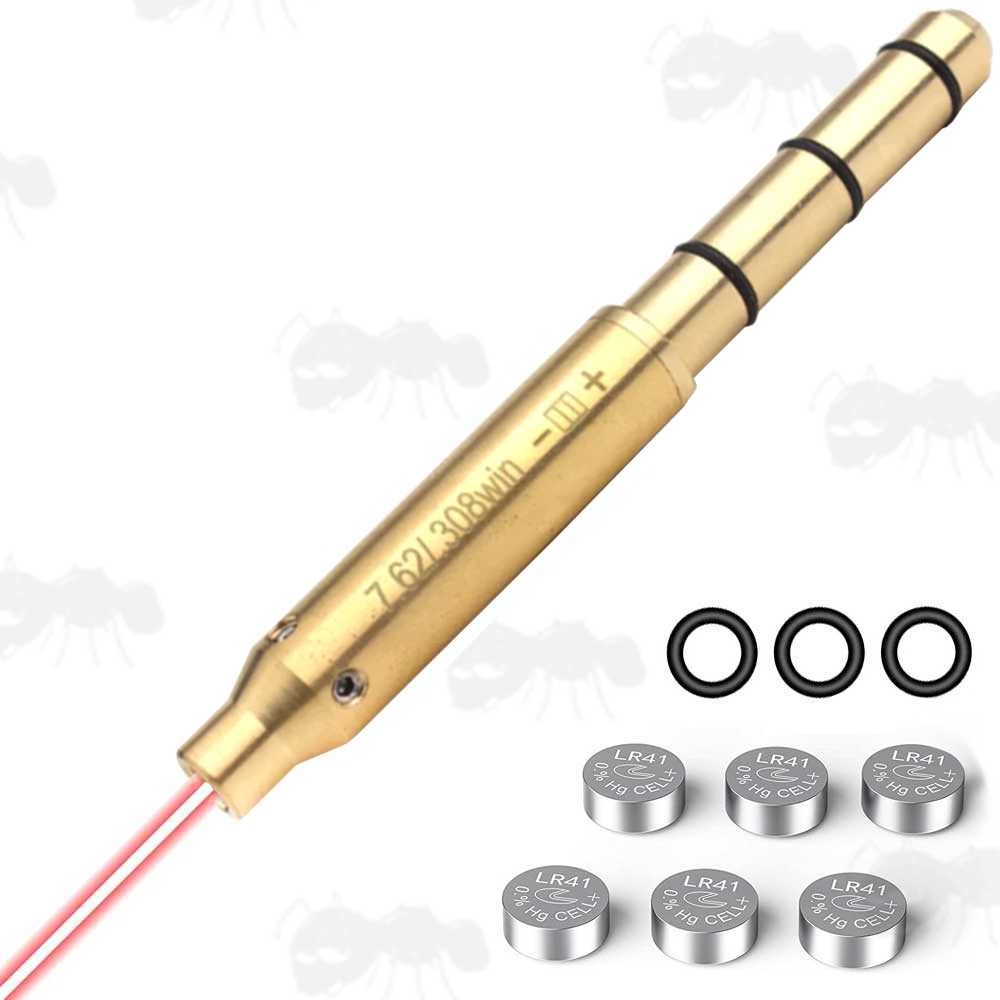

.308 ~ suitable for 7.62mm, .308Win, 30-30, 30-06, .300ACC Blackout, .308 caliber.

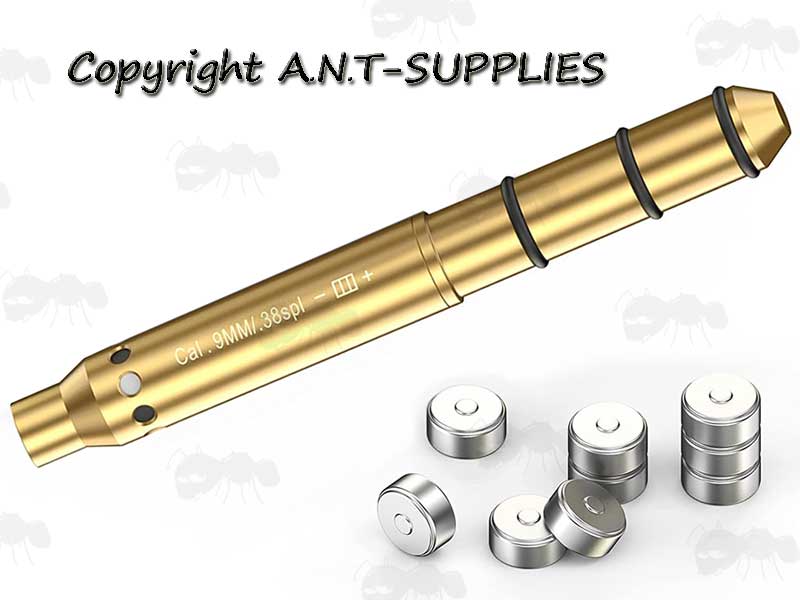

9mm ~ suitable for 9mm, .357 Magnum, .38 Special, .380 ACP (Automatic Colt Pistol) caliber.
Power ~ Class IIIA laser <1mW.
Wavelength ~ 625-650nm.
Minimum range for sighting ~ 15 yards.
Maximum range for sighting ~ 100 yards.
Optimum range for sighting ~ 25 yards.
Dot size ~ 1.5 @ 100 yards.

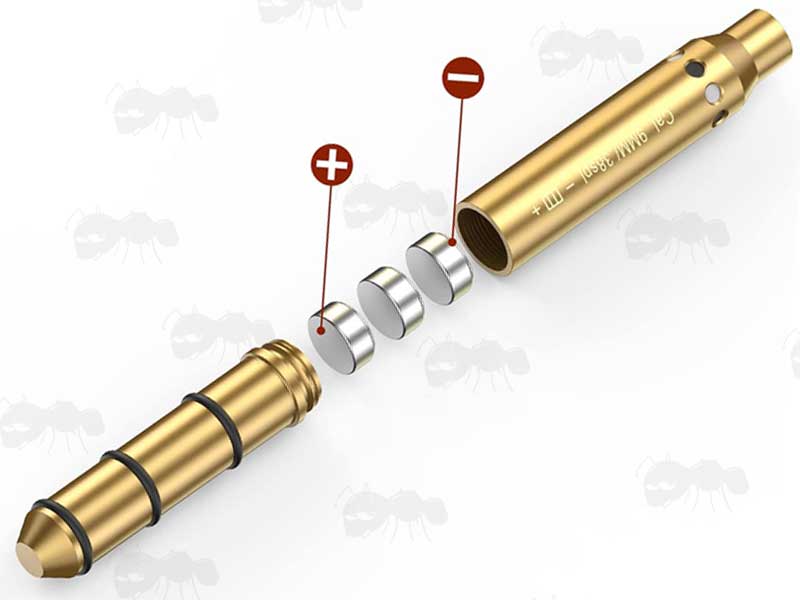

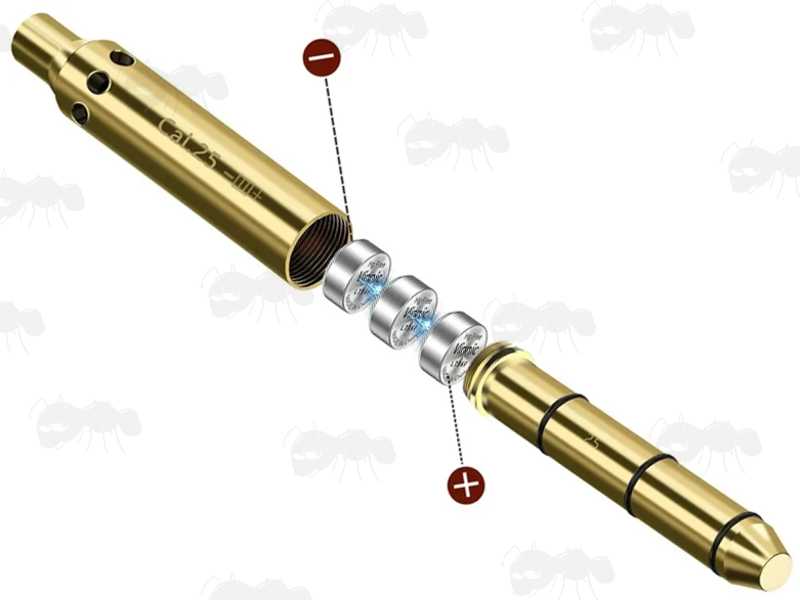

Unscrew the laser boresighter body to remove or install batteries that is the on / off function.
Remove the batteries for long term storage.
Powered by button cell batteries, batteries NOT included.
Made form high quality machined brass, with caliber and battery direction markings.
Comes with a spare set of 3 rubber o-rings.
Requires 3 x L736F / AG3 batteries.
Designed to save ammo by giving a rough zero that should get you "on paper".
Please note they will produce a red dot, and not a visible red beam under most conditions.
Designed only for the barrel size marked on the boresighter casing.
Button cell batteries are required but no included.
Make sure you use the right amount of batteries to make contact.

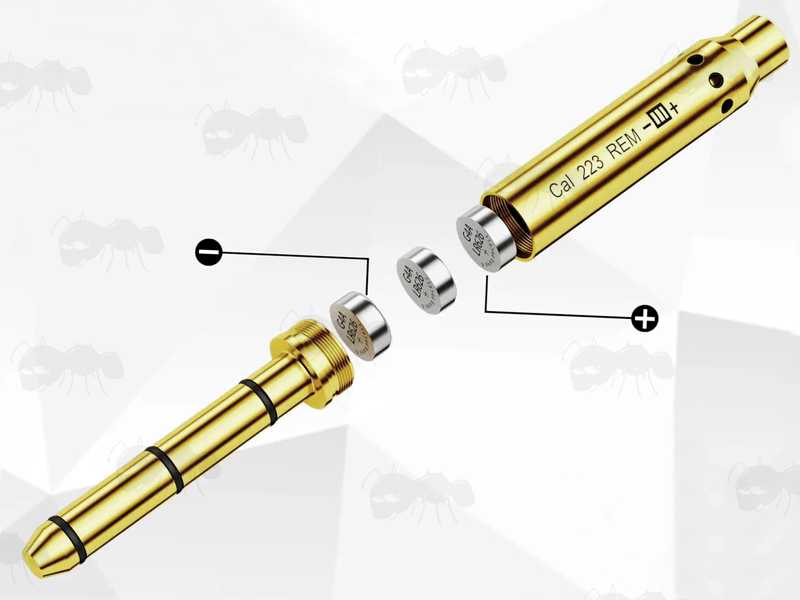

Please Note: they go in negative end first.
If no power, use a little oil and a clean rag to clean the threads.
L736F = AG3 / G3 / G3A / GP92A / GP192 / L736 / LR41 / LR736 / RW87 / V36A / V3GA / 392A / 92A / 192.
By special request we can also supply a similar boresighter especially threaded for archery arrows / crossbow bolts.
Also available ~ Rifle Cartridge Laser Bore Sighters.

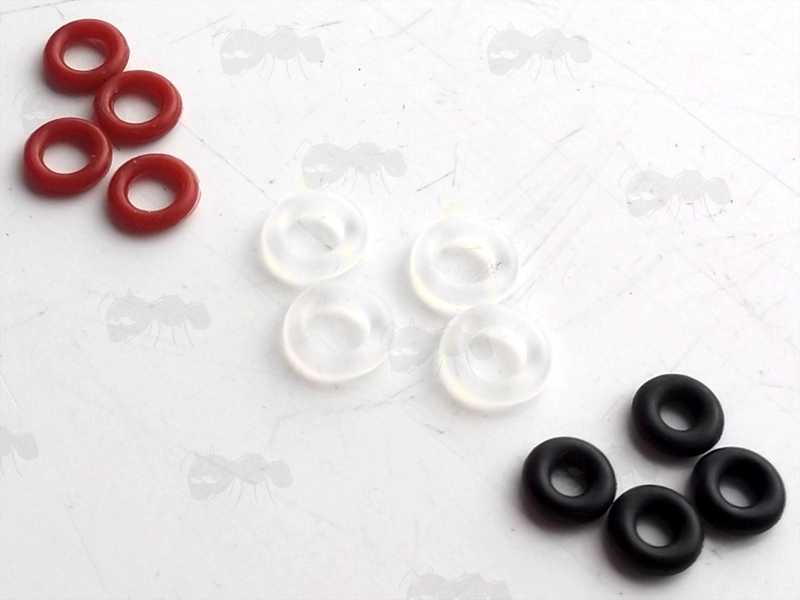

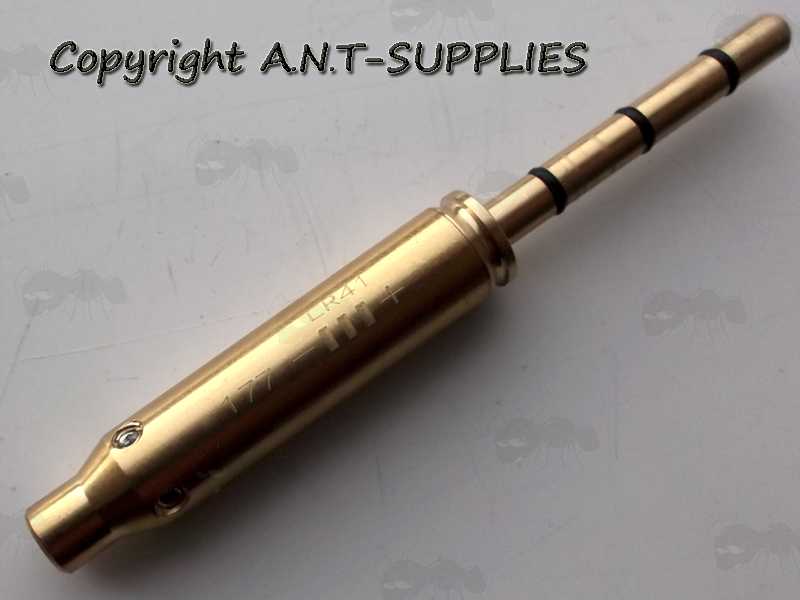

The .177 model includes 12 spares o-rings,
(4x Red 4.5x1mm, 4x Black 4x1.2mm and 4x White 5x1.2mm):

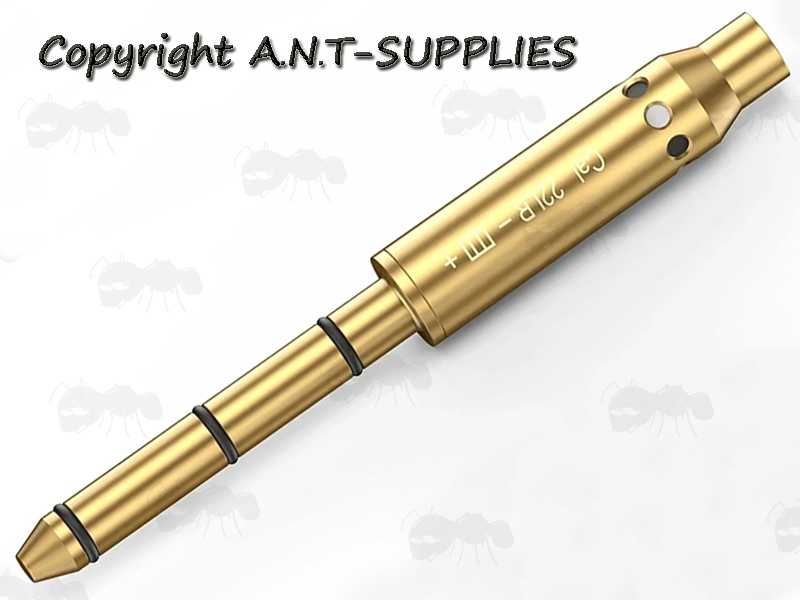

.22 CALIBRE:
Includes 12 spare o-rings: 4x White 5x1mm, 4x Black 5.5x1mm and 4x Red 5x1.2mm.
.223 CALIBRE:
.25 CALIBRE:
7mm:

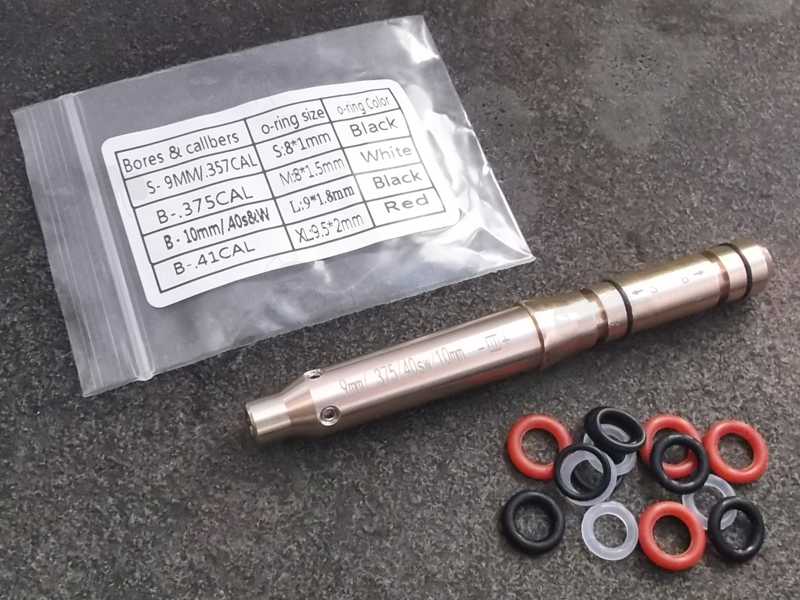

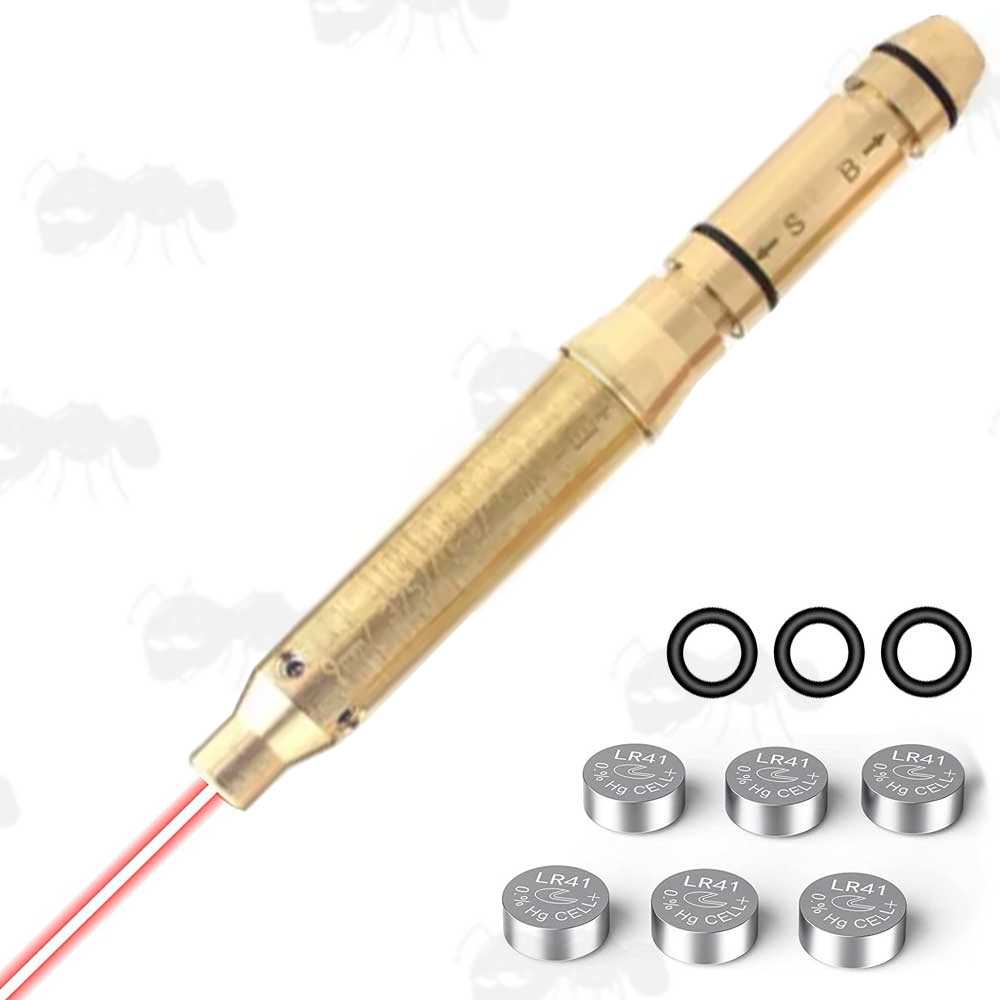

9mm / .357 - .375 - 10mm / .40S&W - .41 CALIBRE:
O-Rings: 4x Black 8x1mm, 4x White 8x1.5mm, 4x Black 9x1.8mm and 4x Red 9.5x2mm:
