LPVO COMPACT TELESCOPIC SCOPE
Suitable for rifles, airguns and airsoft guns.
An alternative no Javascript notice is available on
the Optics / Scopes / Sights main page.

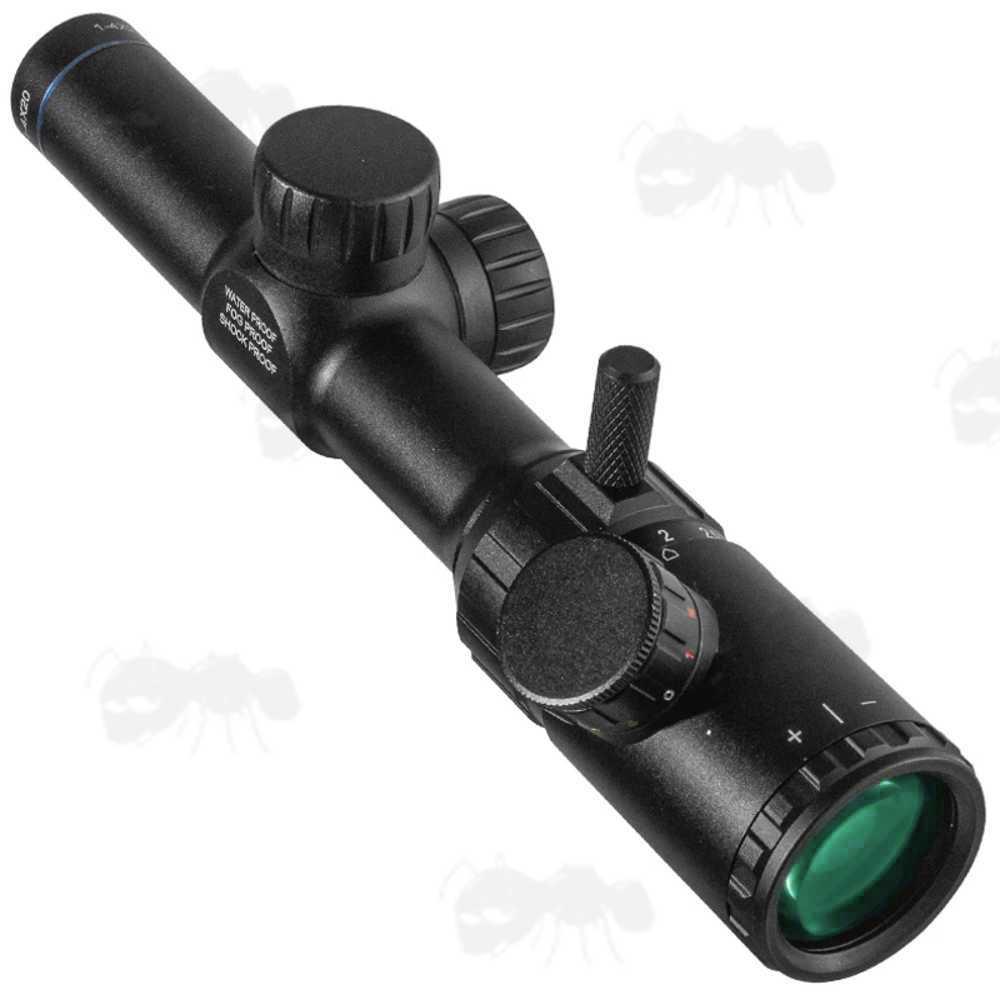

1-4x20 ILLUMINATED COMPACT SCOPE
£60.00p each
SOLD OUT, PRICE REDUCED AS AVAILABLE WITHOUT MOUNTS Condition: New, in box.

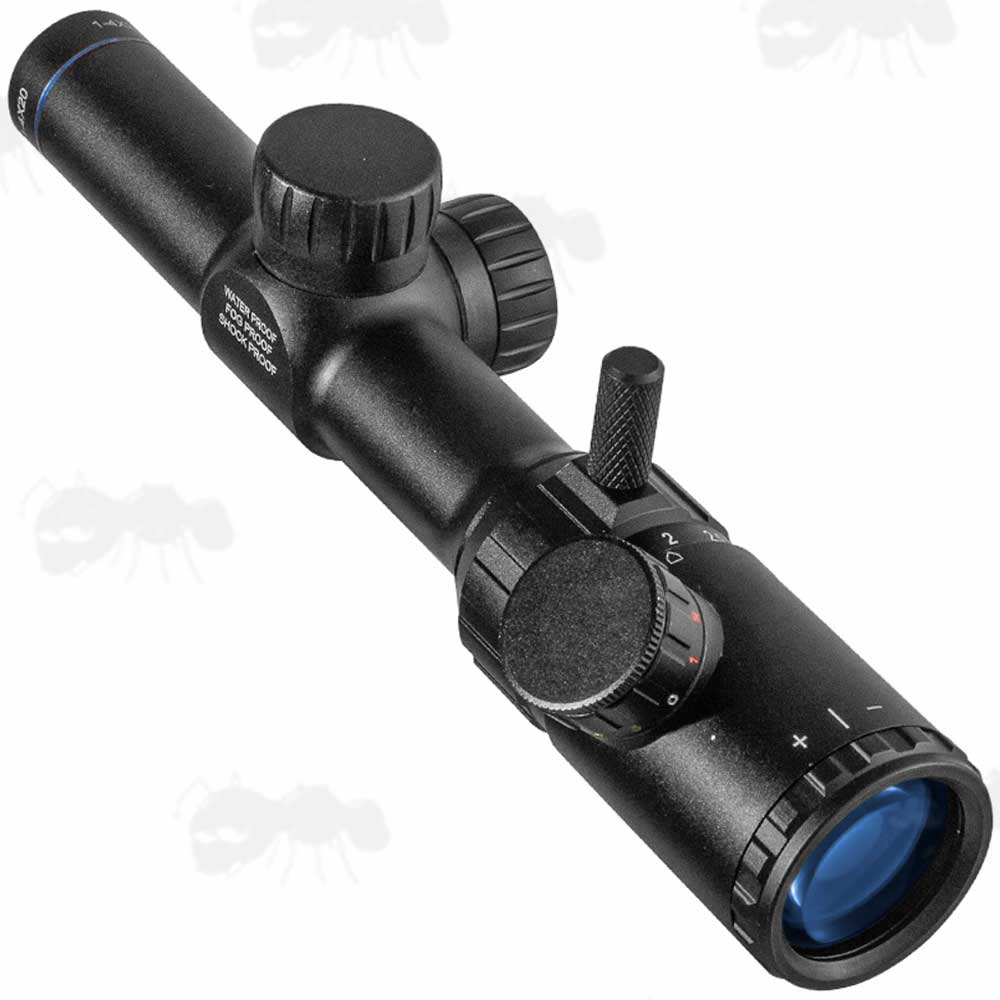

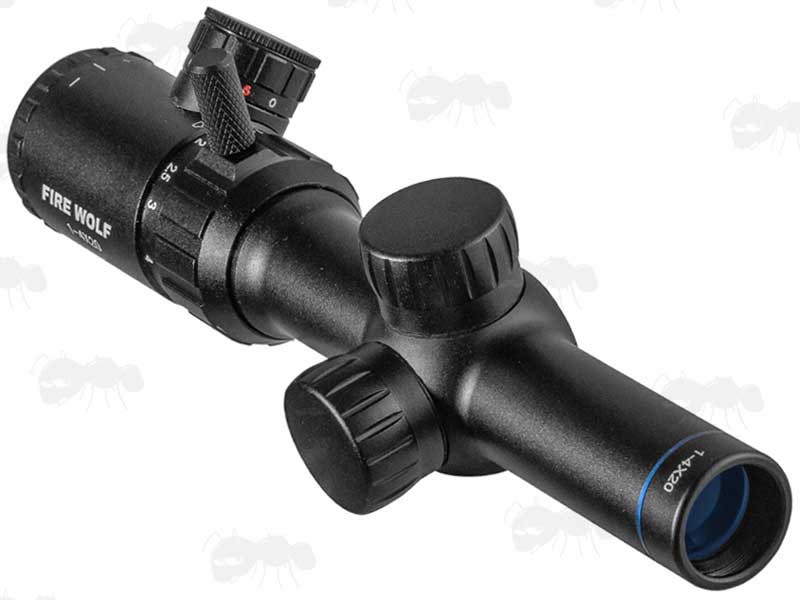

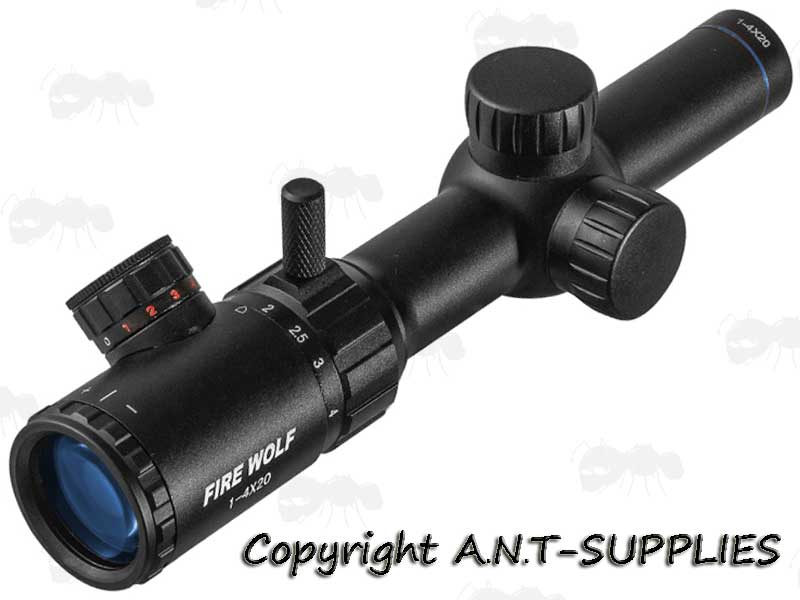

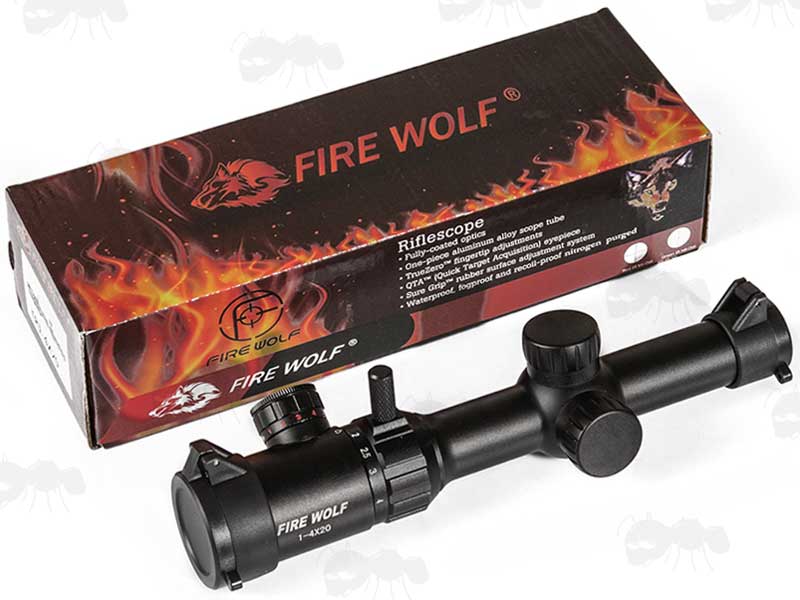

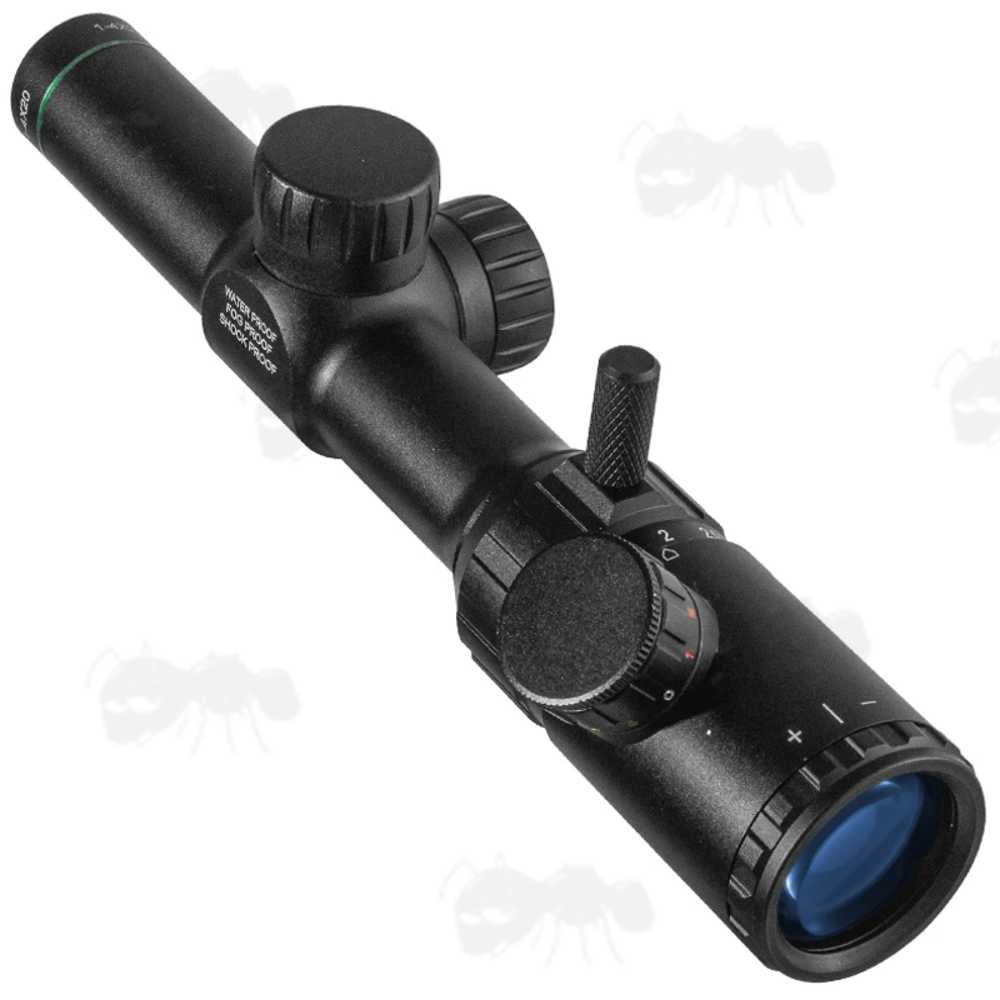

Compact 1-4x20EG red and green illuminated scope.
LPVO ~ Low Powered Variable Optic scope.

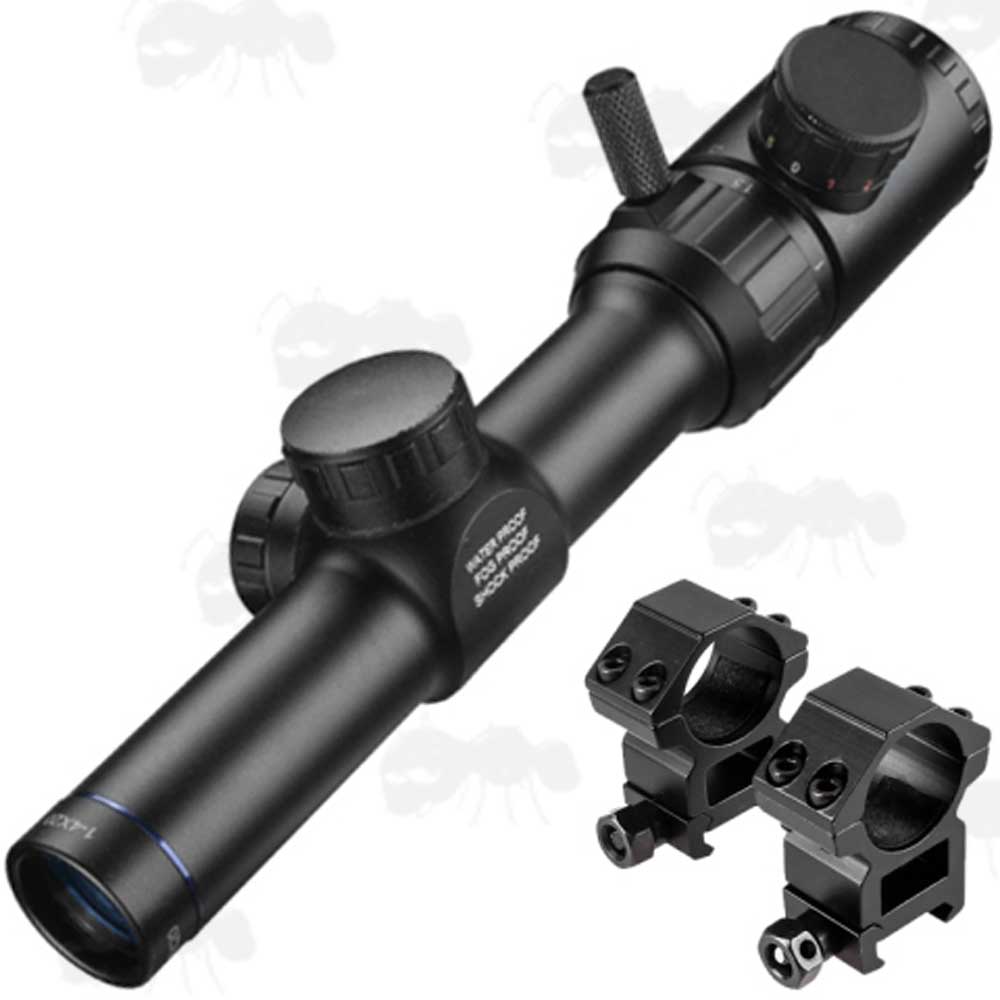

Mounts are not included, we would usually recommend high-profile models.
Nitrogen purged, fog-proof.

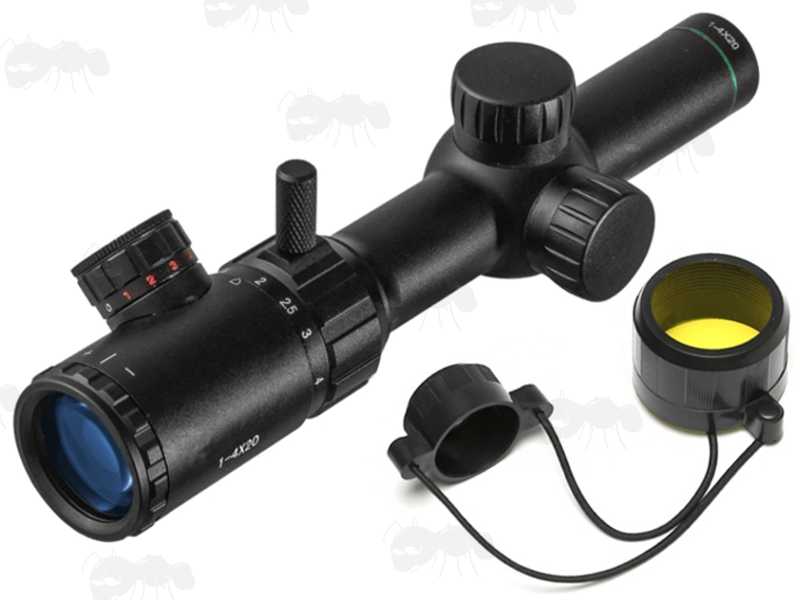

Includes a pair of black flip-up protective lens caps.

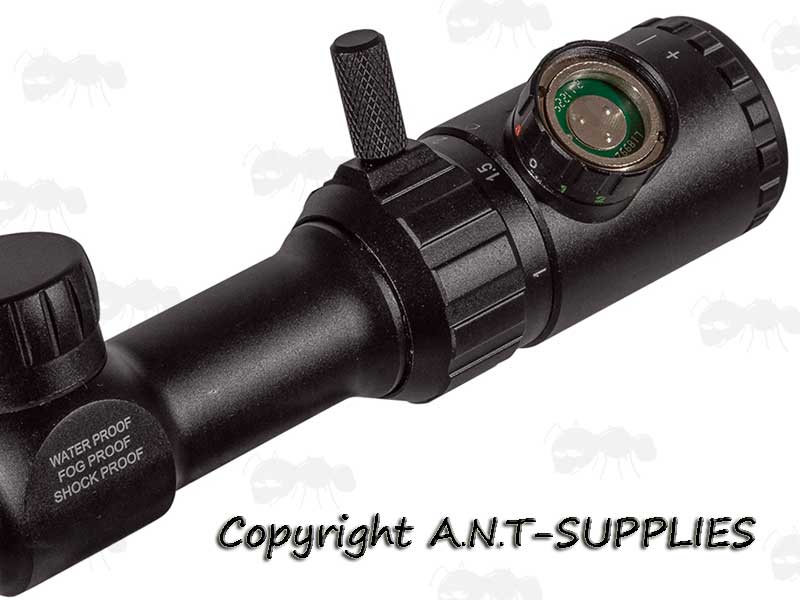

Battery is required to illuminate the reticle, but not included (CR1632 button cell).

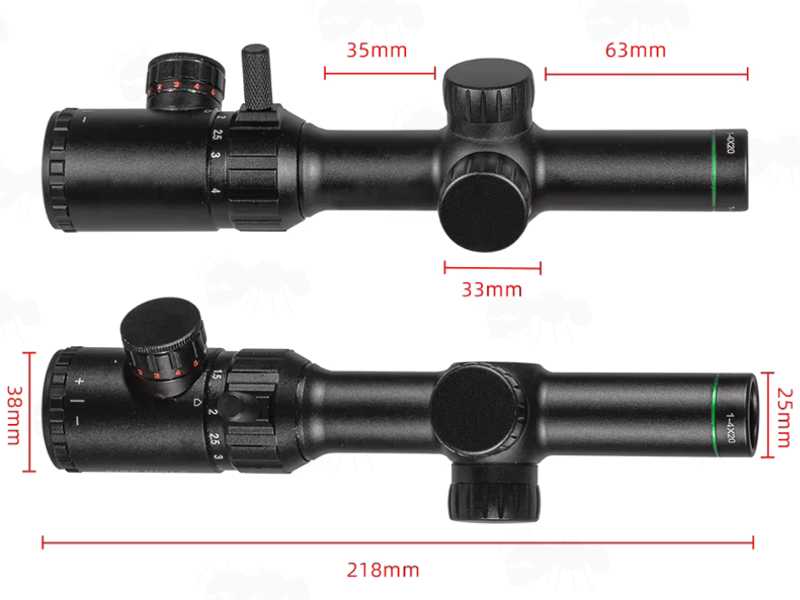

The distance from objective end to the turrets is 63mm.
The distance from focus adjuster section to turrets is 35mm.
Tube diameter ~ 25.4mm / 1 inch.
Material ~ aluminium.
Finish ~ hard black anodized.
Length ~ 218mm.

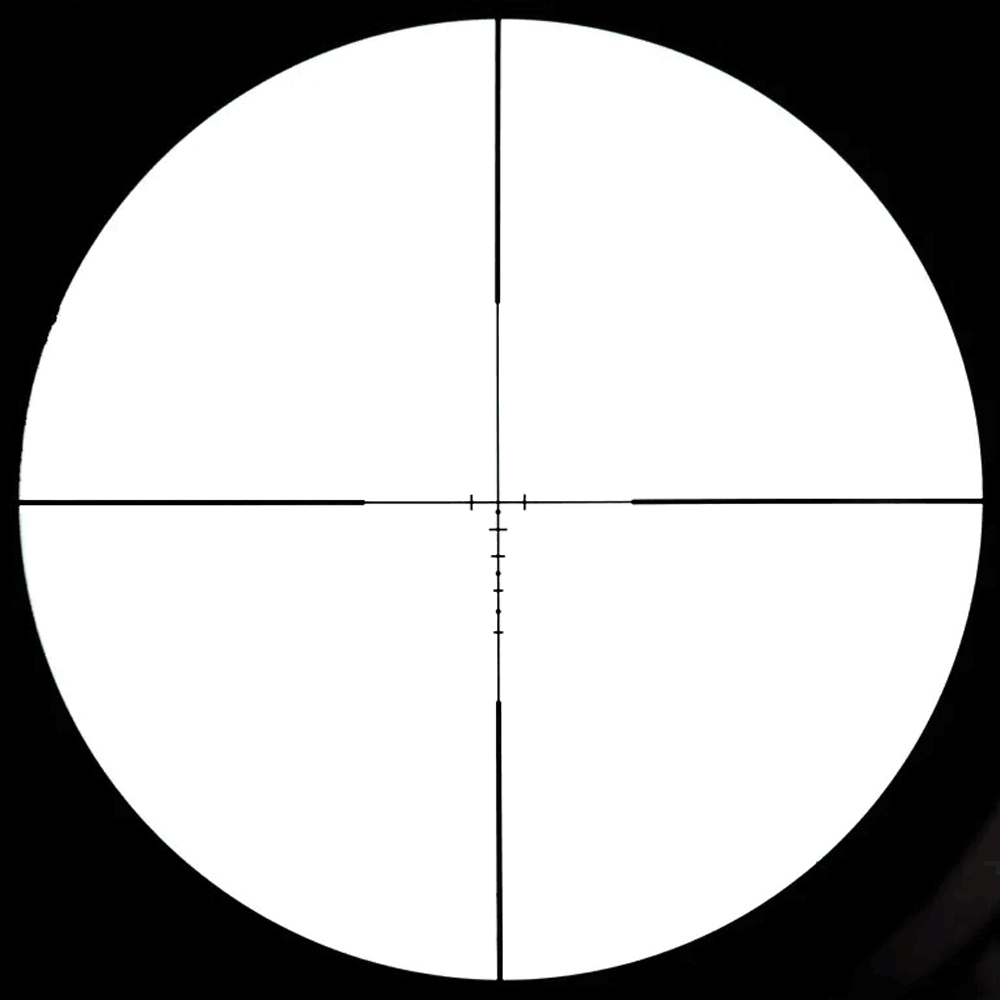

Illuminated reticle ~ red and green.
Brightness settings ~ five levels on each colour.
Lens ~ fully broad-band multi-coated objective bak4 lenses.
Lens caps ~ flip-up 25.5mm and 39.8mm.
Magnification ~ 1x-4x.
Objective lens diameter ~ 20mm.
Ocular lens diameter ~ 30mm.

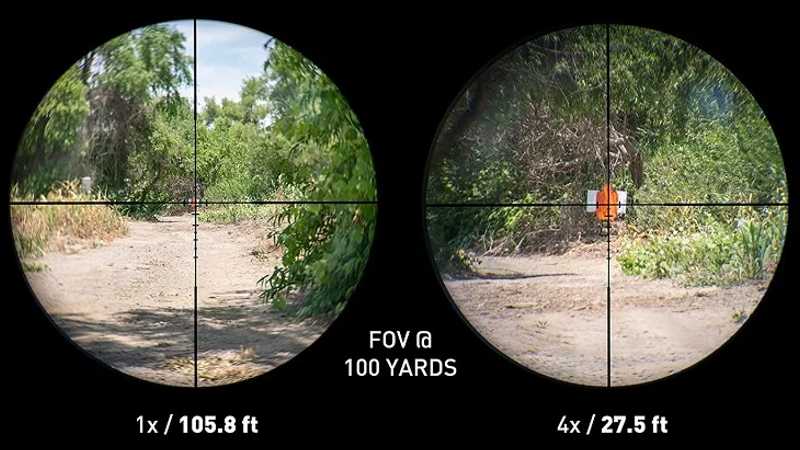

Field of view @100 yards ~ 104.3 - 26.99 feet.
Eye relief ~ 96mm - 75mm.
Exit pupil ~ 12.3 - 7mm.

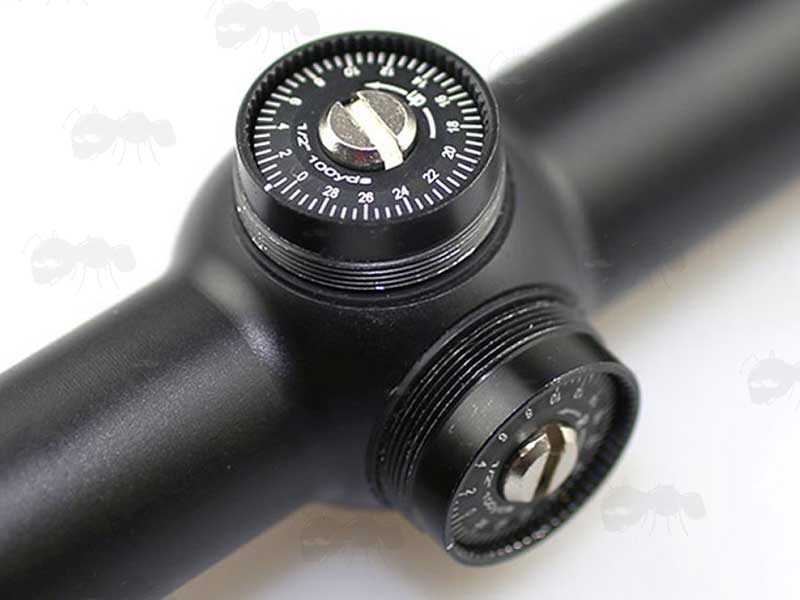

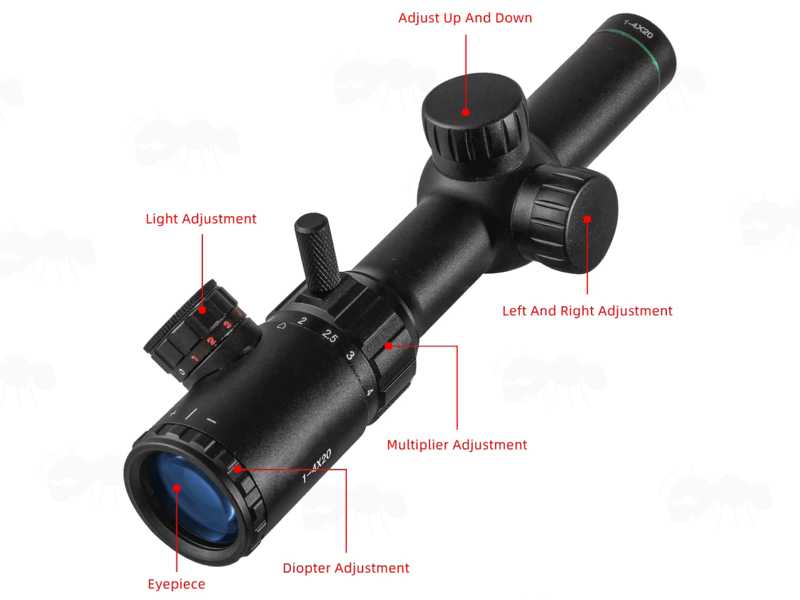

Windage and elevation adjustment range ~ 75 minute of angle.
Parallax setting ~ 100 yards.
Waterproof, fogproof and shockproof.
To illuminated the reticle a 1 x CR1632 button cell is required.
Weight ~ 316 grams.

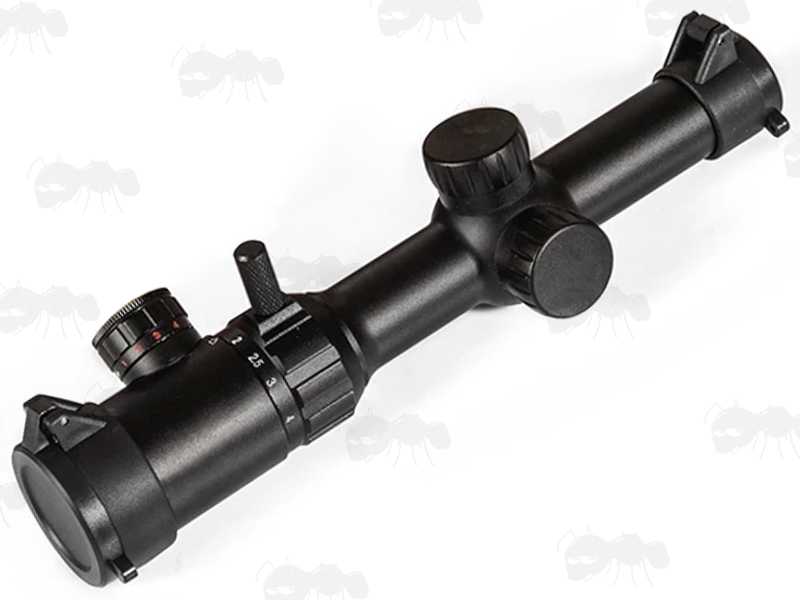

The ocular end accepts and is fitted with our 39.8mm AnTac flip-up lens cover and the objective end the 25.5mm cover.
Other LPVO scopes available by request:
1/2MOA 30mm tube 1-6x24E Red or Red & Green Illuminated
1/2MOA 1.5-6x24E Red & Green Illuminated with Lockable Turrets
1/2MOA 30mm tube 1-6x24E SFP Red Illuminated
1/2MOA 30mm tube 1-8x24E SFP Red Illuminated
1-6x24 and 4-16x44SF
Also available ~ One Piece LPVO Scope Mounts and AnTac Black Flip-Up Lens Covers.

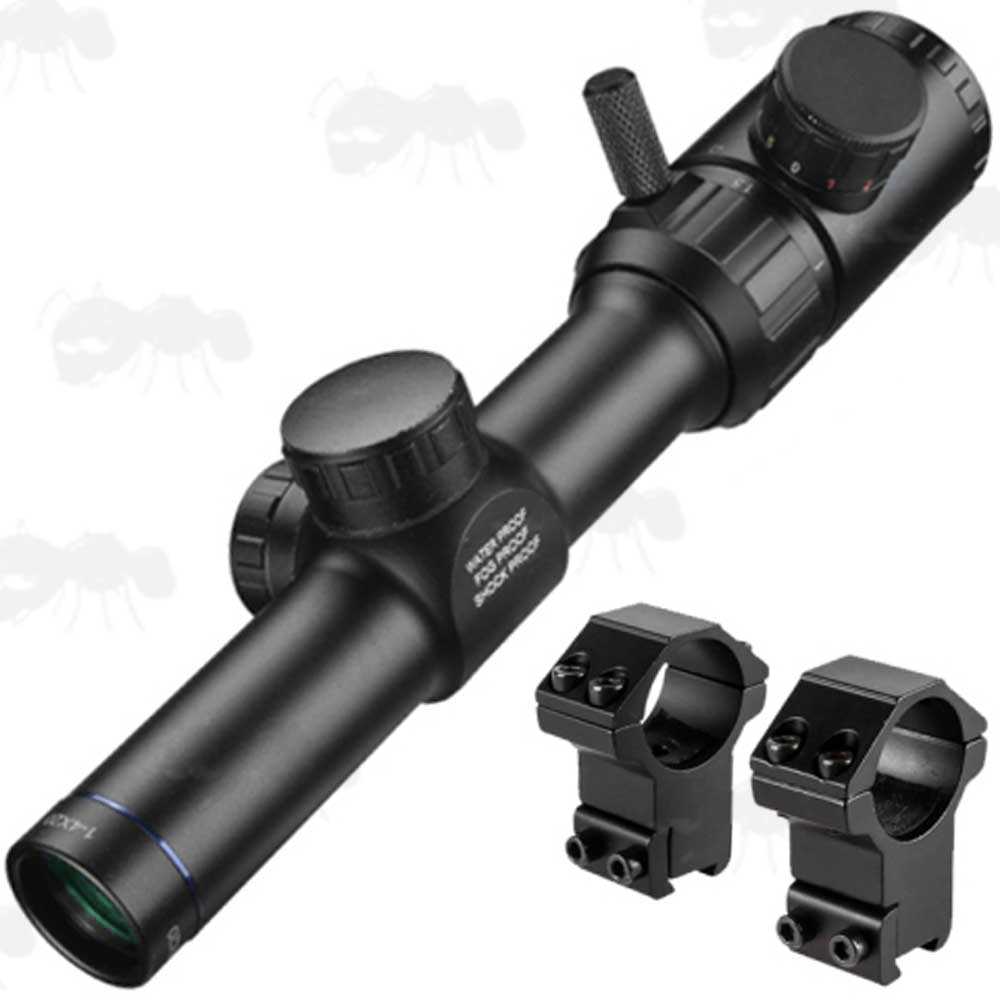

WE WOULD USUALLY RECOMMEND HIGH-PROFILE MOUNTS (not included):
