WEAVER / PICATINNY ANGLE COMPENSATION SCOPE MOUNTS
One piece mounts for 20mm wide rails.
ANGLE COMPENSATION RIFLE SCOPE MOUNT
20MOA£24.00p each

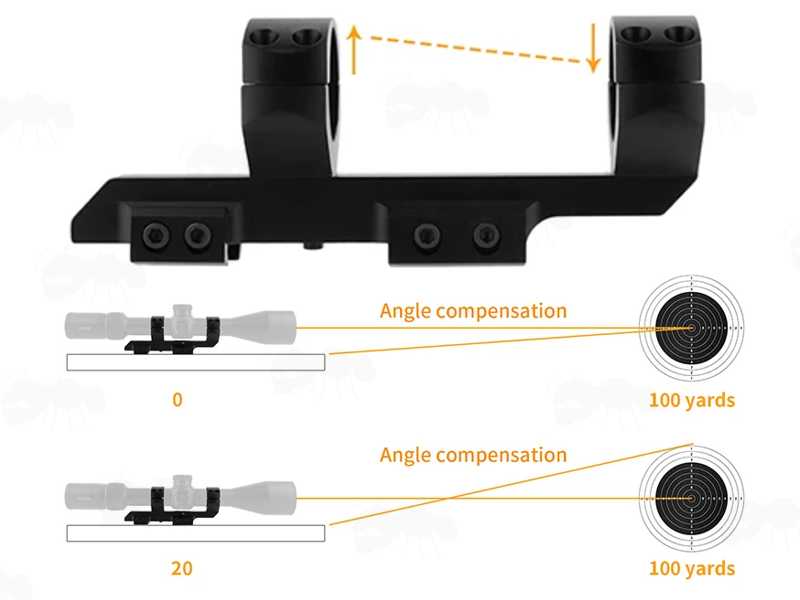

20MOA angle compensation mount to solve problems for long range shooters, whom often run out of elevation adjustment clicks on their scope turrets.
The mount slopes down to the front, therefore elevating the rear end allowing you to zero in your gun far beyond what standard 0MOA mounts would allow.
Without going to the extreme range of you scopes elevation turret, so keeping the optical centre of your scope.

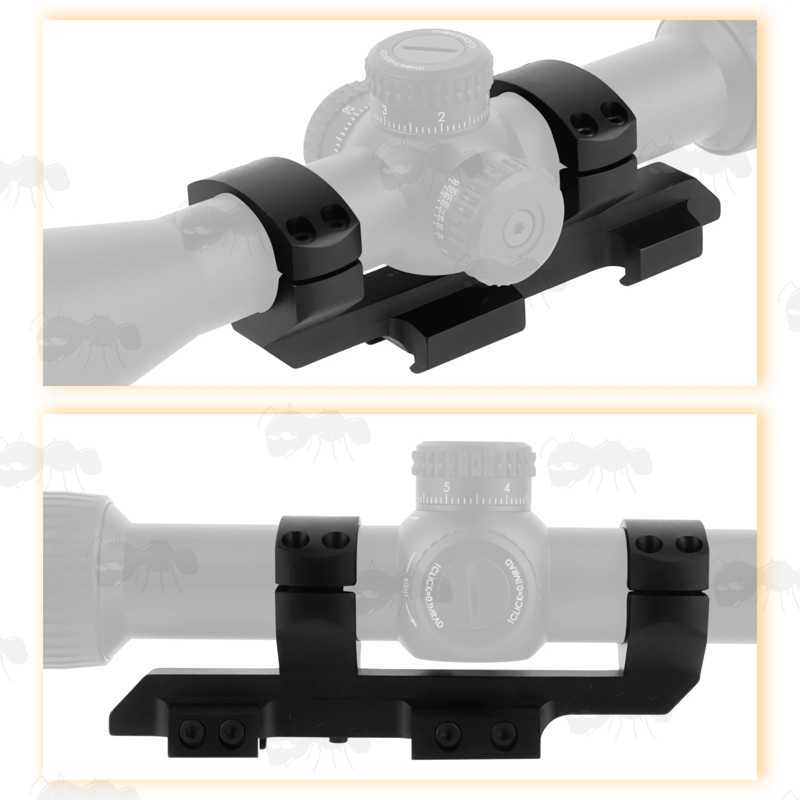

Double clamped ring mounts.
For 30mm diameter scope, 1 inch / 25.4mm adapters are available to order separately.

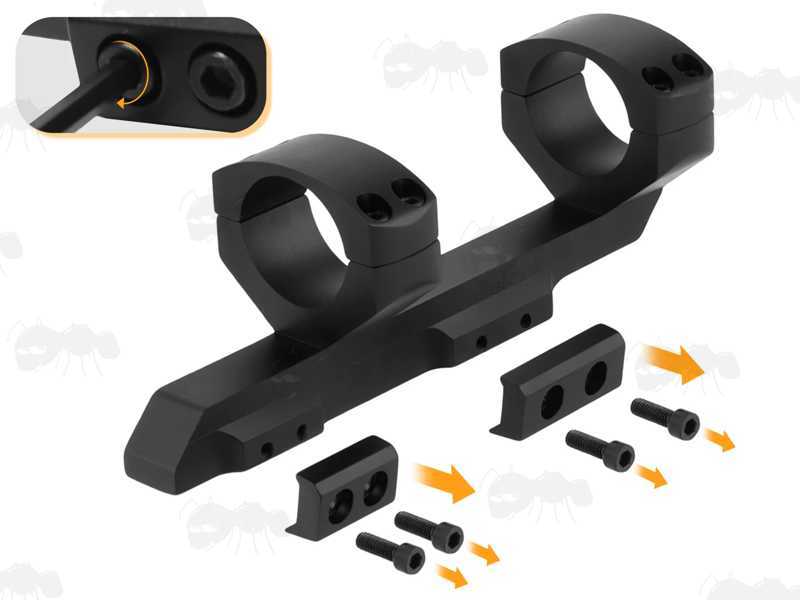

20mm Weaver / Picatinny rail fitting.
6061 aviation aluminium with matte black anodised finish.

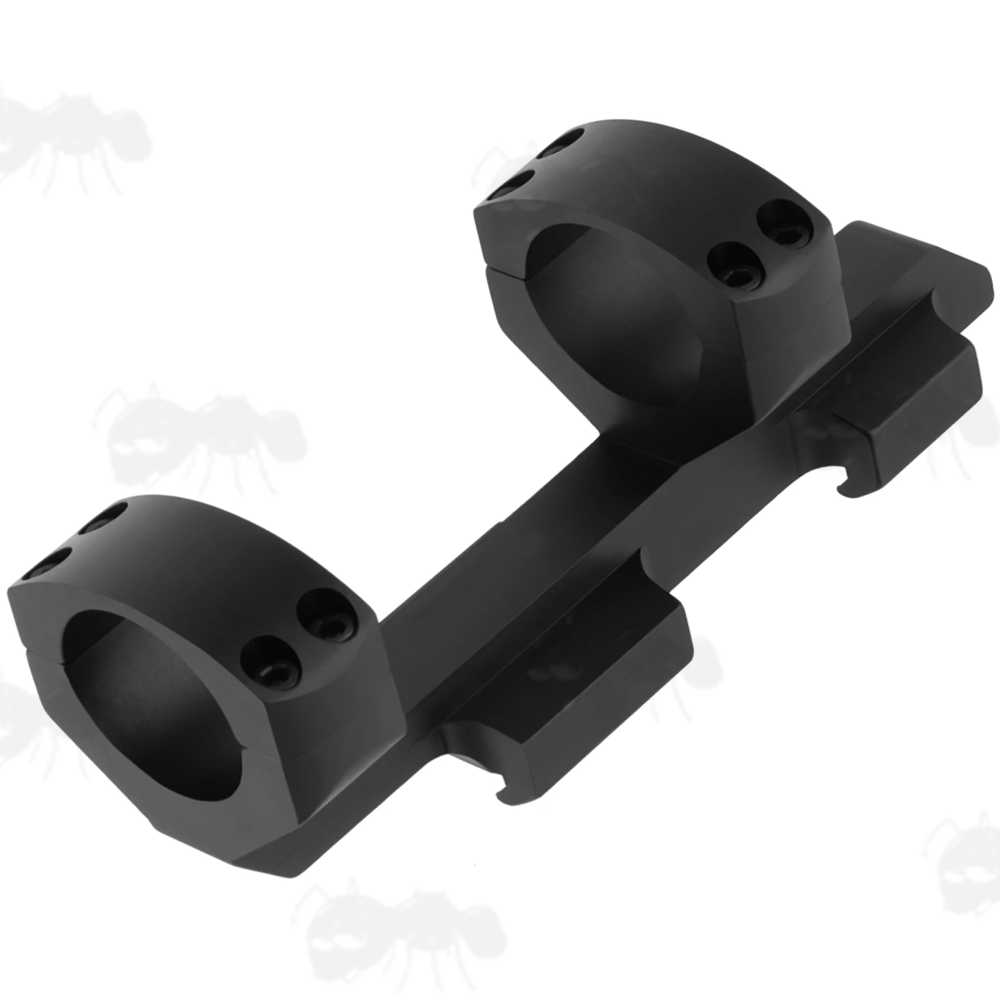

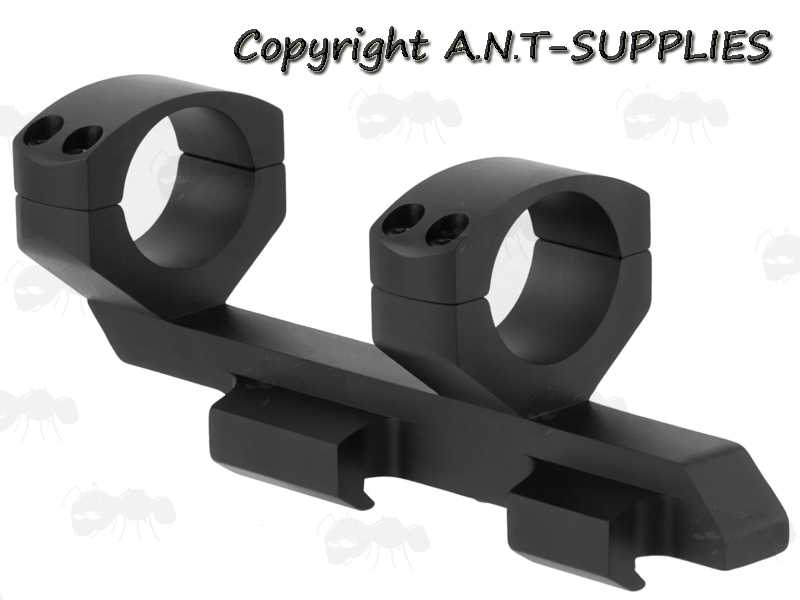

One piece Picatinny / Weaver 20MOA scope mount.

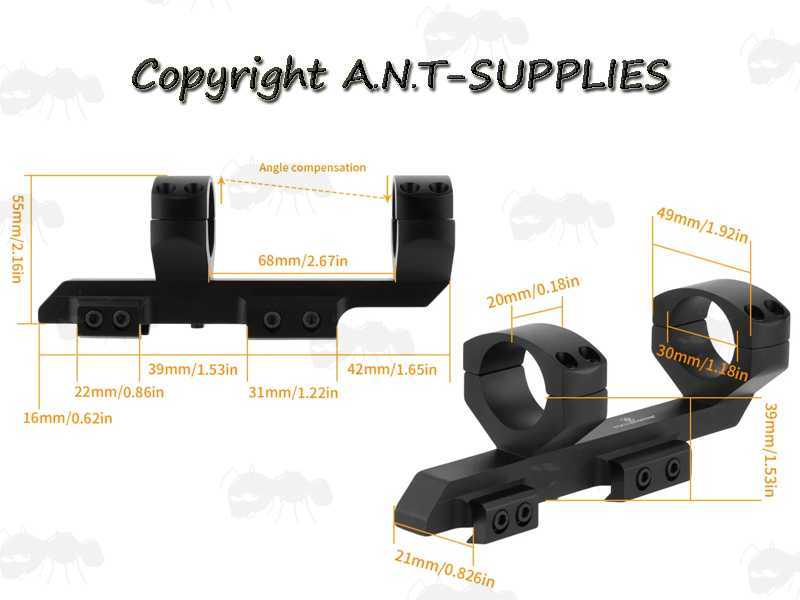

Footprint lengths ~ 22mm and 32mm.
Distance between footprints ~ 39mm.
Overall length ~ 152mm.
Gap distance between two rings ~ 68mm.
Overall height ~ 61mm.
Elevation ~ 24mm.
Ring thickness ~ 20mm.
Ring overall width ~ 49mm.
Weighs approx ~ 220 grams.
Also available ~ Dovetail Rail MOA Scope Mounts and Adjustable Laser / Torch Mounts.
