SPORTSMATCH MOUNT GUIDE

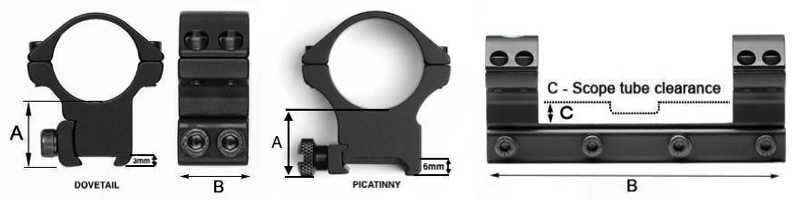

Drawing of a Pair Of SportsMatch UK Adjustable Dovetail Rail Mounts
Link to our Scopes Mounts page.

How much should I tighten the fasteners on my Sportsmatch scope mount?

Ring screws (4mm thread diameter) – 30 in/lbs.

Dovetail clamp screws with 4mm thread diameter – 42 in/lbs.

Dovetail clamp screws with 5mm thread diameter – 66 in/lbs.

Rail clamp on Picatinny / Weaver scope mounts - 40 in/lbs.


Due to many variables these figures can only be used as a guide.

In extreme cases some particularly heavy recoiling rifles may require
higher levels of torque to be applied to the dovetail clamp screws only.

To avoid damaging the screws on your scope mount please only use the
allen key supplied or a suitable torque wrench.

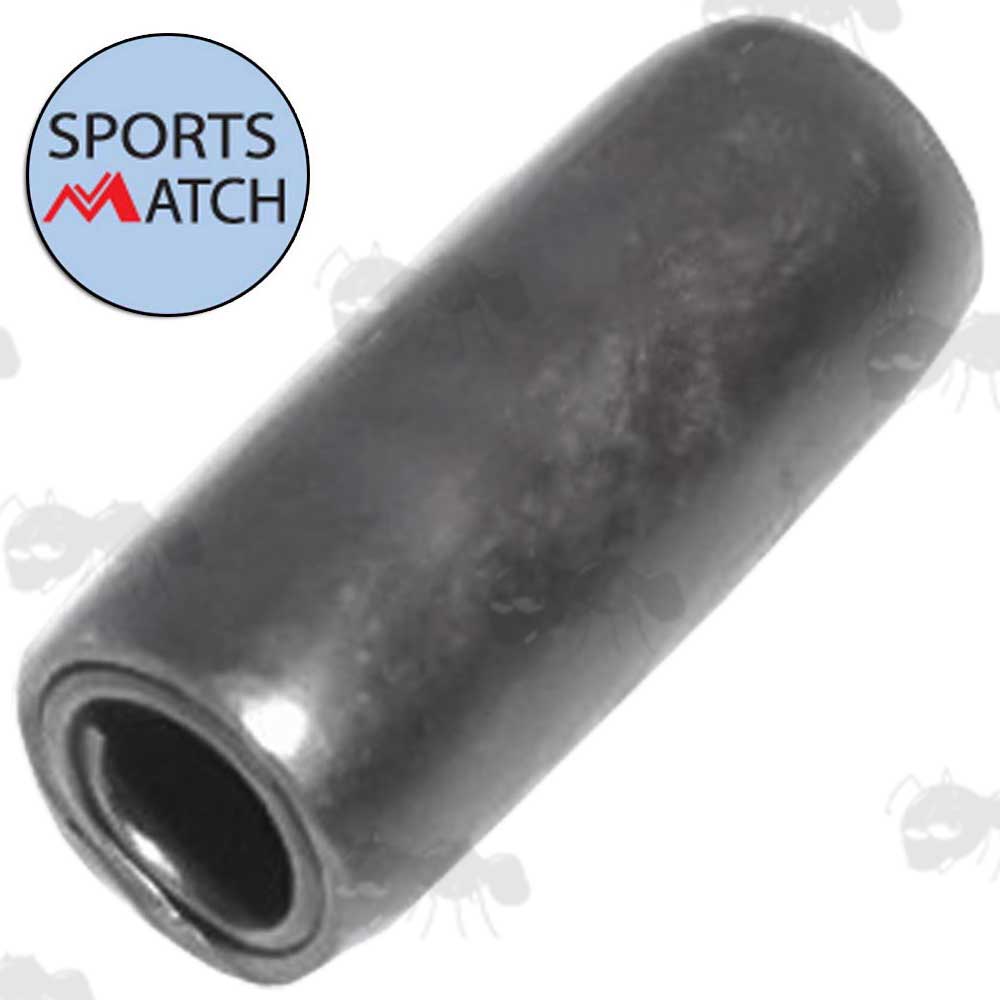

HOW TO FIT THE EASYFIT ARRESTOR PIN:

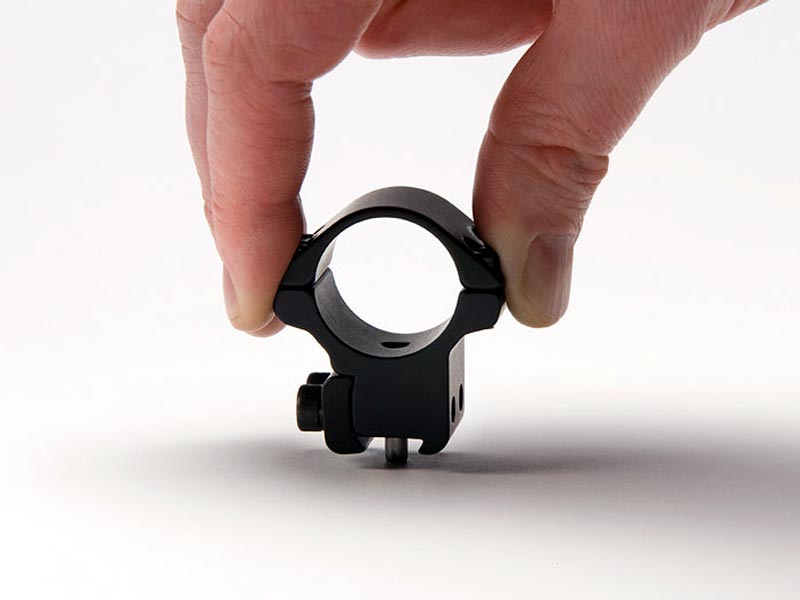

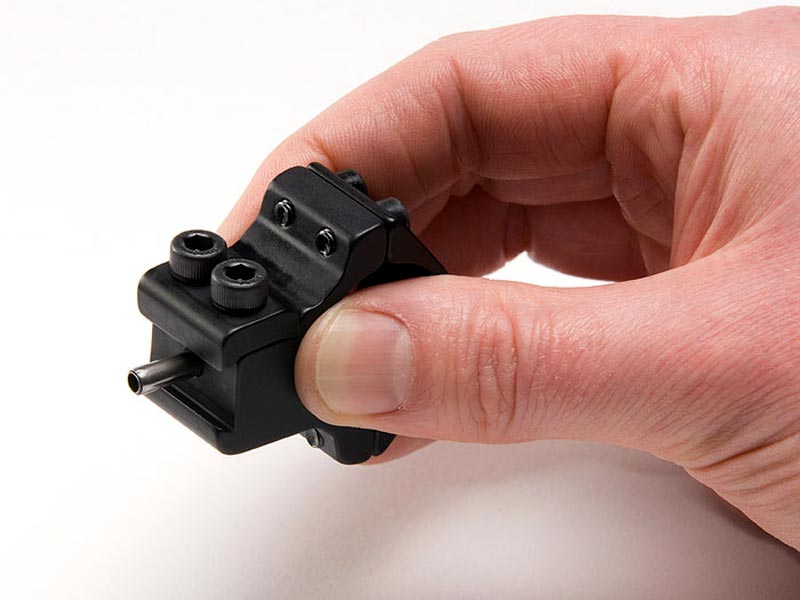

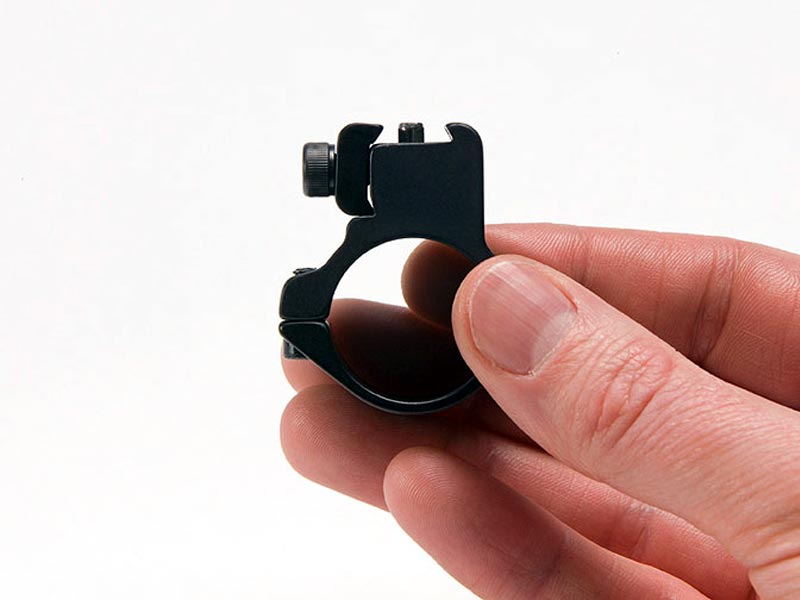

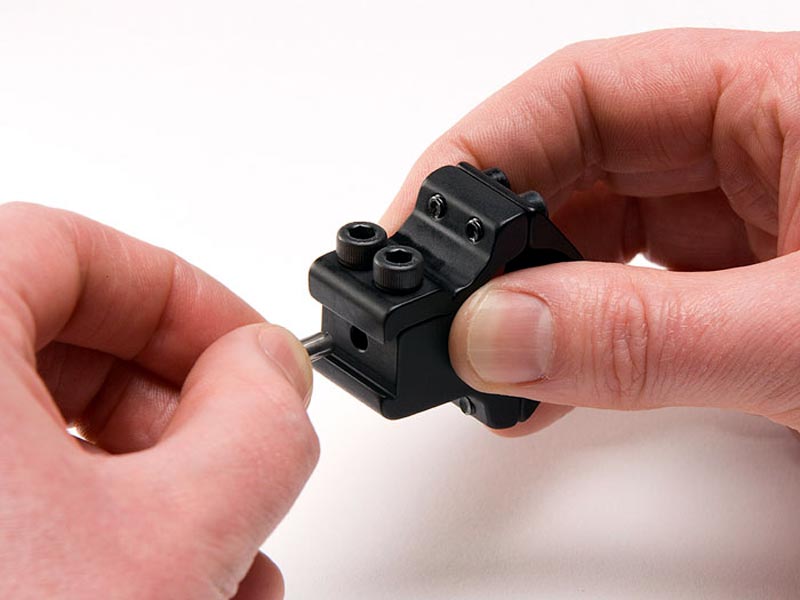

Fitting an EasyFit Arrestor Pin To a SportsMatch Mount Fitting an EasyFit Arrestor Pin To a SportsMatch Mount
Fitting an EasyFit Arrestor Pin To a SportsMatch Mount Fitting an EasyFit Arrestor Pin To a SportsMatch Mount

HOW TO REMOVE THE EASYFIT ARRESTOR PIN:

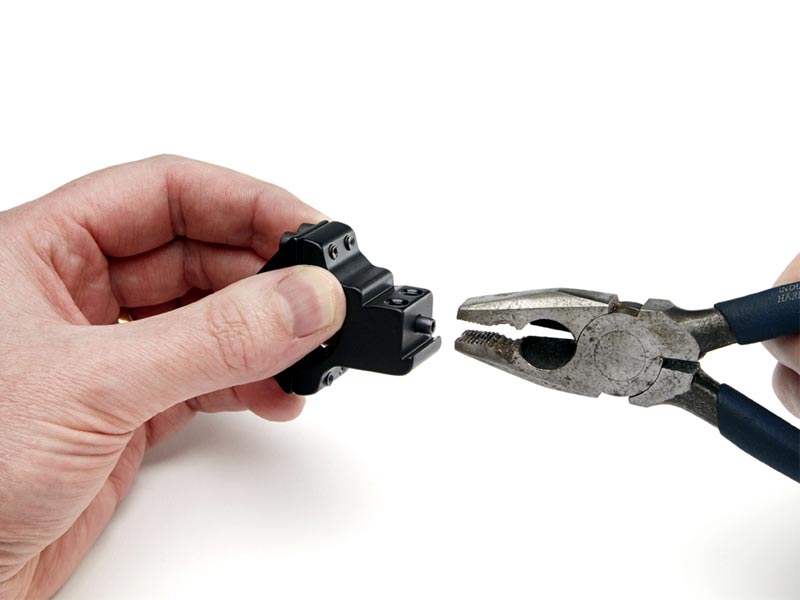

Pliers Removing EasyFit Arrestor Pin From a SportsMatch MountThe easiest way is to firstly remove the dovetail clamp and then remove the arrestor pin with pliers as shown.

Alternatively the arrestor pin can be carefully tapped out using a suitable drift.

Which rifle scopes do your scope rings fit?

Sportsmatch Scope Rings / Scope Mounts will fit the following rifle scopes;

Aimpoint Athlon Barska Bushnell BSA Burris Centrepoint Delta Docter Falcon Hawke IOR Kahles Konus Leapers Leica Leupold March Meopta Minox MTC Nightforce Nikon Nikko Sterling Optisan Pecar Redfield Richter Sabre Schmidt & Bender Sellmark Sightmark Sightron Simmons Steiner Sunscope Swarovski Tasco UTG Vortex Walther Weaver Yukon Zeiss and many more!

Which rifles / air rifles do your scope rings fit?

Sportsmatch Scope Rings / Scope Mounts will fit the following rifles and air rifles

Accuracy International Air Arms Airforce Anschutz Airgun Technology Ataman Barrett Beeman Benjamin Bergara Brocock Browning BSA Cometa Crosman CZ Daisy Dakote Daystate Diana Edgun Evanix Falcon Feinwerkbau FX Gunpower Hammerli Hatsan Henry Howa Heckler & Koch Impact Kahr Kelby Kimber Kral Krieghoff Lithgow Lynx Magtech Marlin Merkel Mossberg Pallas Parker Hale Remington RWS Sig Sauer Savage Schultz & Larsen Stoeger Sheridan SMK Steyr Mannlicher Theoben Tikka Umarex Voerre Walther Webley & Scott Weihrauch Weatherby Winchester Zastava and many more!

How to fit your scope mounts / rings when mounting a scope...
