WEAVER / PICATINNY SPIRIT LEVEL MOUNTS
Precision machined high-grade construction mounts with a matte black finish.
ONE PIECE ACD SCOPE MOUNT

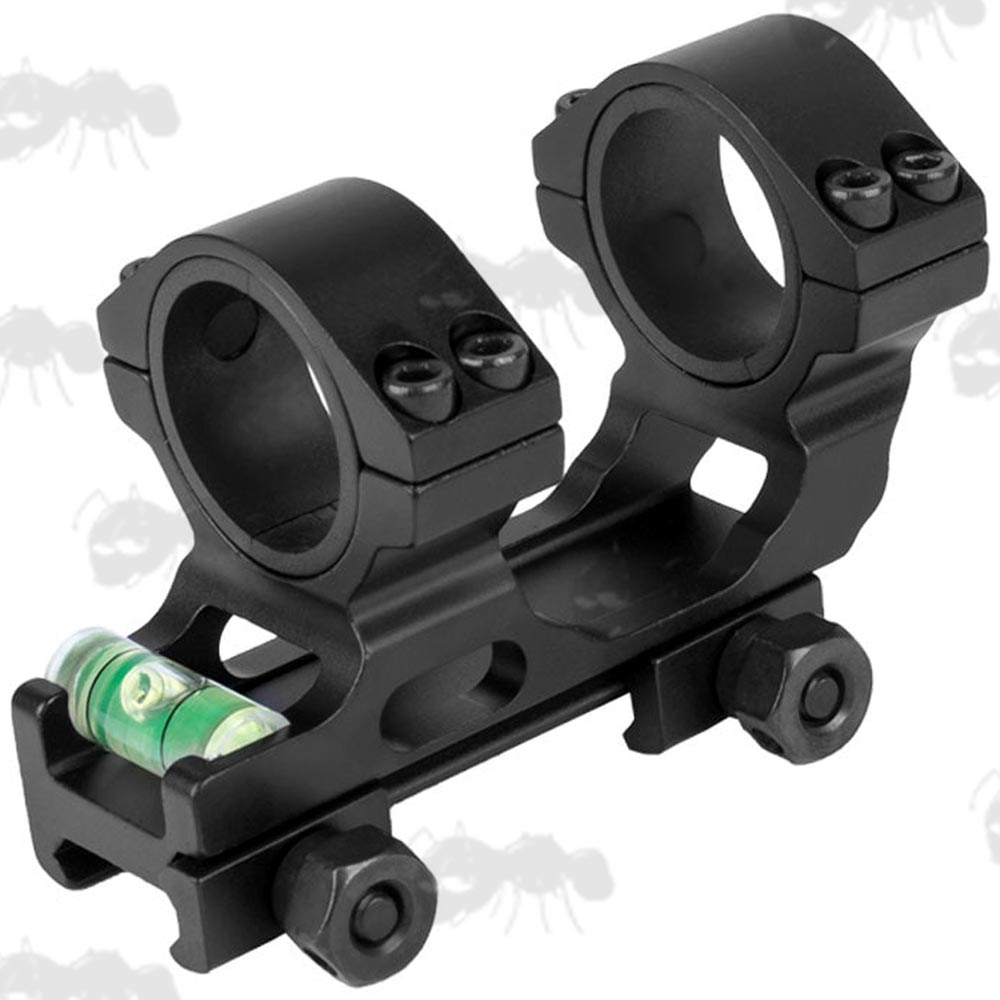

STUBBY
£16.80p each
SOLD OUT
Overall length ~ 88mm.
Distance between fixing bolt shaft centres ~ 50mm.
Elevation of 21mm.
Width ~ 45mm.
Ring thickness ~ 16mm.
Gap between the two rings ~ 34mm.
With 14mm forward reach.
Weighs approx 125 grams.
£16.80p each
SOLD OUT
Overall length ~ 88mm.
Distance between fixing bolt shaft centres ~ 50mm.
Elevation of 21mm.
Width ~ 45mm.
Ring thickness ~ 16mm.
Gap between the two rings ~ 34mm.
With 14mm forward reach.
Weighs approx 125 grams.
STANDARD
£24.00p each
SOLD OUT
Overall length ~ 150mm.
Distance between fixing bolt shaft centres ~ 80mm.
Elevation of 21mm.
Width ~ 45mm.
Ring thickness ~ 21mm.
Gap between the two rings ~ 79mm.
With 45mm forward reach.
Weighs approx 150 grams.
£24.00p each
SOLD OUT
Overall length ~ 150mm.
Distance between fixing bolt shaft centres ~ 80mm.
Elevation of 21mm.
Width ~ 45mm.
Ring thickness ~ 21mm.
Gap between the two rings ~ 79mm.
With 45mm forward reach.
Weighs approx 150 grams.
QUICK-RELEASE ~ PLAIN
£24.00p each
SOLD OUT
Overall length ~ 150mm.
Distance between fixing bolt shaft centres ~ 80mm.
Elevation of 21mm.
Width ~ 45mm.
Ring thickness ~ 21mm.
Gap between the two rings ~ 79mm.
With 45mm forward reach.
Weighs approx 164 grams.
£24.00p each
SOLD OUT
Overall length ~ 150mm.
Distance between fixing bolt shaft centres ~ 80mm.
Elevation of 21mm.
Width ~ 45mm.
Ring thickness ~ 21mm.
Gap between the two rings ~ 79mm.
With 45mm forward reach.
Weighs approx 164 grams.
QUICK-RELEASE ~ TOP RAIL STANDARD
£24.00p each
SOLD OUT
Overall length ~ 150mm.
Distance between fixing bolt shaft centres ~ 80mm.
Elevation of 21mm.
Width ~ 45mm.
Ring thickness ~ 21mm.
Gap between the two rings ~ 79mm.
With 45mm forward reach.
Weighs approx 163 grams.
£24.00p each
SOLD OUT
Overall length ~ 150mm.
Distance between fixing bolt shaft centres ~ 80mm.
Elevation of 21mm.
Width ~ 45mm.
Ring thickness ~ 21mm.
Gap between the two rings ~ 79mm.
With 45mm forward reach.
Weighs approx 163 grams.
QUICK-RELEASE ~ TOP RAIL EXTENDED
£24.00p each
SOLD OUT
Overall length ~ 150mm.
Distance between fixing bolt shaft centres ~ 80mm.
Elevation of 21mm.
Width ~ 45mm.
Ring thickness ~ 21mm.
Max gap between the two rings ~ 79mm.
With 45mm forward reach.
Weighs approx 160 grams.
£24.00p each
SOLD OUT
Overall length ~ 150mm.
Distance between fixing bolt shaft centres ~ 80mm.
Elevation of 21mm.
Width ~ 45mm.
Ring thickness ~ 21mm.
Max gap between the two rings ~ 79mm.
With 45mm forward reach.
Weighs approx 160 grams.
Condition: New

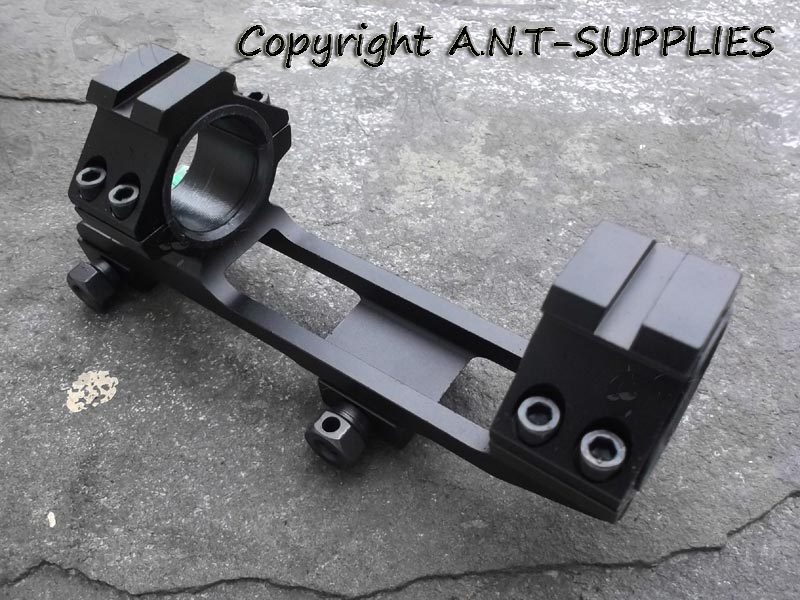

One piece scope mount with built in spirit level.
High quality 6063 T6 aircraft grade aluminium alloy.
Double clamp, 4 bolts per ring.
20mm Weaver / Picatinny fitting.
Matte black anodised finish.
For 1 3/16 inch / 30mm tubes, but 1 inch reducer rings are included.
Complete with hex key and 25.4mm adapters.
Also available ~ Scope Tube Fitting Spirit Levels.
STUBBY:
STANDARD:
QUICK-RELEASE ~ PLAIN:
QUICK-RELEASE ~ TOP RAIL STANDARD:
QUICK-RELEASE ~ TOP RAIL EXTENDED:
The extended top accessory rail can be fitted to either ring and face forward or back:
