DOVETAIL RAIL SCOPE RINGS WITH ADJUSTABLE WINDAGE & ELEVATION
For 9.5-11.5mm wide United Kingdom dovetail rails.

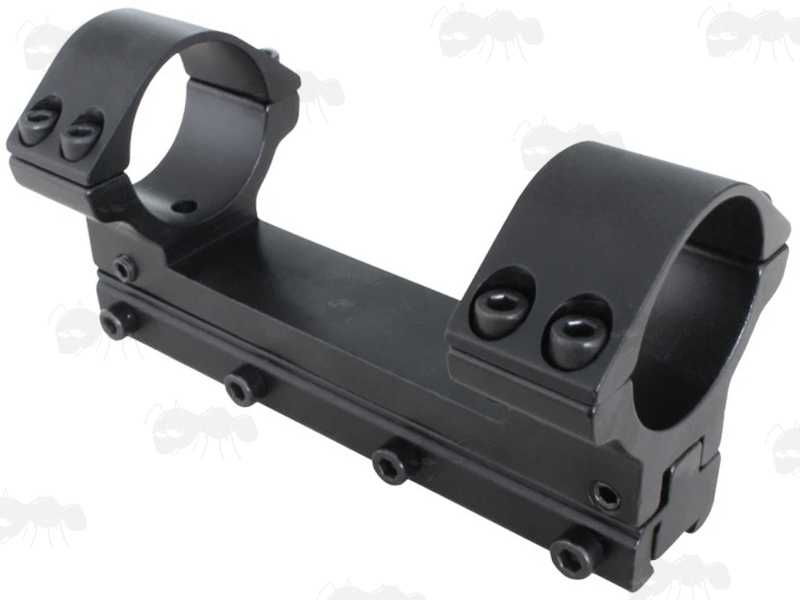

DOVETAIL RAIL ADJUSTABLE SCOPE MOUNT

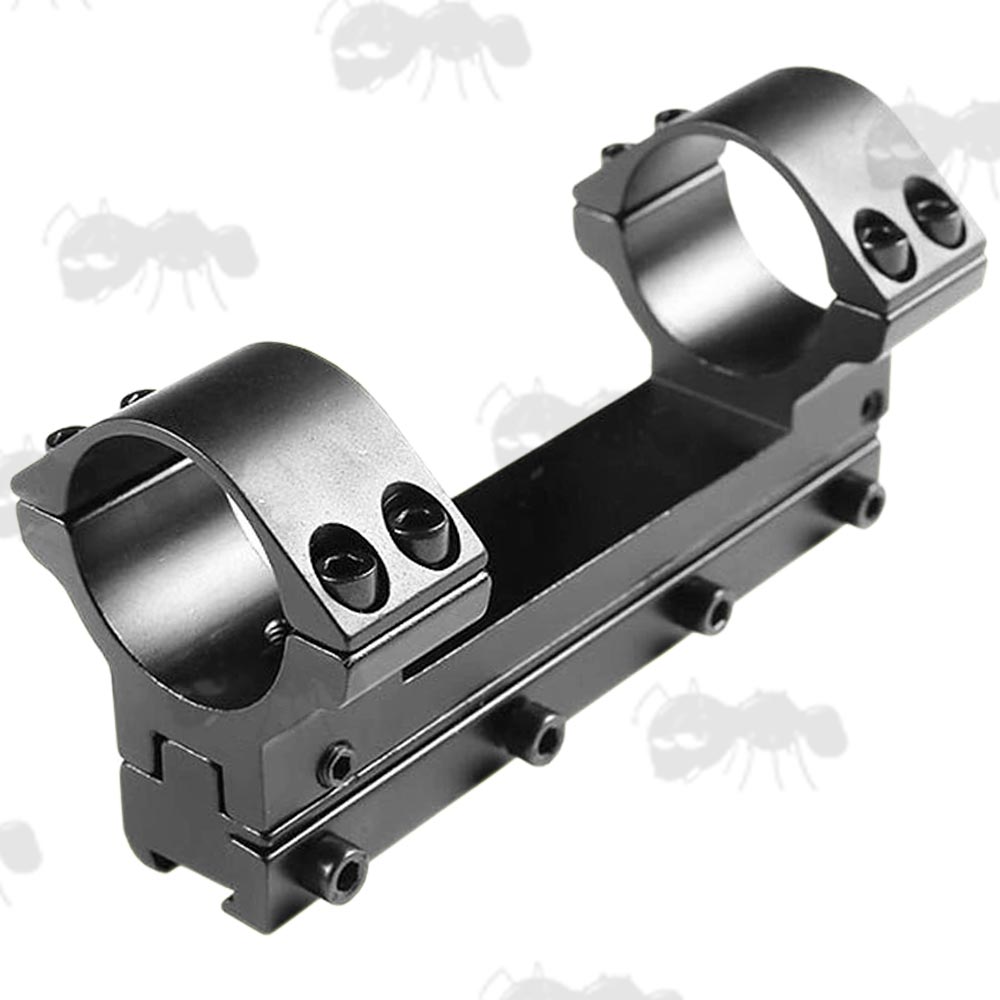

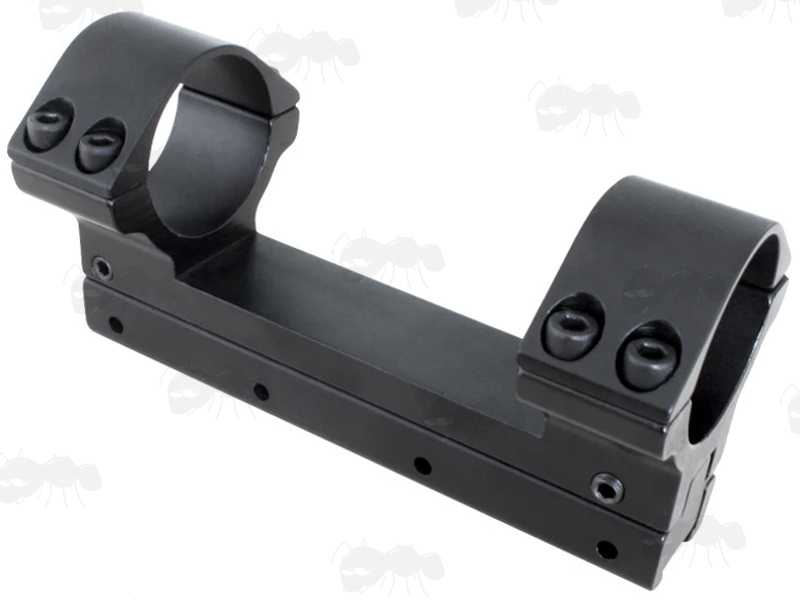

STANDARD£30.00p each
Footprint ~ 110mm.
Weighs ~ 178 grams.

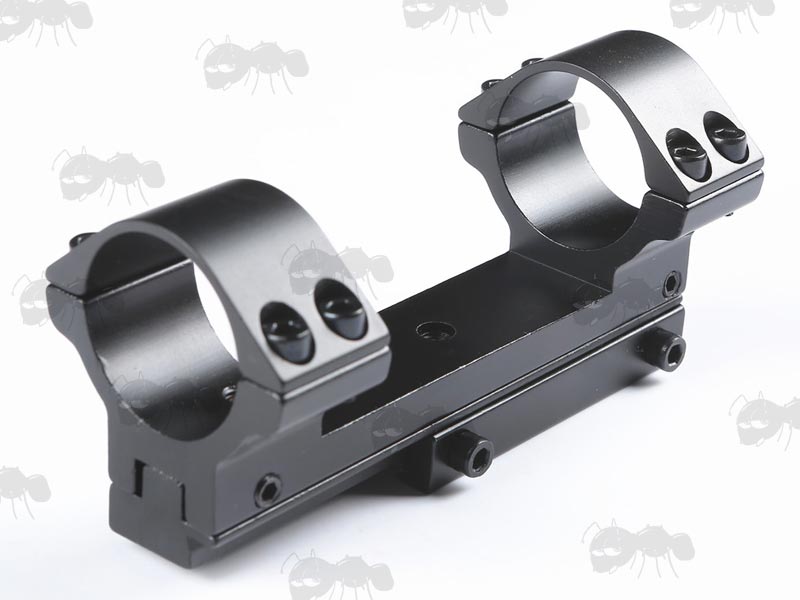

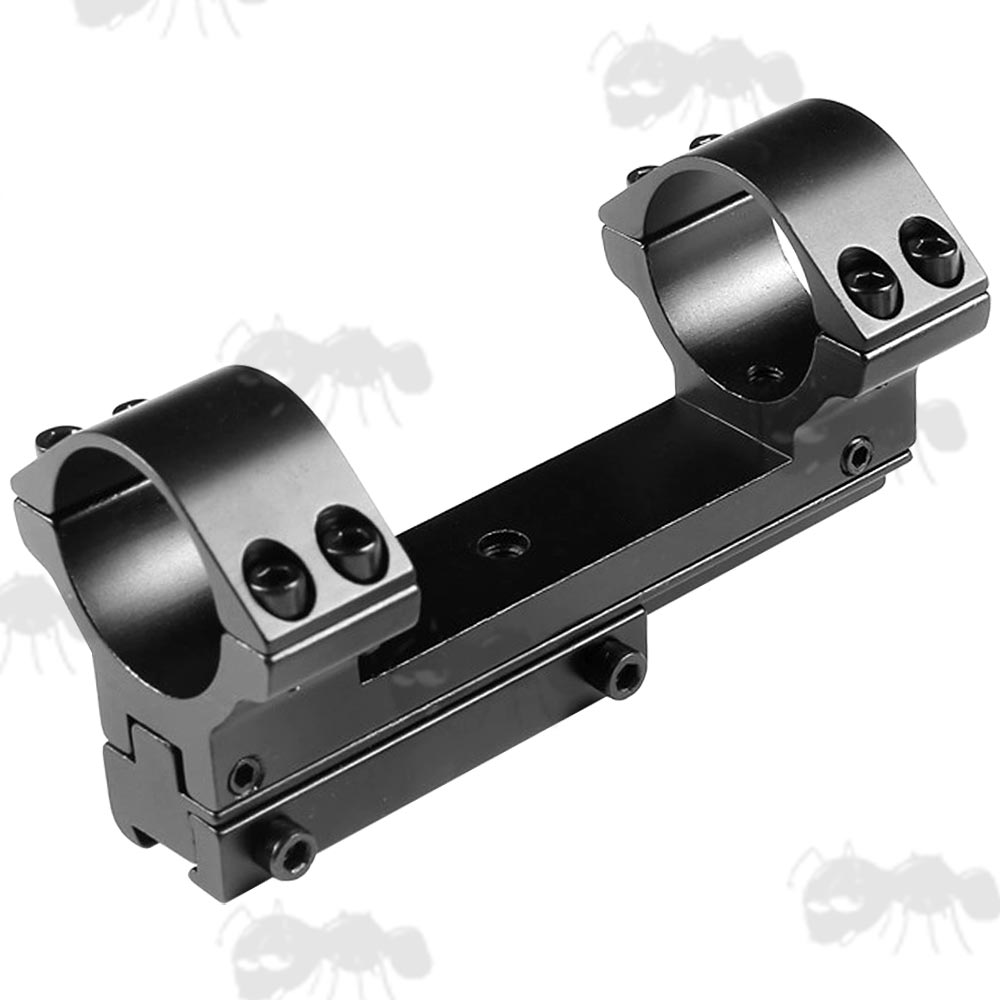

EXTENDED REACH£30.00p each
SOLD OUT
Footprint ~ 65mm.
Weighs ~ 168 grams.
One piece, double clamp, high mount.
For 1 3/16 inch / 30mm tubes, with adapters for 1 inch / 25mm.
9.5 - 11mm dovetail fittings.
For scopes up to 66mm objective lens.
110mm long overall.
Gap between the rings ~ 68mm.
Overall height 56mm, width 46mm.
Minimum elevation of 22mm.
High-grade aluminium alloy construction with a matte black finish.
With grub screws to adjust for windage and elevation.

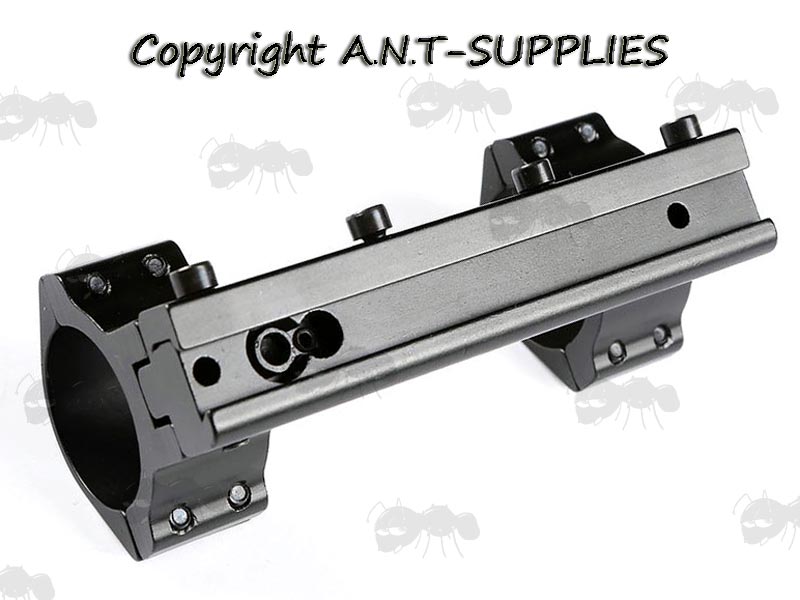

The elevation is adjusted underneath the mount, before fitting to the rail.
The windage is adjusted via the four small grub screws on the sides of the mount.
Please Note: Do not over tighten the grub screws.
You also need to release the opposite side grub screw before tightening the other side, or you will strip the threads.
Also available ~ Adjustable Two piece Dovetail Mounts and Adjustable Laser / Torch Mounts.
STANDARD DESIGN:
Option to fit a roll recoil pin, but is not included.

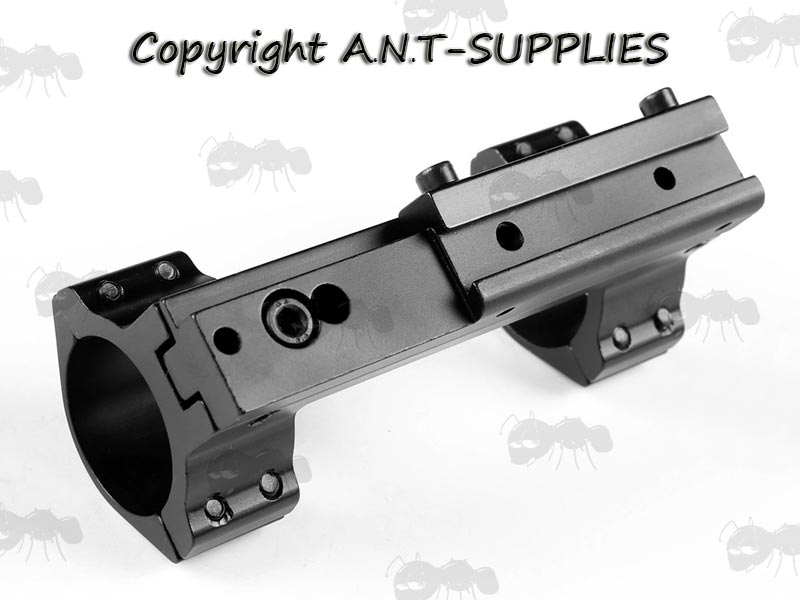

EXTENDED REACH DESIGN:
Fitted with an adjustable / removable threaded recoil pin.
The elevation pivots from the non-extended end of the mount, so it would need to be mounted in a rear-reaching position to depress the scope.
