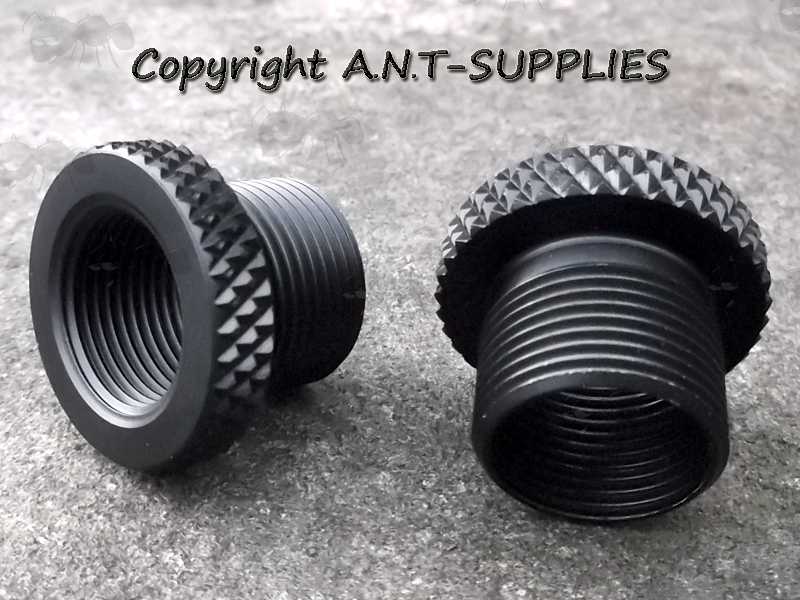

RIFLE BARREL THREAD ADAPTER
For M14 to 5/8x24 UNEF silencer / moderator / muzzle brake.
RIFLE BARREL THREAD ADAPTER

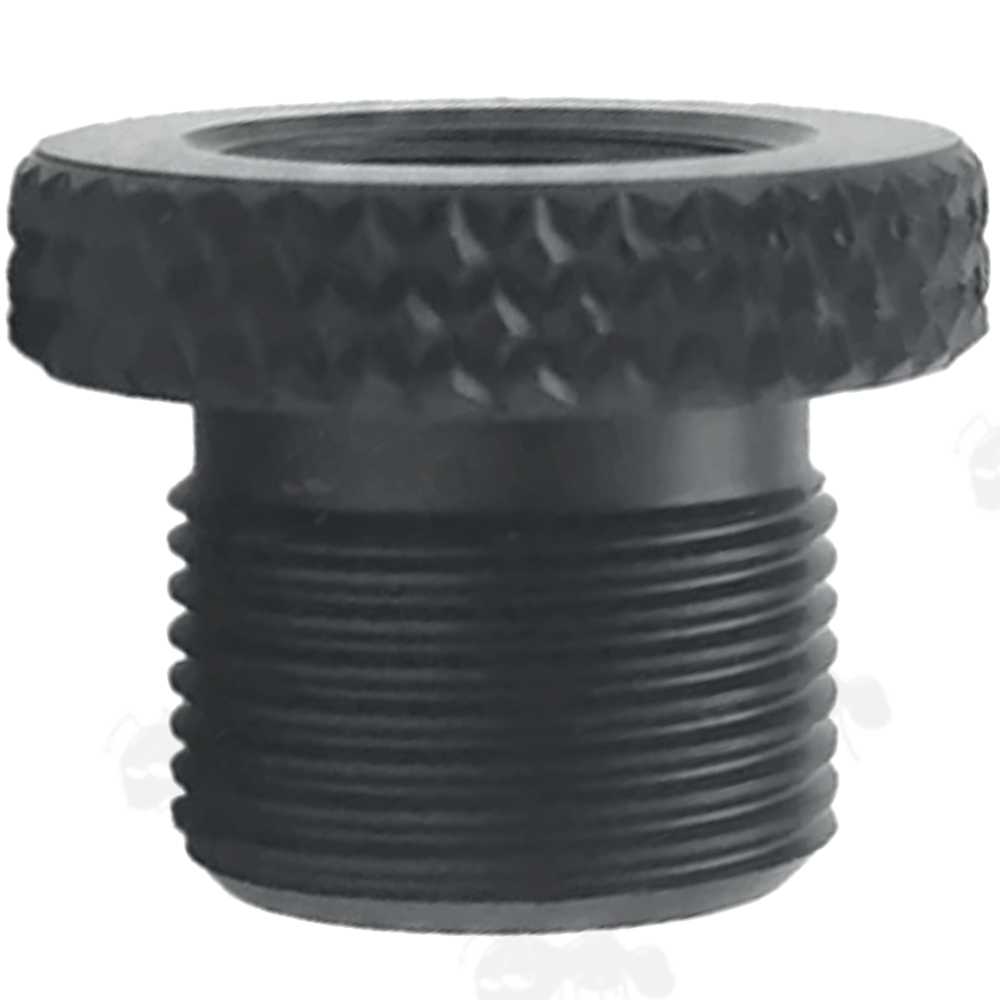

M14x1 LH TO 5/8″x24£10.00p each
OPTION A

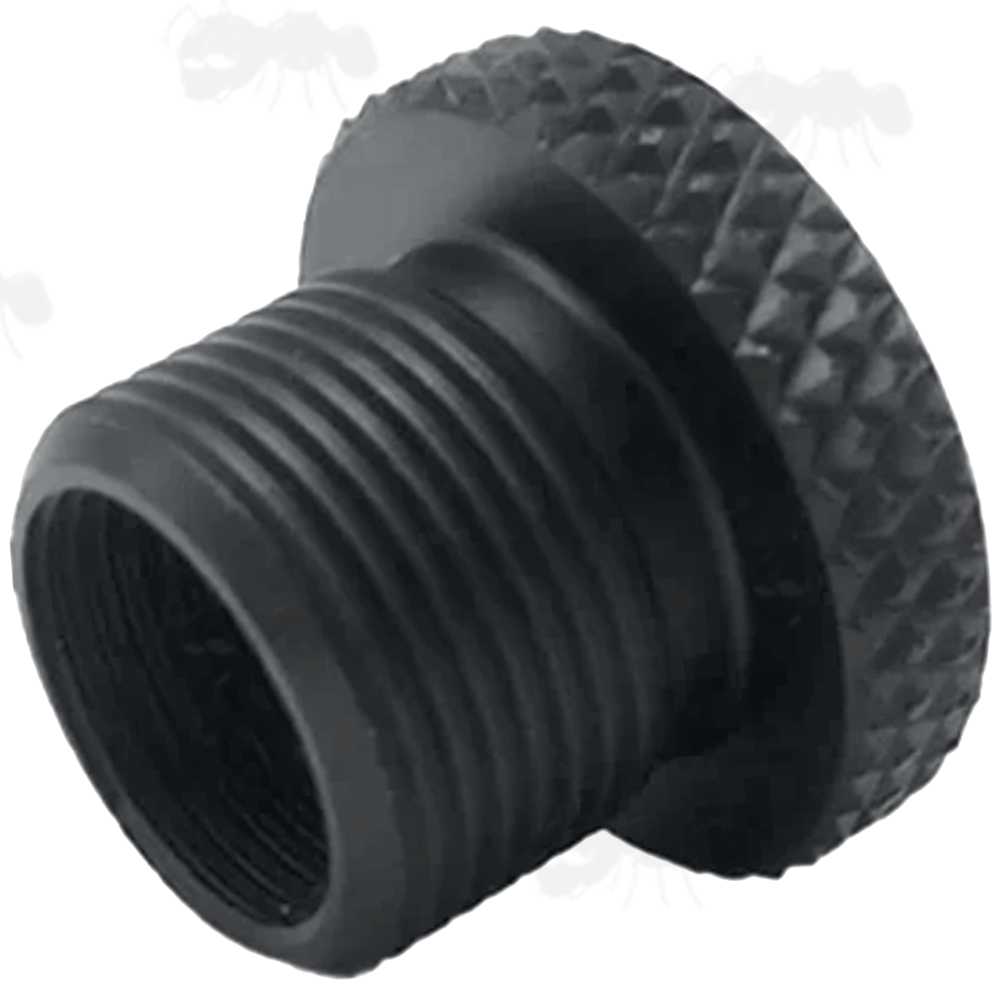

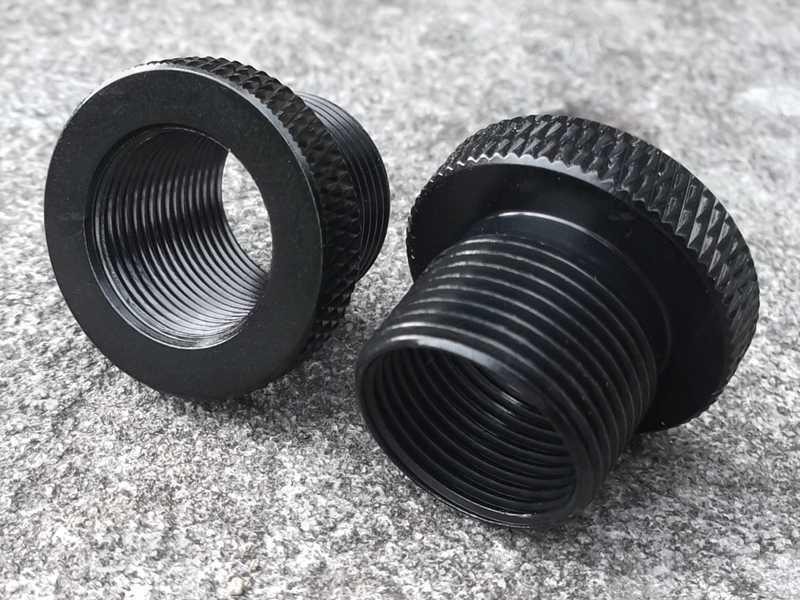

M14x1 RH TO 5/8″x24£10.00p each
OPTION B

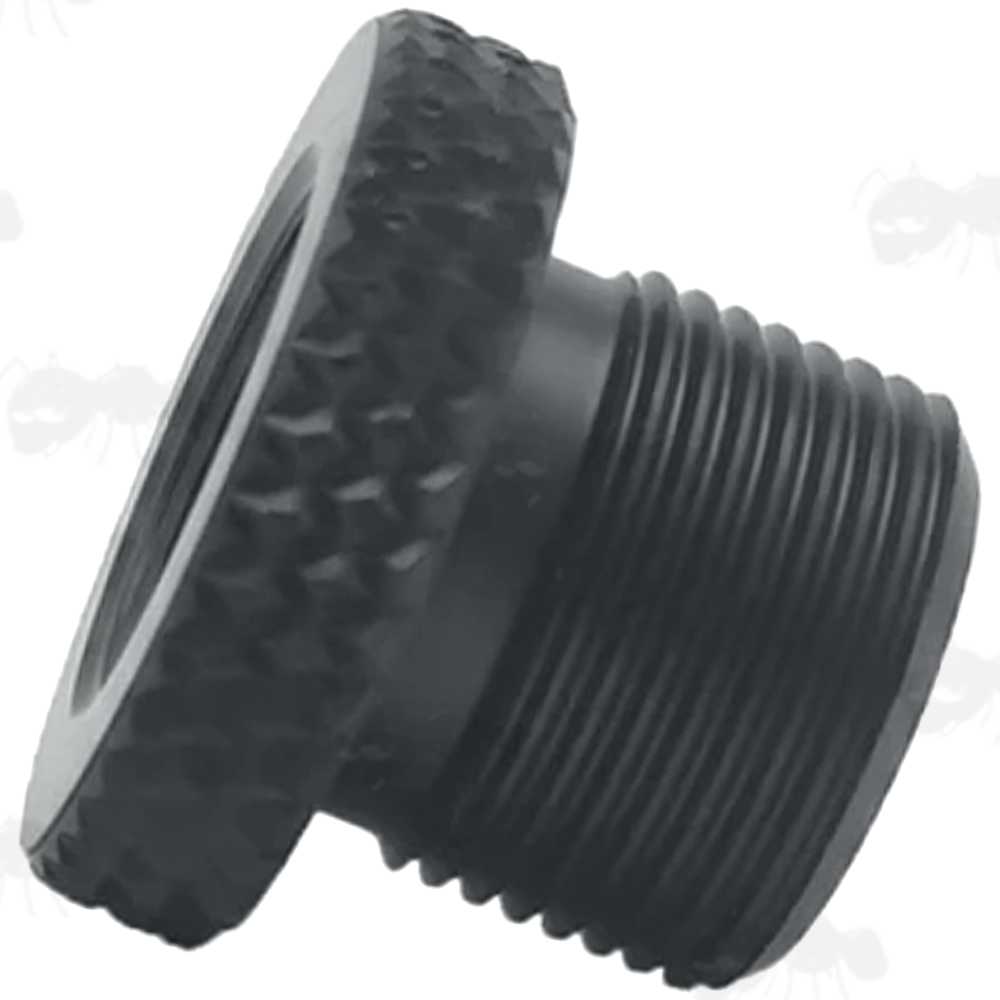

M14x1.5 RH TO 5/8″x24£10.00p each
OPTION C

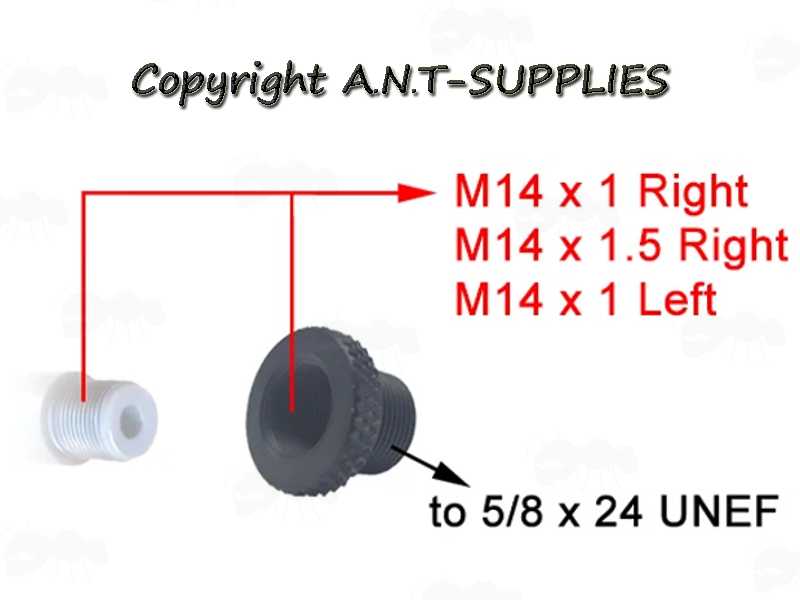

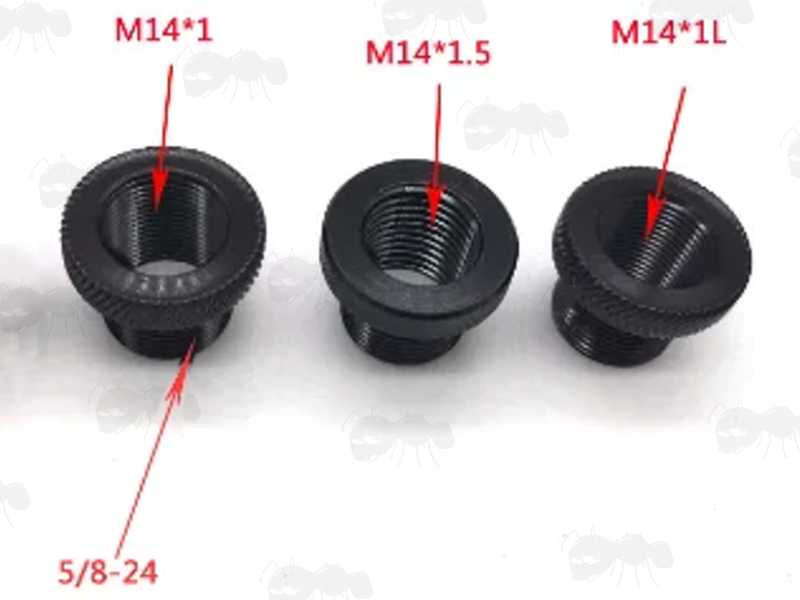

Choice of three types of M14 thread to 5/8″ x 24 adapters.
Option for M14x1 CCW / Left-Hand threads, M14x1 or M14x1.5 CW / Right-Hand threads.
5/8"x24 TPI is a common thread for many .30 caliber USA spec rifles.
Made of machined alloy.

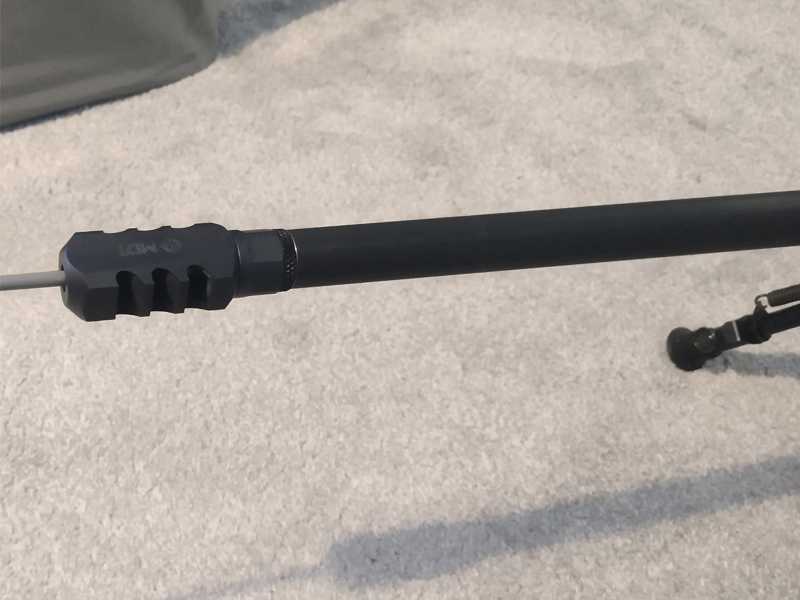

For fitting alternative silencers / moderators / muzzle brakes.
Round base with knurled grip.
Weighs ~ 6 grams.
Metric female 14mm internal threads.
To male 5/8x24 external threads.

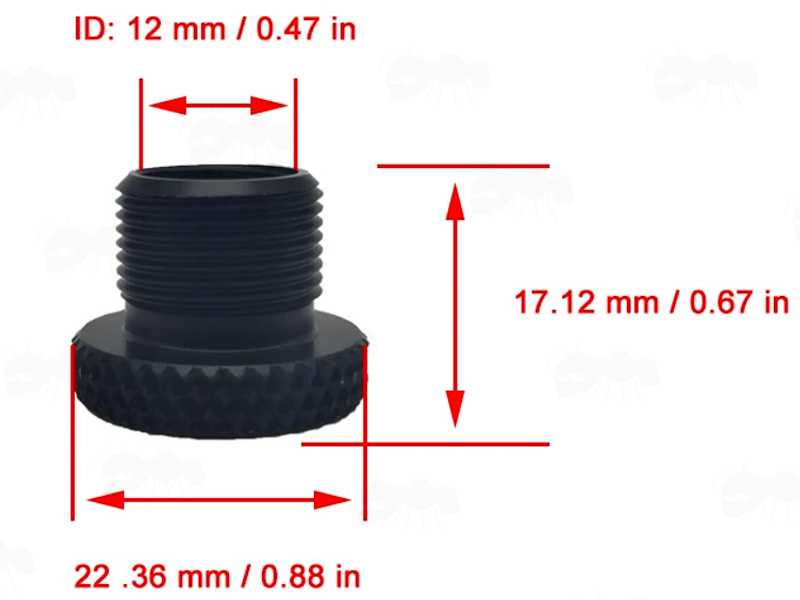

The through diameter ~ 12mm.
Outer diameter ~ 22.36mm.
Overall length ~ 17.12mm.
The external 5/8x24 threaded end is 12mm long.
Precision CNC manufacturing ensures a precise fit and easy installation.
Manufactured from high grade hard aluminium alloy.
Knurled chequered grip machined edged for easy installation.
The majority of UK airguns, rimfire rifles and some smaller calibre centerfire rifles (.17, .17HMR, .22WMR, .22LR, .222Rem, .243Win) are usually 1/2 UNF (1/2x20 TPI), if threaded at all, and of course if not re-threaded.
The majority of larger calibers (.30>) are usually 1/2x28 UNEF or 5/8x24 as the next most common.
Please always verify the adapter and the muzzle device you have are compatible, and are suitable for the calibre and always insure a perfect alignment before use.
Also available ~ M14 Left Hand <-> Right Hand Rifle Barrel Thread Adapters.
