RIFLE THREADED BARREL ADAPTER
For rifle silencers / moderators / muzzle brakes.
THREADED RIFLE BARREL ADAPTER
M14x1 CCW TO 1/2″ x 28 UNEF
£12.00p each
External thread ~ 1/2x28 UNEF.
Internal thread ~ M14x1mm CCW.
OPTION C
1/2″ x 28 UNEF TO M14x1 CCW
£12.00p each
External thread ~ M14x1mm CCW.
Internal thread ~ 1/2x28 UNEF.
OPTION D
Choice of adapter for M14x1 Left-Hand to 1/2"x28 UNEF or vice versa.
For fitting alternative silencers / moderators / muzzle brakes.
These options are slightly longer than the other options we have.
Made of high quality aluminium with black anodised finish.
Overall diameter ~ 20mm.
Overall length ~ 32mm.
Body length ~ 20mm.
Thread length ~ 12mm.
Knurling for a firm grip.
Weighs ~ 11 grams.
The majority of UK air rifles are 1/2 UNF (1/2x20 TPI).
UK firearms are usually either 1/2x20 UNF or 1/2x28 UNEF.
The majority of USA .223 rifles are 1/2 UNEF (1/2x28 TPI).
M14x1 left hand are usually for AK rifles, but please note that the wide range of AK rifle manufacturers use several different thread types: 24x1.5mm L/H, 22.5x1.5mm, 13x1mm R/H etc.
M14 threads are also the most popular for airsoft rifles, AEGs and GBBs, they are usually male 14mm CCW (LH / Left Hand) thread, however please note that some brands use 14mm CW (RH / Right Hand) thread, we do have adapters to convert if needed: CW ◄► CCW Adapters.
1/2-20 TPI = UNF ~ Unified National Fine thread.
1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.
M14 x 1LH (Left Hand) are 14mm CCW.
Left hand (LH) / anticlockwise / counter-clockwise (CCW) / negative (-) tighten by turning anticlockwise.
This applies to the silencer (etc) rotating, when looking at the front of the muzzle.
Please Note: Thread protectors also available but not included.
SPECIAL OFFER:
Need a thread protector at the same time?
Use Promo Code ~ SATGAddon ~ for 50% off:
Thread protectors page link ~ HERE
Also available ~ Rifle Muzzle Thread Guards.

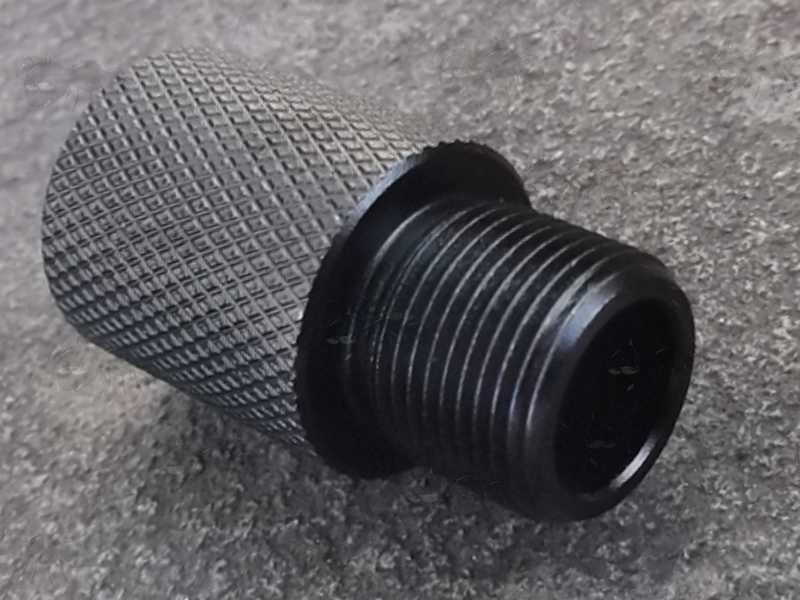

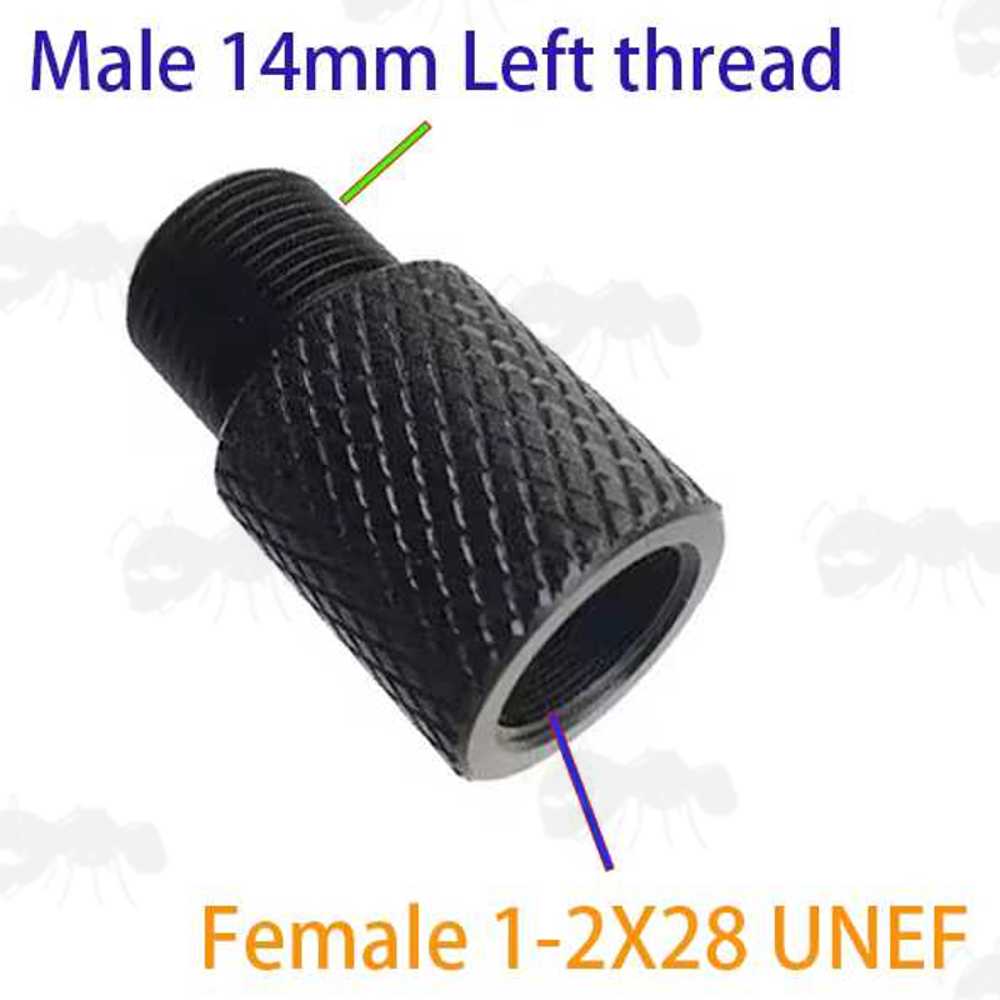

OPTION C ~ M14x1 LEFT HAND TO 1/2 x 28 UNEF:

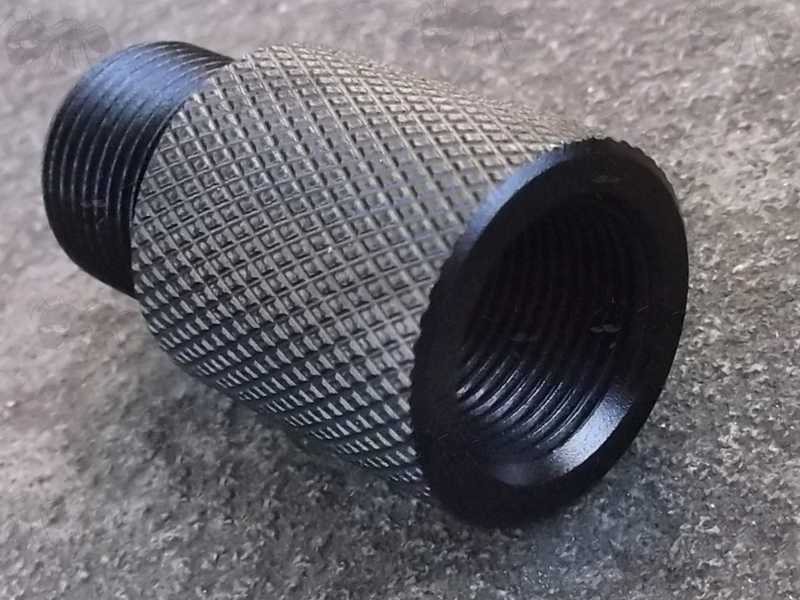

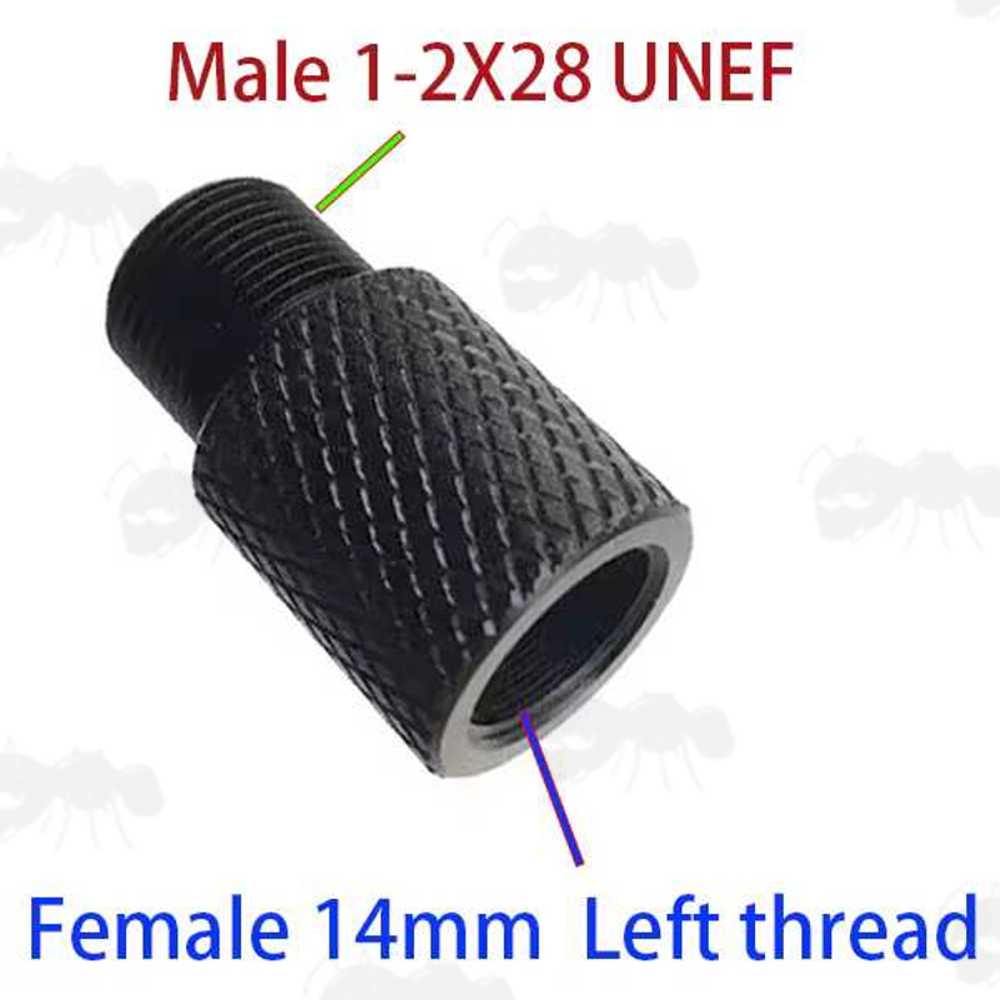

OPTION D ~ 1/2 x 28 UNEF TO M14x1 LEFT HAND:
