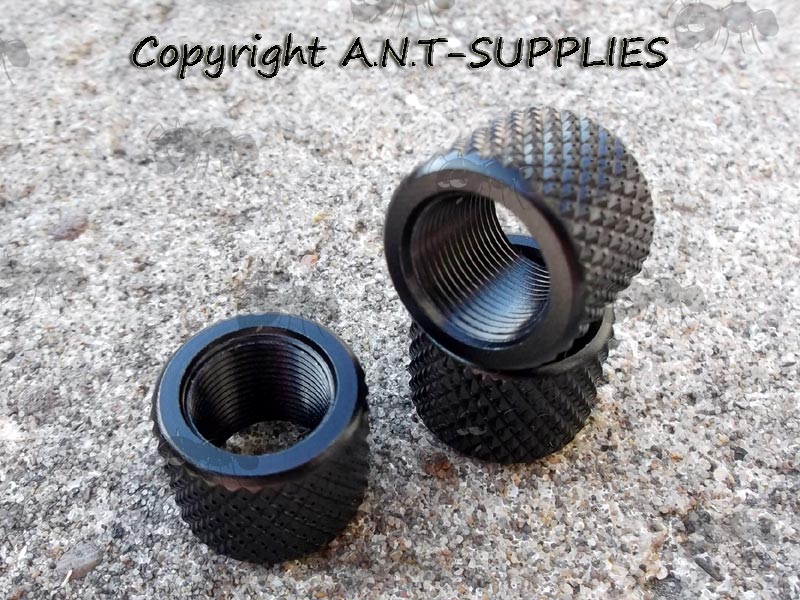

RIFLE MUZZLE THREAD GUARDS
For the protection of barrel muzzle thread.
RIFLE MUZZLE THREAD GUARDS

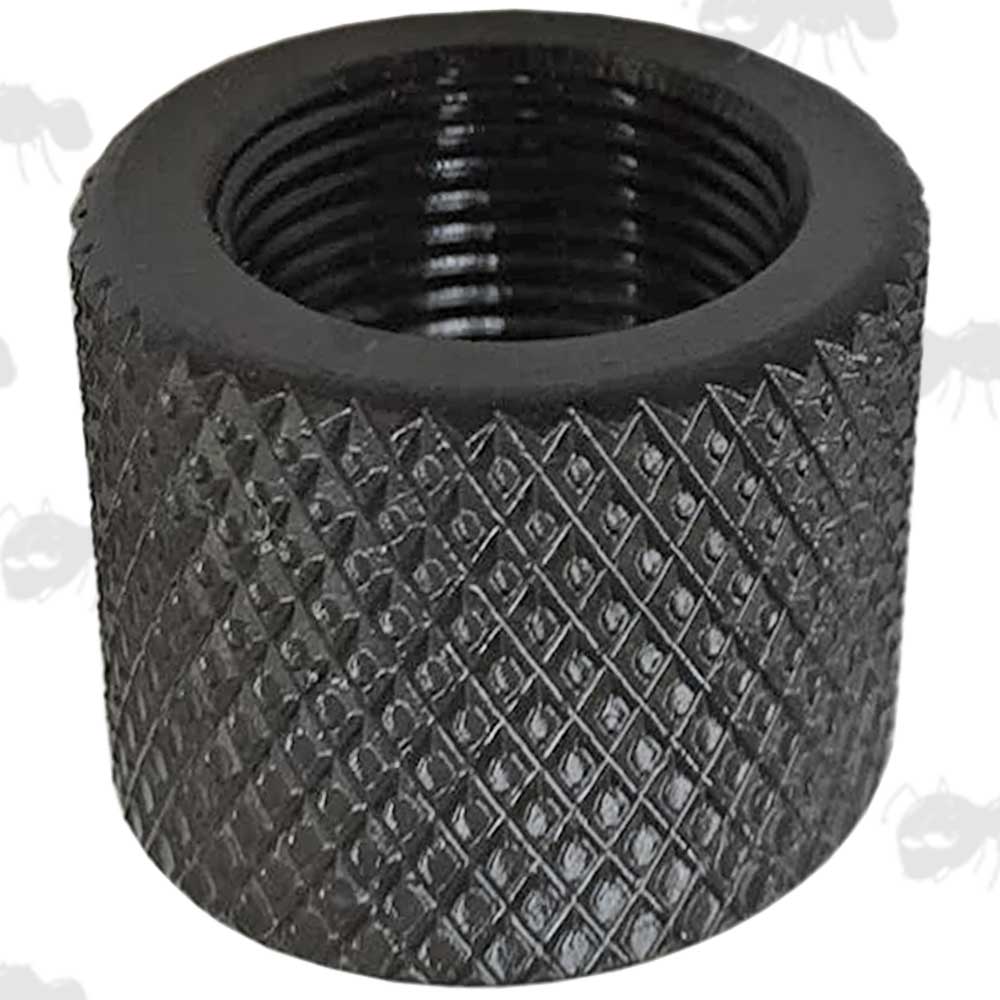

.223 CAL ~ 1/2-28 ~ STEEL£6.00p each
Colour ~ Black.
Overall length ~ 15mm.
Overall diameter ~ 19.5mm.
Each weighs 15 grams.

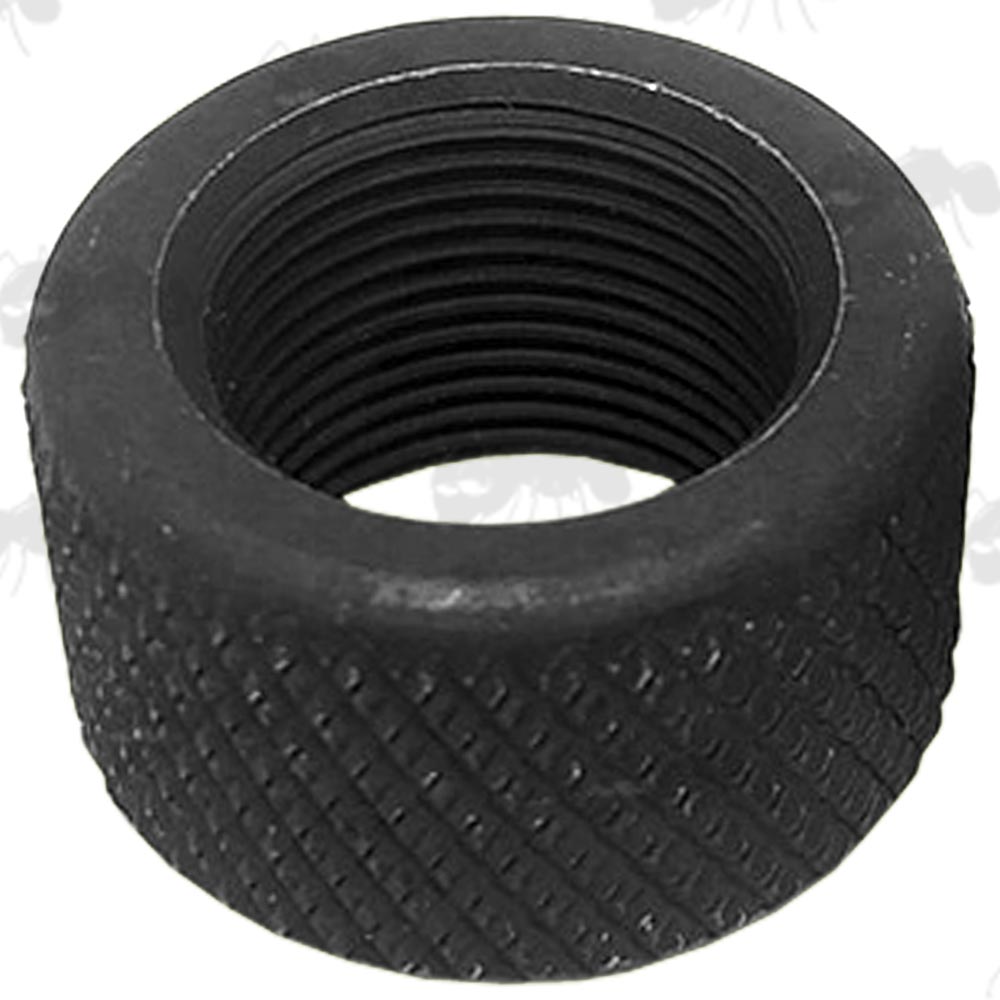

.308 CAL ~ 5/8-24 ~ STEEL£6.00p each
Colour ~ Black.
Overall length ~ 20mm.
Overall diameter ~ 24mm.
Each weighs 33 grams.

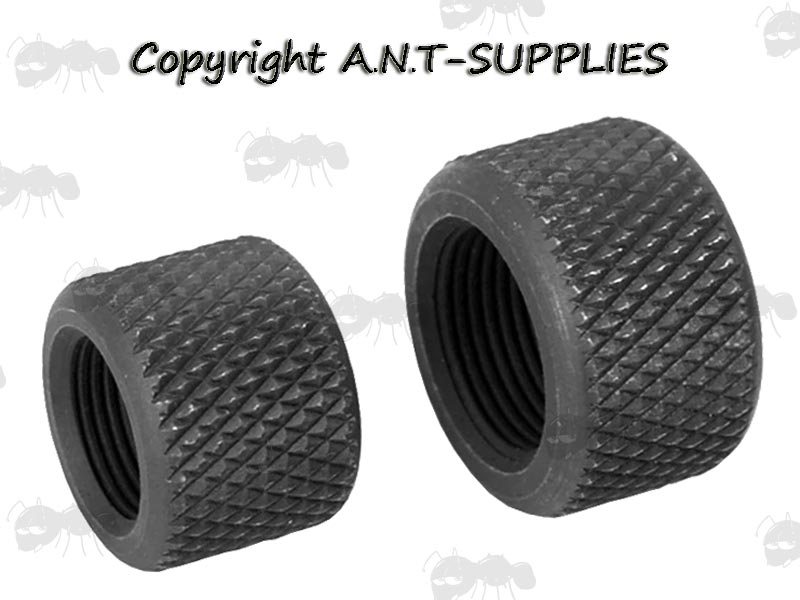

Choice of 1/2″ ~ 28 TPI or 5/8″ ~ 24 TPI American thread protector.
These steel guards have a matt finish, alloy guards usually have a glossier finish.
Choice for up to .223 or .308 cal and over.

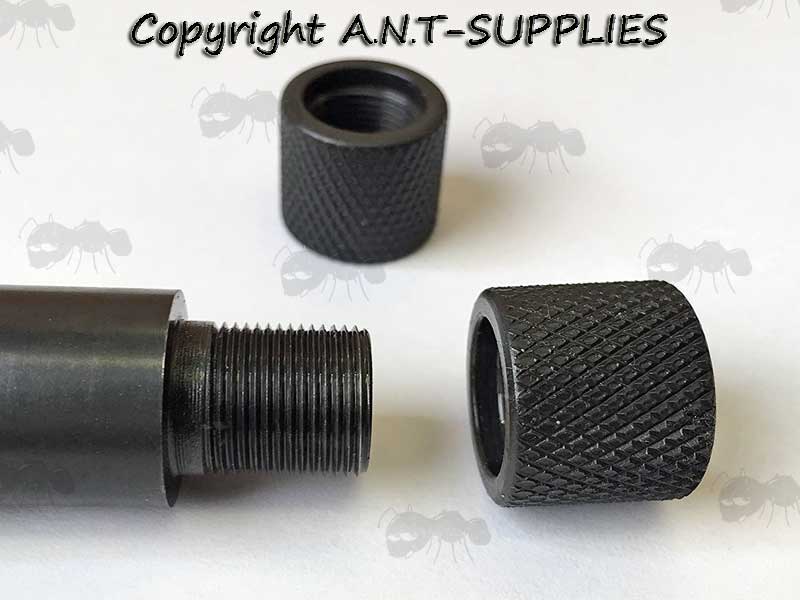

To protect the muzzles / adapters threads when muzzle brake, flash hiders, compensator, etc are removed.
1/2-20 TPI = UNF ~ Unified National Fine thread.
1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.
5/8-18 TPI = UNF ~ 18 threads per inch.
5/8-24 TPI = UNEF ~ 24 threads per inch.
Although we would have expected it to, on last testing the 5/8″ x 24 UNEF guard wont fit the Ruger PRC, the guard internal diameter was slightly too narrow to fit.
Please contact us for other thread guards and we will see what we can do:
1/2″-20 UNF or 1/2″-28 UNEF alloy guards.
M13.5x1 CCW guard for 9mm Glock, H&K, Beretta.
M14x1 CCW (LH) or CW (RH).
M16x1 CCW or CW steel guards for .45 OEM Glock, Heckler and Koch, Beretta and more.
Also available ~ Ruger Muzzle Thread Adapters.
STEEL .223 Cal (1/2"-28TPI) AND .308 (5/8"-24TPI):
Knurled grip design.
