Ant Hill >  Scopes / Sights / Optics >  Scope Ring Mounts >  Hawke >  Two Piece 20mm Match Mounts
Hawke Optics Sight Mounts, Scope Rings and Rail Bases Banner

TWO PIECE MATCH MOUNTS

For Hawke scopes and sights.

Hawke Optics Logo

HAWKE TWO PIECE WEAVER MATCH MOUNTS

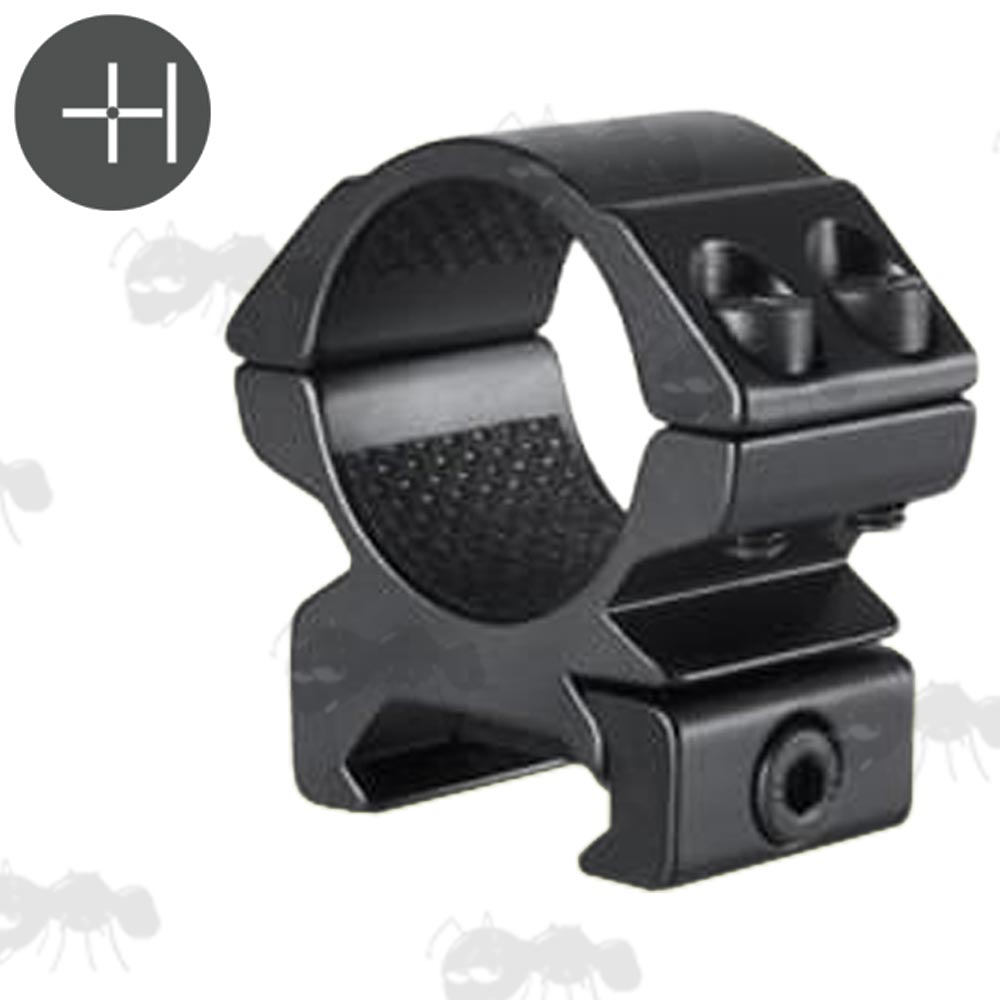

22112Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, Low Profile Design for 25mm Diameter Scope Tubes, Model 22 112LOW PROFILE ~ 25mm

£30.00p per pair

For 1" / 25mm diameter body tube rifle scopes.

Height ~ 40mm / 1.6″.

Weight ~ 71 grams / 2.5oz.

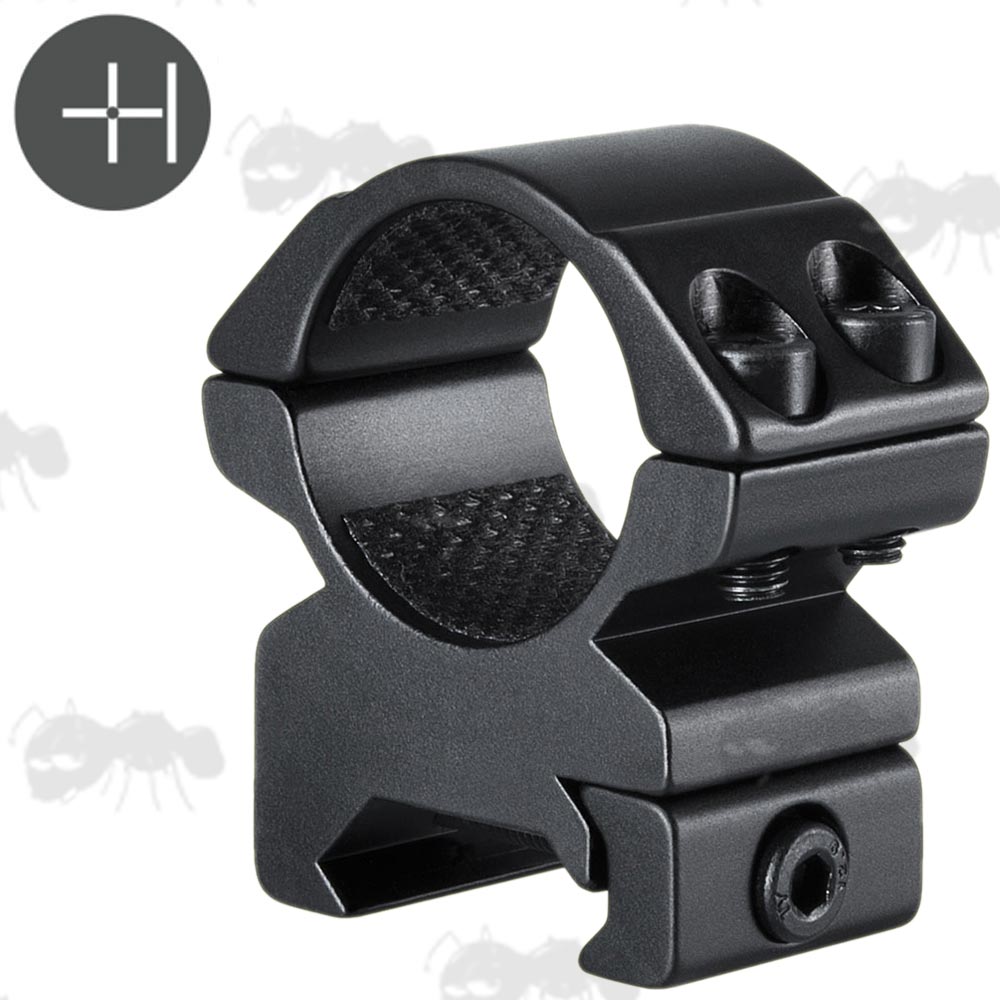

22113Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, Medium Profile Design for 25mm Diameter Scope Tubes, Model 22 112MEDIUM PROFILE ~ 25mm

£31.00p per pair

For 1" / 25mm diameter body tube rifle scopes.

Height ~ 44mm / 1.7″.

Weight ~ 82 grams / 2.9oz.

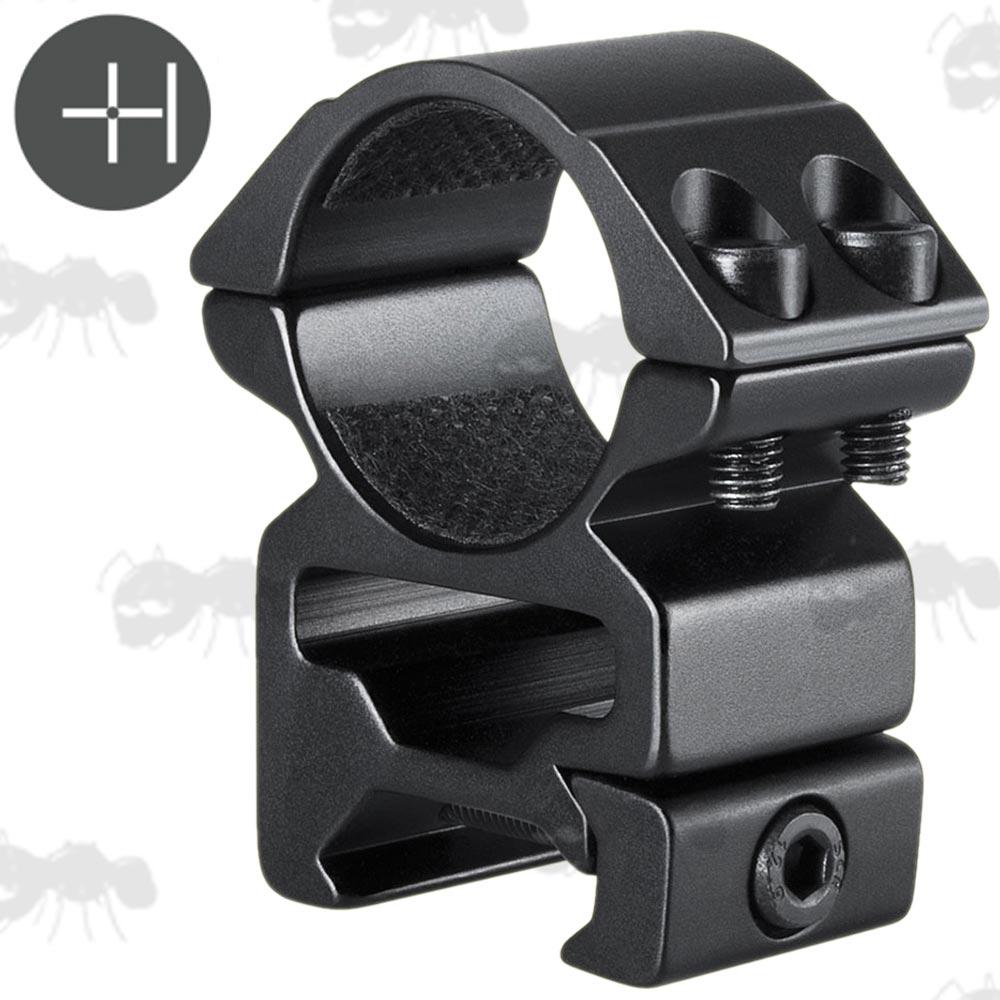

22114Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, High Profile Design for 25mm Diameter Scope Tubes, Model 22 112HIGH PROFILE ~ 25mm

£32.00p per pair

For 1" / 25mm diameter body tube rifle scopes.

Height ~ 53mm / 2.1″.

Weight ~ 88 grams / 3.1oz.

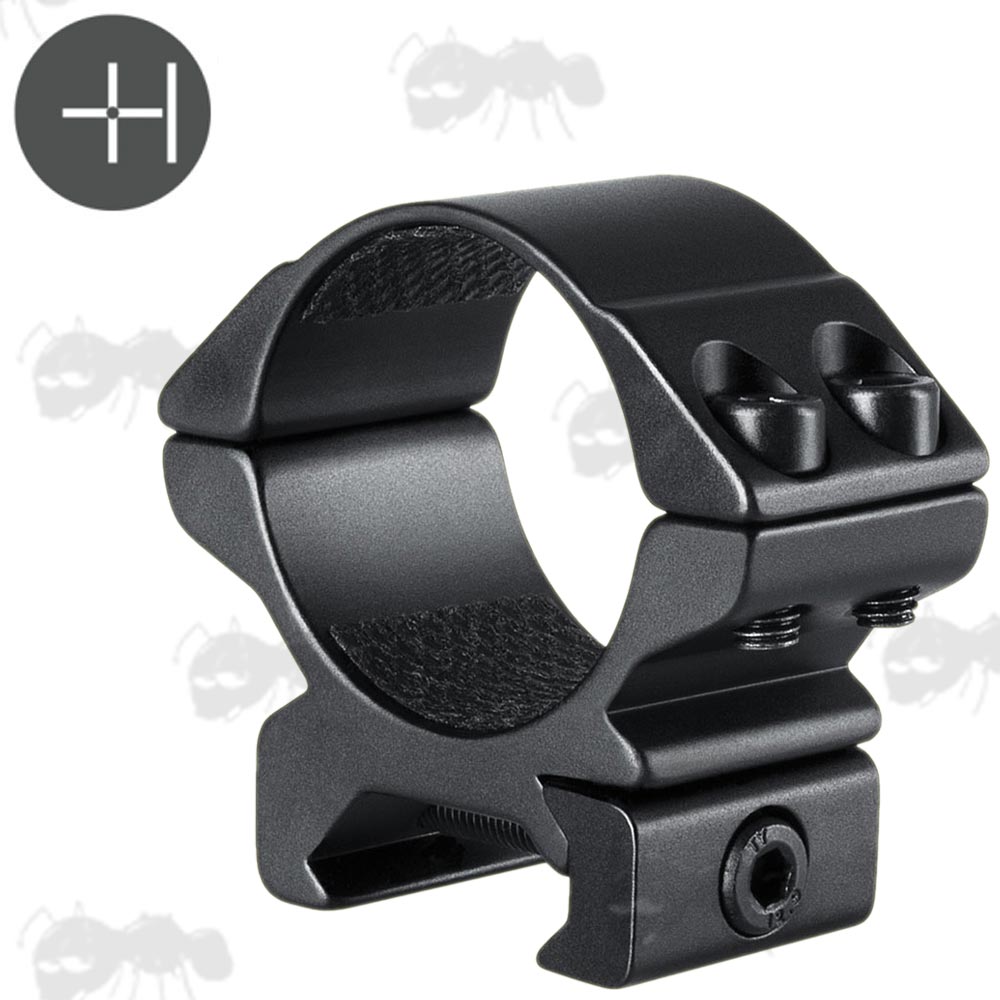

22115Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, Low Profile Design for 30mm Diameter Scope Tubes, Model 22 117LOW PROFILE ~ 30mm

£35.00p per pair

For 1 3/16" / 30mm diameter body tube rifle scopes.

Height ~ 44mm / 1.7″.

Weight ~ 84 grams / 3.0oz.

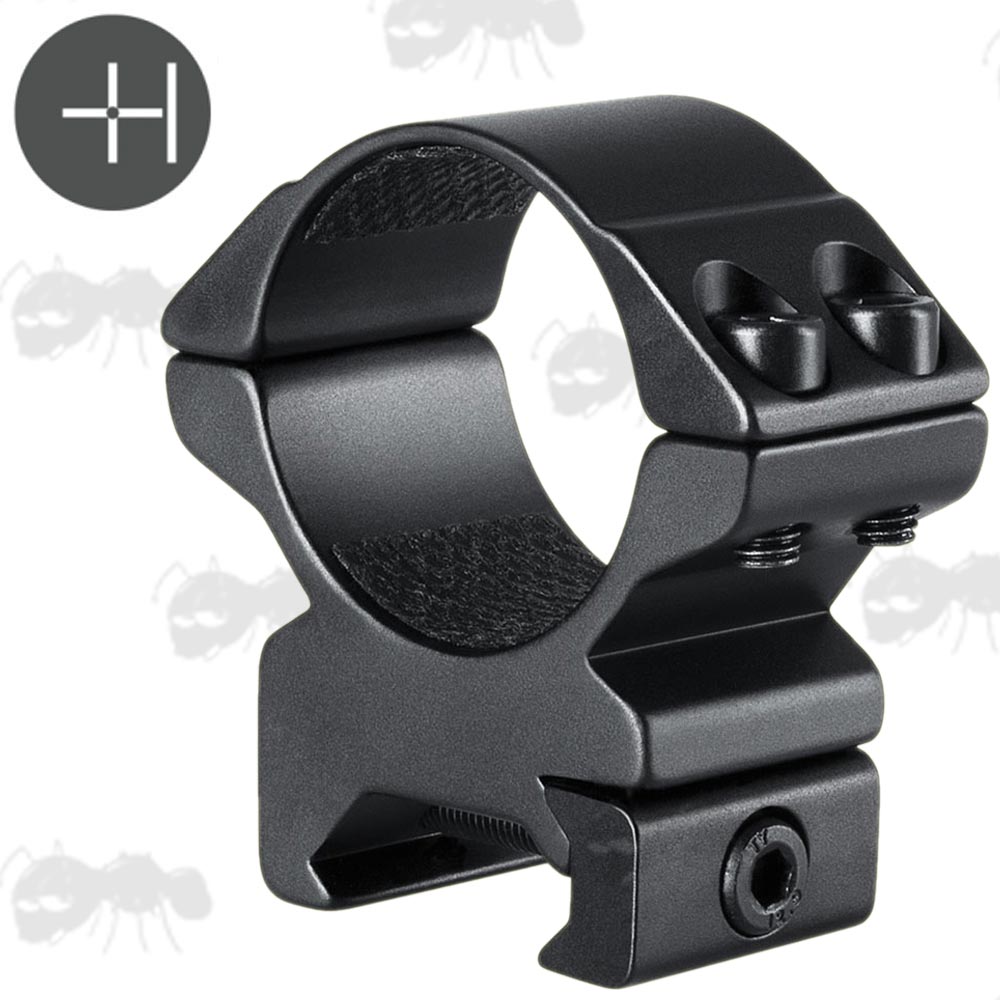

22116Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, Medium Profile Design for 30mm Diameter Scope Tubes, Model 22 117MEDIUM PROFILE ~ 30mm

£36.00p per pair

For 1 3/16" / 30mm diameter body tube rifle scopes.

Height ~ 48mm / 1.9″.

Weight ~ 82 grams / 2.9oz.

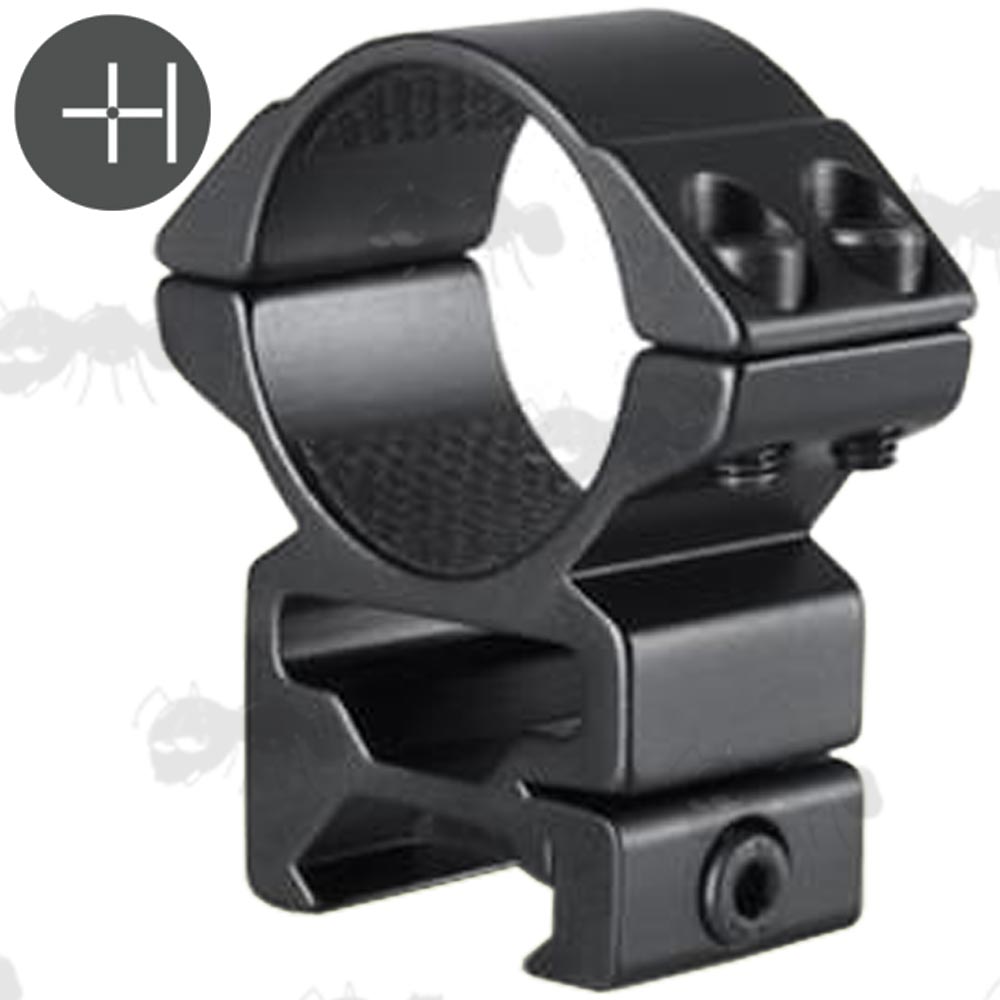

22117Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, High Profile Design for 30mm Diameter Scope Tubes, Model 22 117HIGH PROFILE ~ 30mm

£37.00p per pair

For 1 3/16" / 30mm diameter body tube rifle scopes.

Height ~ 53mm / 2.1″.

Weight ~ 88 grams / 3.1oz.
H Reticle Style Hawke Optics Square Logo

FLAT RATE OF £9 TRACKED DELIVERY FOR
ANY MIX OF HAWKE BRANDED PRODUCTS

FREE DELIVERY ON £300+ ORDERS

Options
Condition: New

Double hex screws to hold your scope firmly in place.

Two piece design.

20mm wide Weaver / Picatinny Match mounts with crossbar for additional security.

Internal cushion tape prevents marking and damage.

High grade aluminium anodized in matte black.

Precision engineered from high grade aluminium with rounded edges prevent scope damage.

CAUTION: Ensure your gun is not loaded ant the action is open.

Always practice safe handling procedures.

  1. If necessary attach a base to your rifle/pistol according to the manufacturer’s instructions.
  2. Place the Hawke rings onto your base or rail.
    Using the enclosed hex key, tighten the screws on the side clamp.
  3. Remove the top clamps and place the scope onto the rings.
    Replace the top clamps but do not tighten.
  4. With the gun unloaded and the action open, hold the gun in a normal shooting position and move the scope forward or backward to obtain the best eye relief (3-4 inches approx).
  5. When correct eye relief is obtained, rotate the scope until the reticle is vertically aligned with the gun.
  6. Alternately tighten the screws that hold the top clamps to the rings.
    Do not over tighten.
    16 in/lbs (1.33 ft/lbs, 1/8 Nm) for the top screws and 30 in/lbs (2.5 ft/lbs, 3.4Nm) for the side clamp screws.
  7. Your gun and scope are now ready to be zeroed.

Also available ~ SportsMatch Two Piece Dovetail Rail Scope Mounts.

MODEL 22 112 LOW PROFILE ~ 25mm

Technical Specs Diagram of a Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, Low Profile Design for 25mm Diameter Scope Tubes, Model 22 112

MODEL 22 113 MEDIUM PROFILE ~ 25mm

Technical Specs Diagram of a Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, Medium Profile Design for 25mm Diameter Scope Tubes, Model 22 113

MODEL 22 114 HIGH PROFILE ~ 25mm

Technical Specs Diagram of a Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, High Profile Design for 25mm Diameter Scope Tubes, Model 22 114

MODEL 22 115 LOW PROFILE ~ 30mm

Technical Specs Diagram of a Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, Low Profile Design for 30mm Diameter Scope Tubes, Model 22 115

MODEL 22 116 MEDIUM PROFILE ~ 30mm

Technical Specs Diagram of a Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, Medium Profile Design for 30mm Diameter Scope Tubes, Model 22 116

MODEL 22 117 HIGH PROFILE ~ 30mm

Technical Specs Diagram of a Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, High Profile Design for 30mm Diameter Scope Tubes, Model 22 117

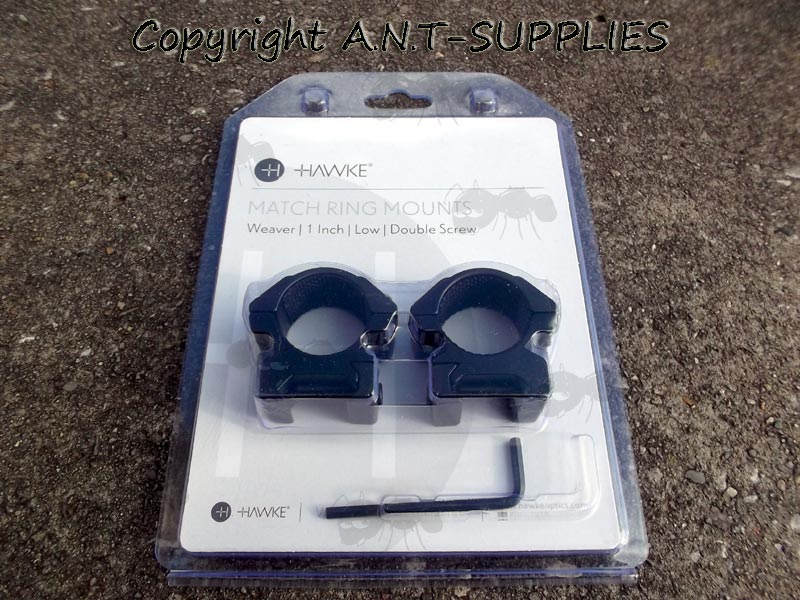

Pair of Hawke Two Piece Weaver Rail Scope Match Mounts, Low Profile Design for 25mm Diameter Scope Tubes, Model 22 112 in Packaging
