OIL FILTER THREAD ADAPTER
For rifle barrel maintenance.
RIFLE THREADED MUZZLE ADAPTER

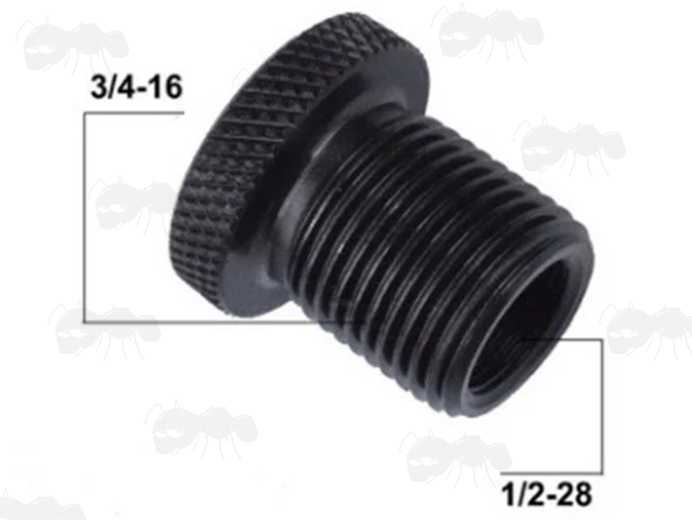

1/2" x 28 TPI TO 3/4" x 16 TPI£9.00p each
AVAILABLE BY REQUEST
Overall diameter ~ 25mm.
Overall length ~ 24mm.
External thread ~ 3/4x16.
Internal thread ~ 1/2x28.
Knurling for a firm grip.
Made from steel.
Weighs ~ 36 grams.
OPTION G

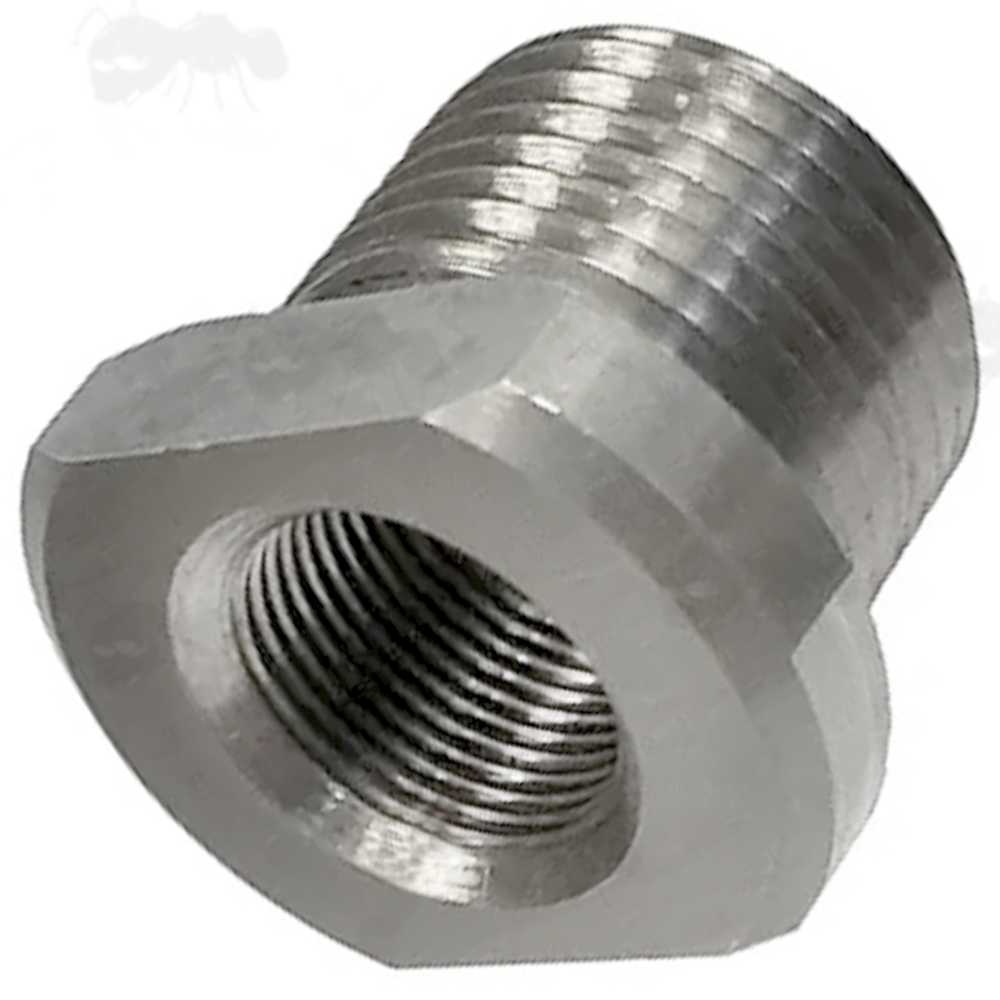

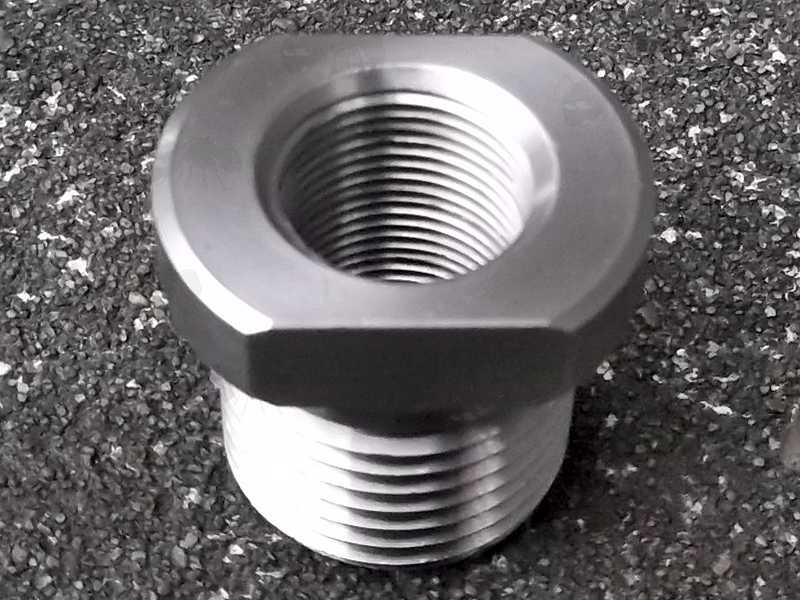

1/2″ x 28 TPI TO 13/16″ x 16 TPI£9.00p each
AVAILABLE BY REQUEST
Overall diameter ~ 20mm.
Overall length ~ 23mm.
External thread ~ 13/16x16.
Internal thread ~ 1/2x28.
Width from flat edges ~ 25.5mm.
Made from steel.
Weighs ~ 47 grams.
OPTION H
5/8″ x 24 TPI TO 13/16″ x 16 TPI£9.00p each
AVAILABLE BY REQUEST
Overall diameter ~ 20mm.
Overall length ~ 23mm.
External thread ~ 13/16x16.
Internal thread ~ 5/8x24.
Width from flat edges ~ 25.5mm.
Made from steel.
Weighs ~ 35 grams.
OPTION I
Choice of adapters for threaded muzzles.
Made of high quality metal with black oxide finish.
For fitting a DIY oil filters solvent trap.
Many barrel cleaning solvent traps are 5/8″x24 TPI threaded.
Many metal oil filters (Chrysler, Ford, Jeep, etc) are 3/4″x16 TPI UNF threaded.
Slightly less common are 13/16″x16 TPI threaded filters (AMC, GM, WIX).
The 5/8x24 TPI also known as 5/8 UNEF is the most common thread for .30 and larger calibre firearms.
The majority of USA .223 rifles are 1/2 UNEF (1/2×28 TPI), the closest European equivalent is M14x1 (M14x100 RH).
1/2-20 TPI = UNF ~ Unified National Fine thread.
1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.
5/8-18 TPI = UNF ~ 18 threads per inch.
5/8-24 TPI = UNEF ~ 24 threads per inch.
A 3/4″ hex fitting should fit with a 19mm wrench and 13/16″ with a 20mm.
Also available ~ Threaded Muzzle Adapters and Soda Bottle Solvent Trap Thread Adapters.
