MULTI-RAIL FITTING AIRGUN MOUNT

For Dovetail or Weaver / Picatinny rails.

MULTI-RAIL ONE PIECE AIRGUN MOUNT

One Piece, Low-Profile 30mm Diameter Scope Mount for Weaver / Picatinny and Dovetail Rails with 25mm Ring Adapters
£15.00p each

Condition: New

Multi-rail fitting double clamp scope ring mount.

One piece design.

For 30mm diameter scope, with 1 inch / 25.4mm adapters included.

9mm-11mm or 20mm Weaver / Picatinny rail fitting, with the flip-over clamps.

Flat profile base, so may not be suitable to all curved profile receiver sight rails.

Overall height ~ 48mm.

Elevation ~ 14mm.

Length ~ 100mm.

Width ~ 50mm.

Distance between rings ~ 58mm.

Weighs ~ 160 grams.

The clamping jaws are designed to be turned around to fit either Dovetail or Weaver / Picatinny wide rails.

High-grade aluminium alloy construction with a matte black finish.

Please Note: they wont fit wide dovetail rails.

Also available ~ Multi Rail Bases and Multi Rail Adapters.

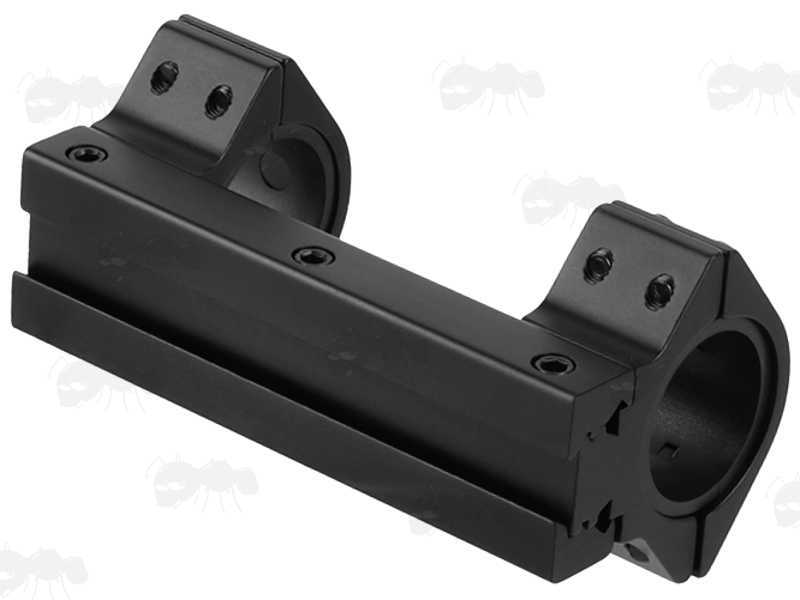

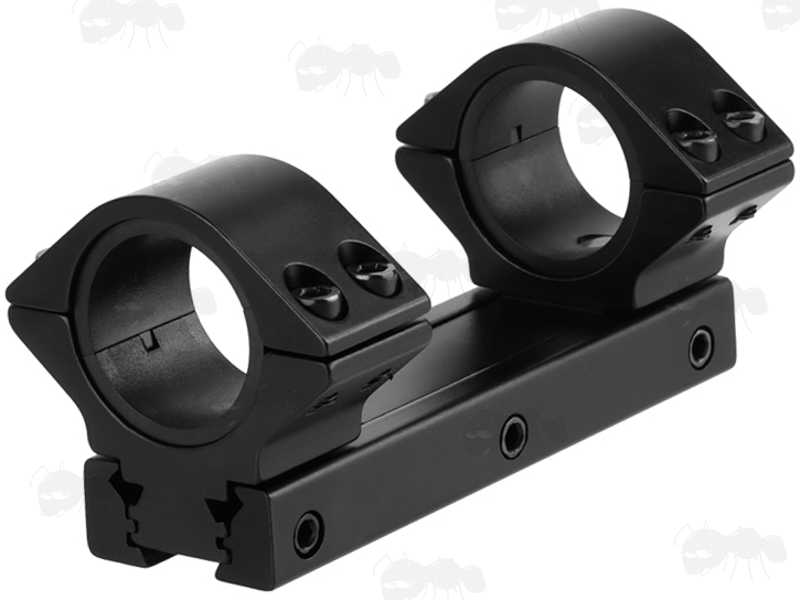

One Piece, Low-Profile 30mm Diameter Scope Mount for Weaver / Picatinny and Dovetail Rails with 25mm Ring Adapters

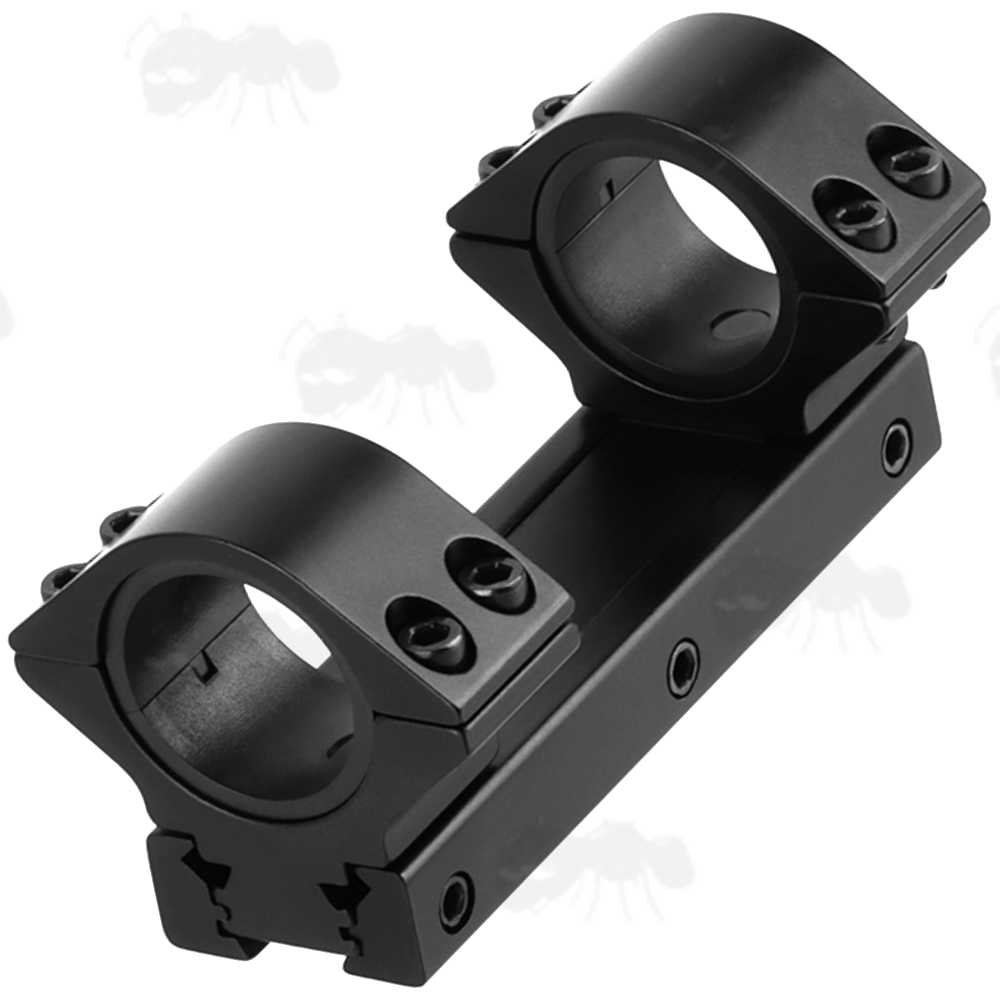

Base Rail Fitting Profile View of The One Piece, Low-Profile 30mm Diameter Scope Mount for Weaver / Picatinny and Dovetail Rails with 25mm Ring Adapters

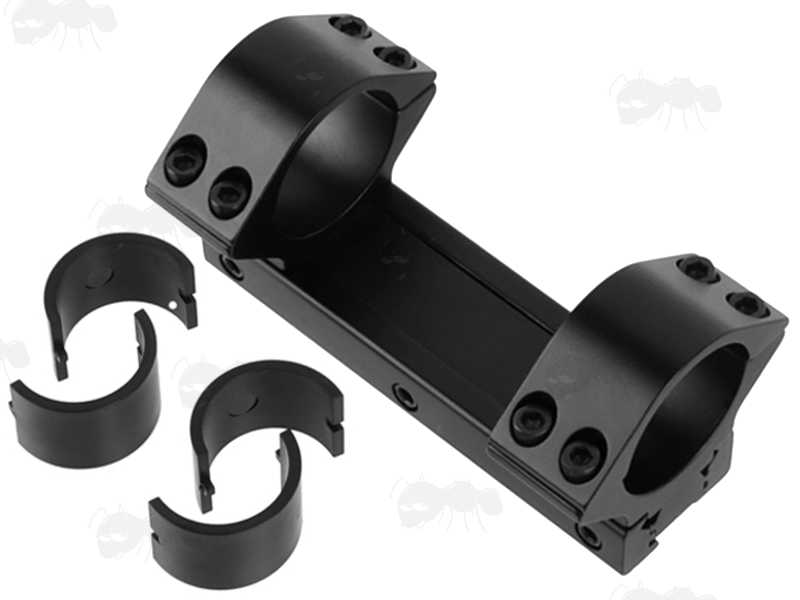

Dismantled View Of The One Piece, Low-Profile 30mm Diameter Scope Mount for Weaver / Picatinny and Dovetail Rails with 25mm Ring Adapters

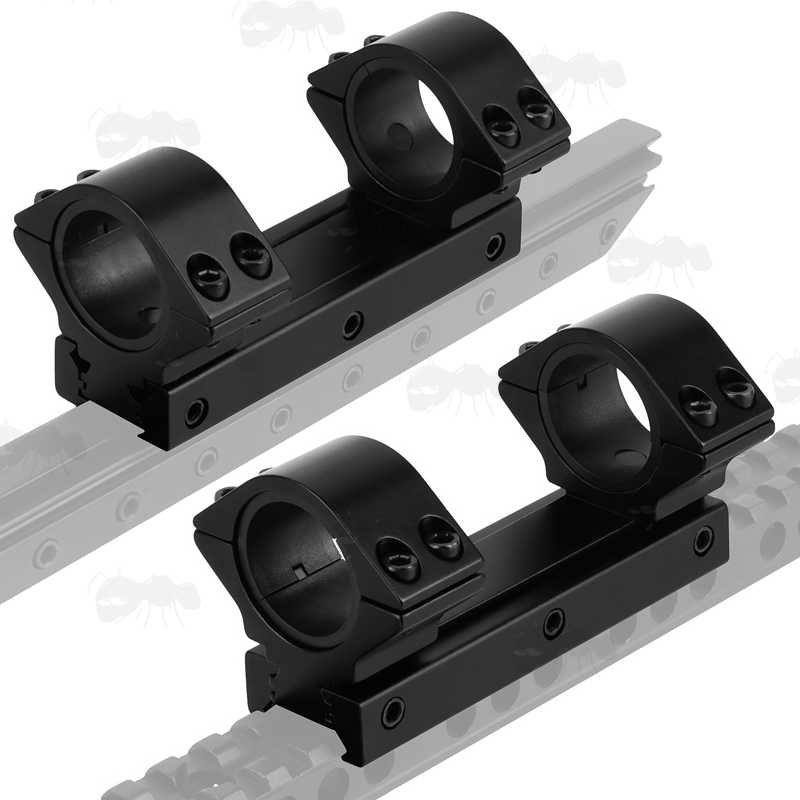

One Piece, Low-Profile 30mm Diameter Scope Mount with 25mm Ring Adapters, Shown Fitted to Both a Weaver / Picatinny and Dovetail Rail

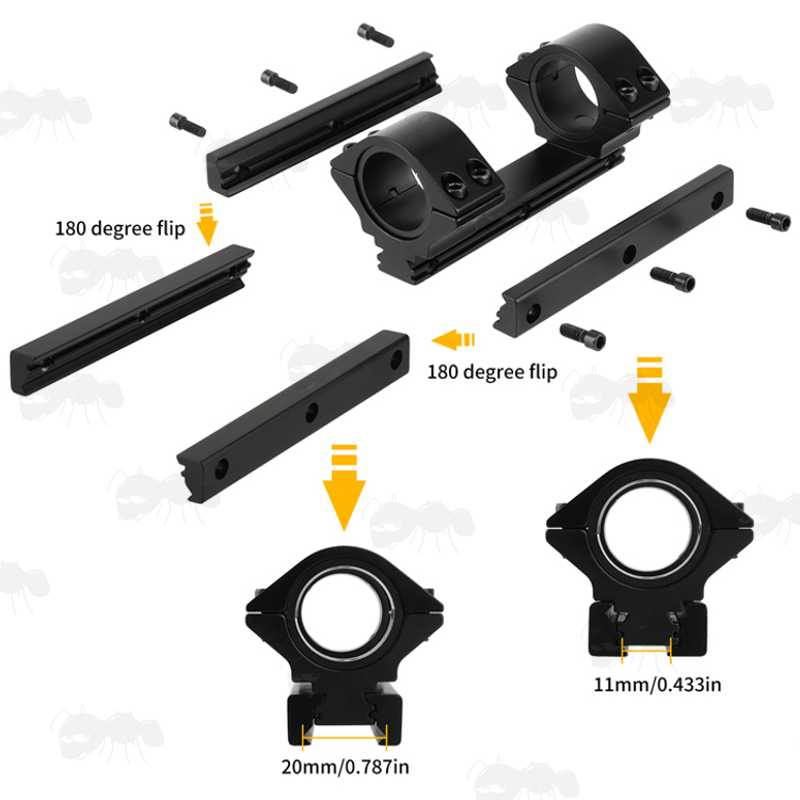

Dismantled View Of The One Piece, Low-Profile 30mm Diameter Scope Mount for Weaver / Picatinny and Dovetail Rails with 25mm Ring Adapters

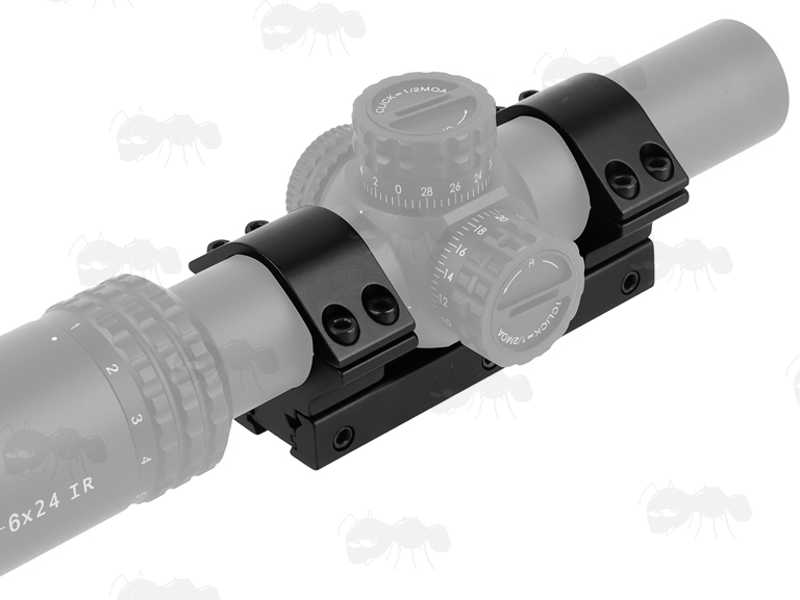

One Piece, Low-Profile 30mm Diameter Scope Mount for Weaver / Picatinny and Dovetail Rails, Shown Fitted to a Scope

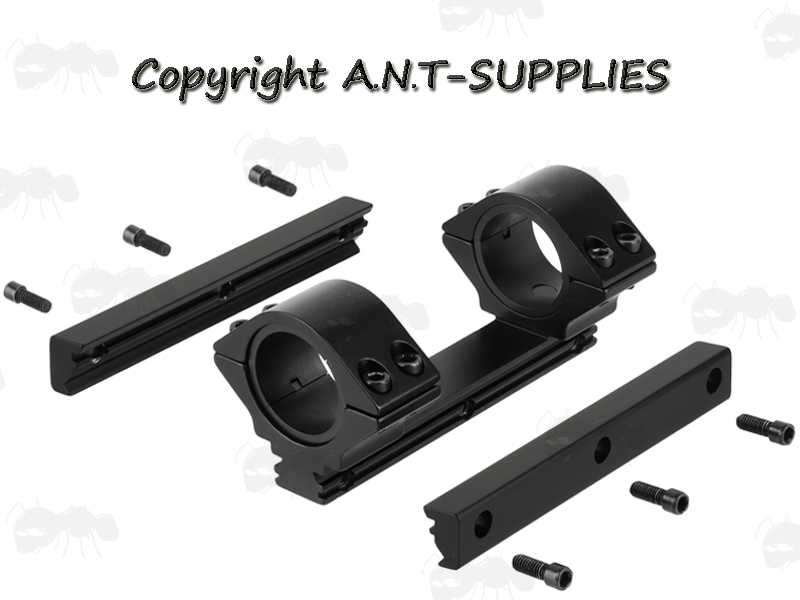

Dismantled View Of The One Piece, Low-Profile 30mm Diameter Scope Mount for Weaver / Picatinny and Dovetail Rails with 25mm Ring Adapters
