TIKKA PICATINNY RAILS
T3, T3X, T3 Lite steel rail.

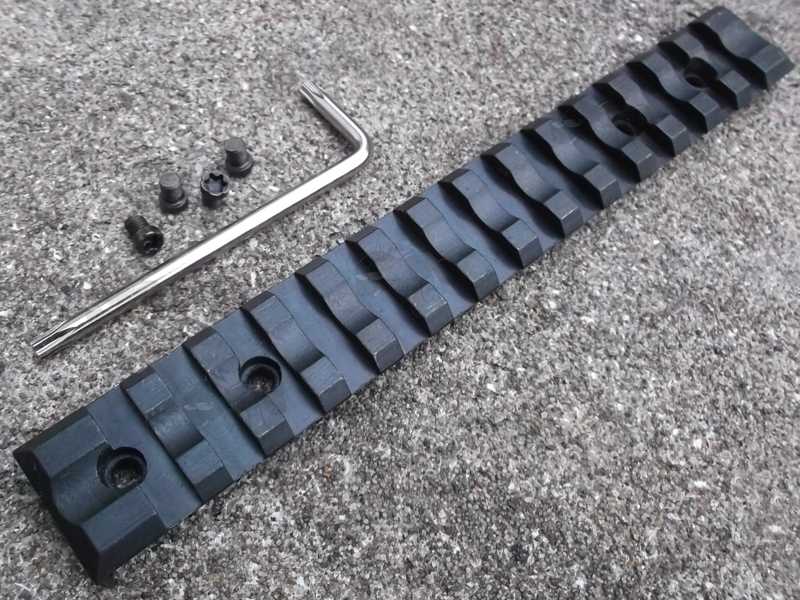

TIKKA T3 STEEL PICATINNY RAIL
£36.00p each
Condition: New
One-piece design Picatinny sight base rail.
It should fit the Tikka T3, Tikka T3X, Tikka T3 Lite and similar.
Made from 45# steel.
Length ~ 156mm / 6.1".
Overall height ~ 6mm.
14 slots.
MOA ~ 0.
Base profile ~ flat.
Complete with 4 x M3.5x0.35 torx head screws.
Weight approx 105 grams / 3.7oz.
The rail includes screws with 6mm long threads and the correct torx key tool.
It should accept both Picatinny and Weaver style mounts.
The outer holes are 126mm apart (center to center).
The inner holes are 83mm apart (center to center).
Please Note: we do not believe these would fit the T1X, as the rail needed for those would likely need to be shorter and have a curved base profile for the receiver.
They maybe suitable for the T3x TAC A1, as they should be short enough to not be in the way of the railed handguard.
