WEAVER / PICATINNY RING CAPS
For converting scope ring mounts to fit rail mounted accessories.

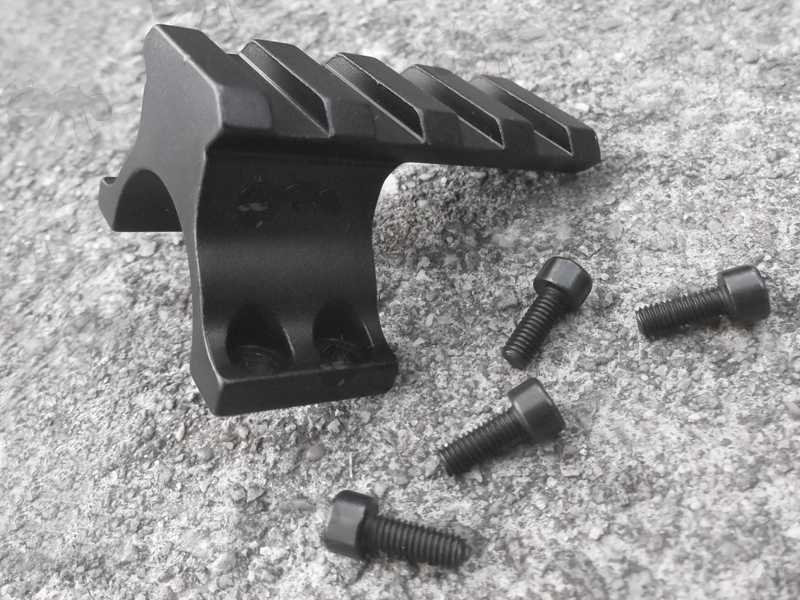

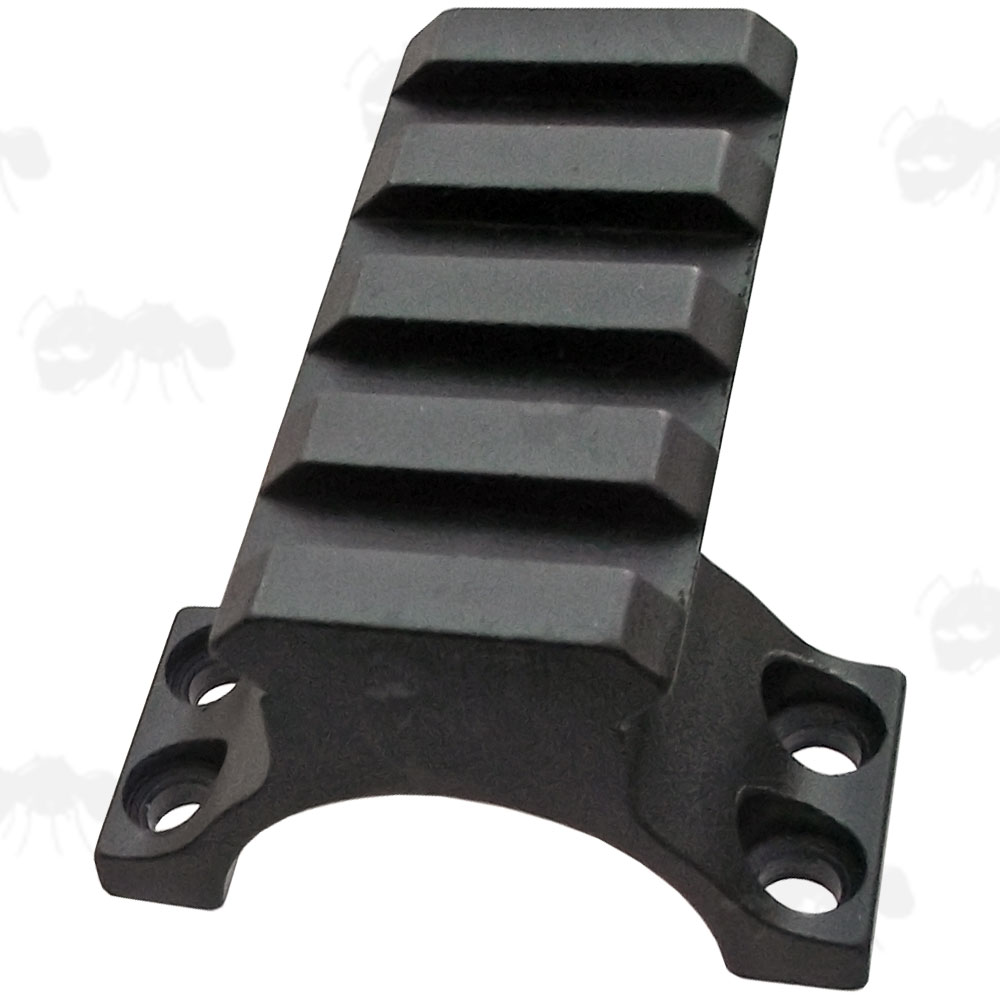

RAILED SCOPE MOUNT TOP RINGS
25mm DOUBLE CLAMPED£8.40p each or
£14.28p for two
Ring length ~ 18mm.
Ring width ~ 39mm.
Rail length ~ 45mm.
Elevation ~ 11mm.
Fixing hole centres ~ 8.5mm x 32mm.
Weight ~ 20 grams.

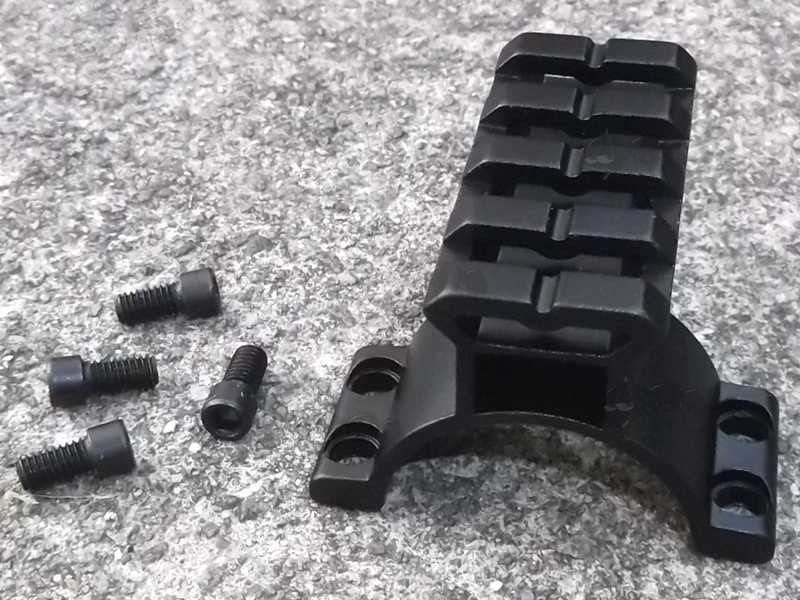

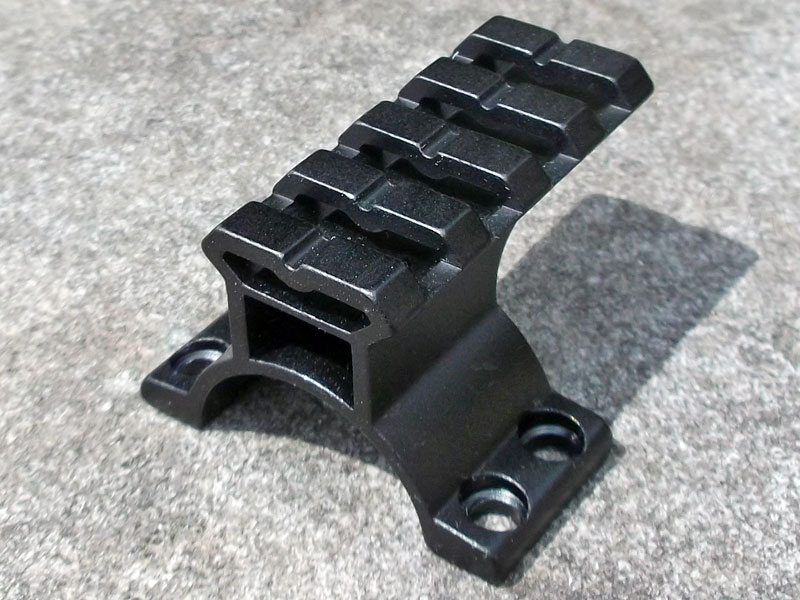

25mm HIGH ~ SEE-THROUGH£8.40p each or
£14.28p for two
SOLD OUT
Ring length ~ 20mm.
Ring width ~ 41mm.
Rail length ~ 45mm.
Elevation ~ 14mm.
Fixing hole centres ~ 10mm x 33.5mm.
Weight ~ 12 grams.

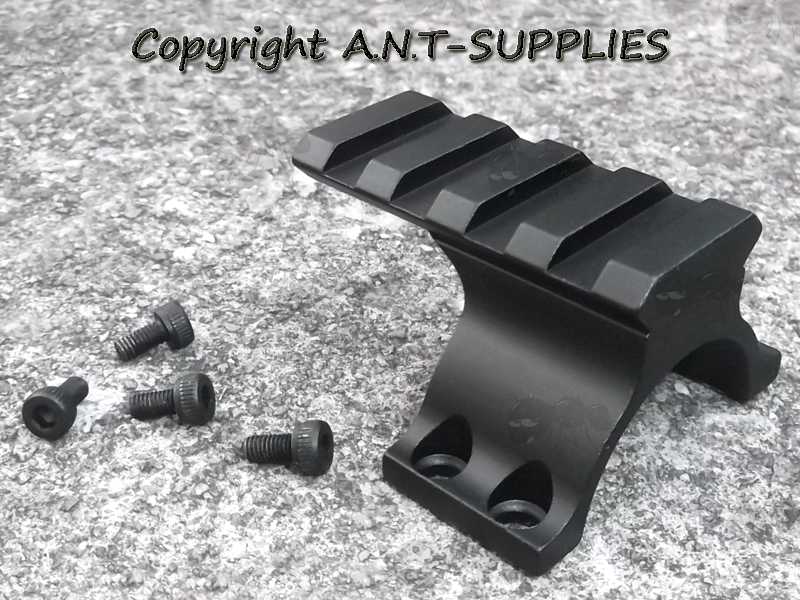

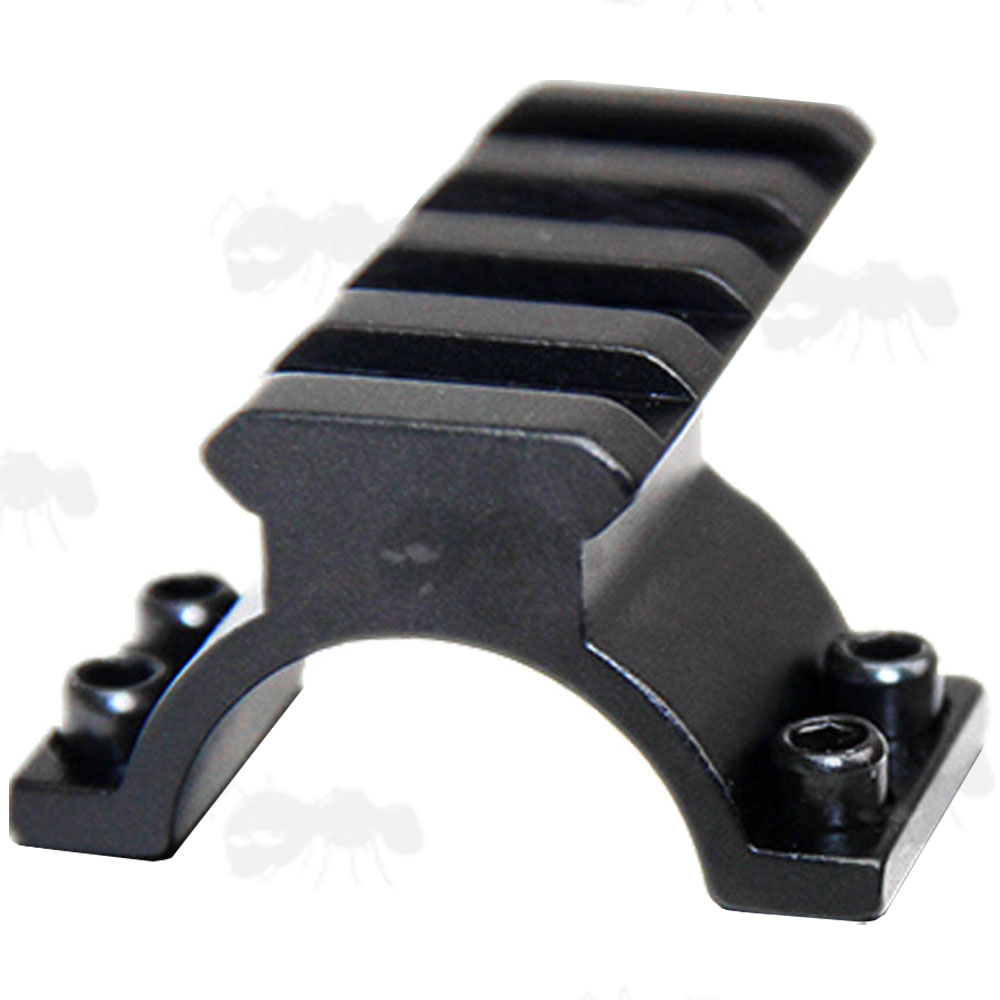

30mm DOUBLE CLAMPED£9.00p each or
£15.29p for two
Ring length ~ 18mm.
Ring width ~ 43mm.
Rail length ~ 45mm.
Elevation ~ 11mm.
Fixing hole centres ~ 8.5mm x 36.5mm.
Weight ~ 18 grams.
For converting scope mounts to have a top Weaver / Picatinny accessory rail.
Provides a 20mm wide Weaver / Picatinny rail.
Precision machined aluminium construction.
Black anodised finish.
Designed for socket head screws.
Usually the single clamped model has M4 thread screws and double clamped are M3.
With screw holes between 4mm and 5mm in diameter.
Allen key included.
Please Note: we can not guarantee these will fit your scope mounts, the measurements stated were correct at the time of writing but can change from batch to batch.
When fitting, alternatively tighten the screws to secure the railed top to the base ring mount.
Do not over tighten.
We will include screws but you may need your mounts existing screws or possible new screws.
The fitting holes are not threaded, so you can elongate the holes with a round file if needed.
Also available ~ Two Piece Dovetail Scope Rings with Accessory Rails.

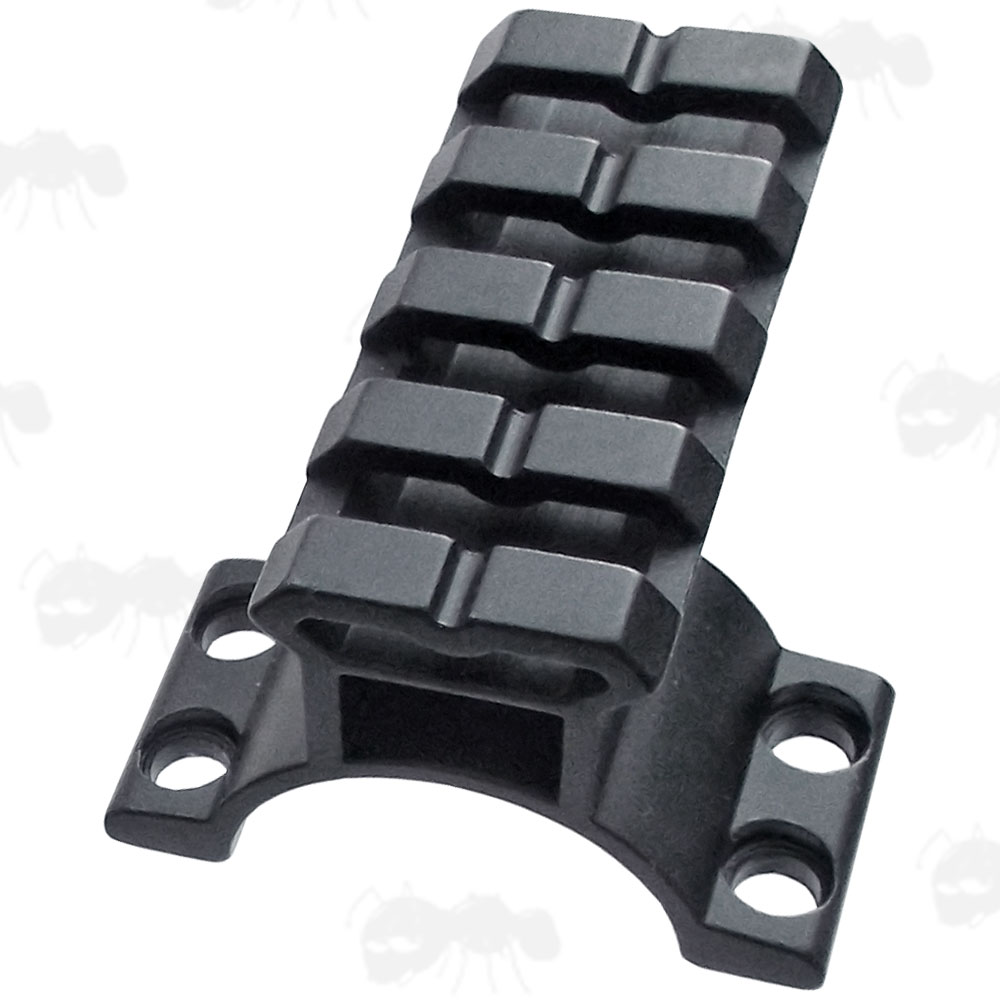

HIGH-PROFILE ~ FOUR SLOT RAIL LENGTH ~ FOR 25mm DIAMETER SCOPE RINGS:

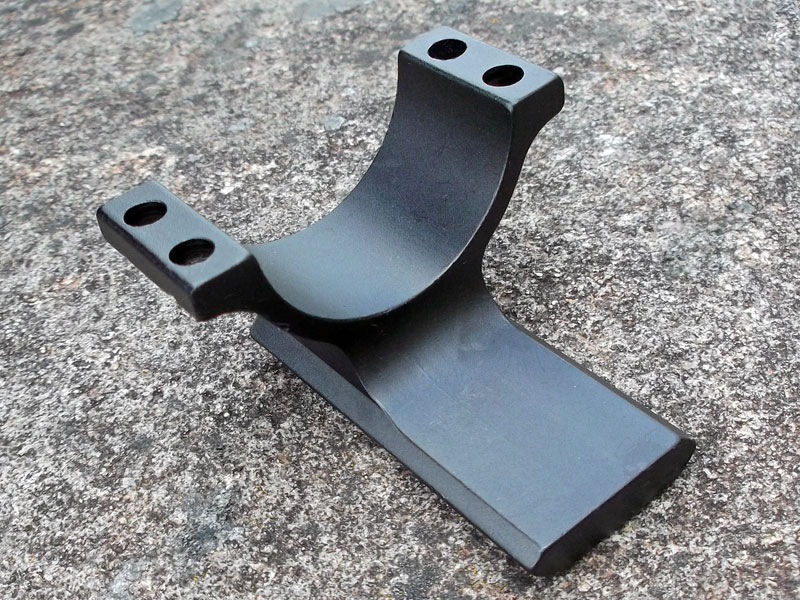

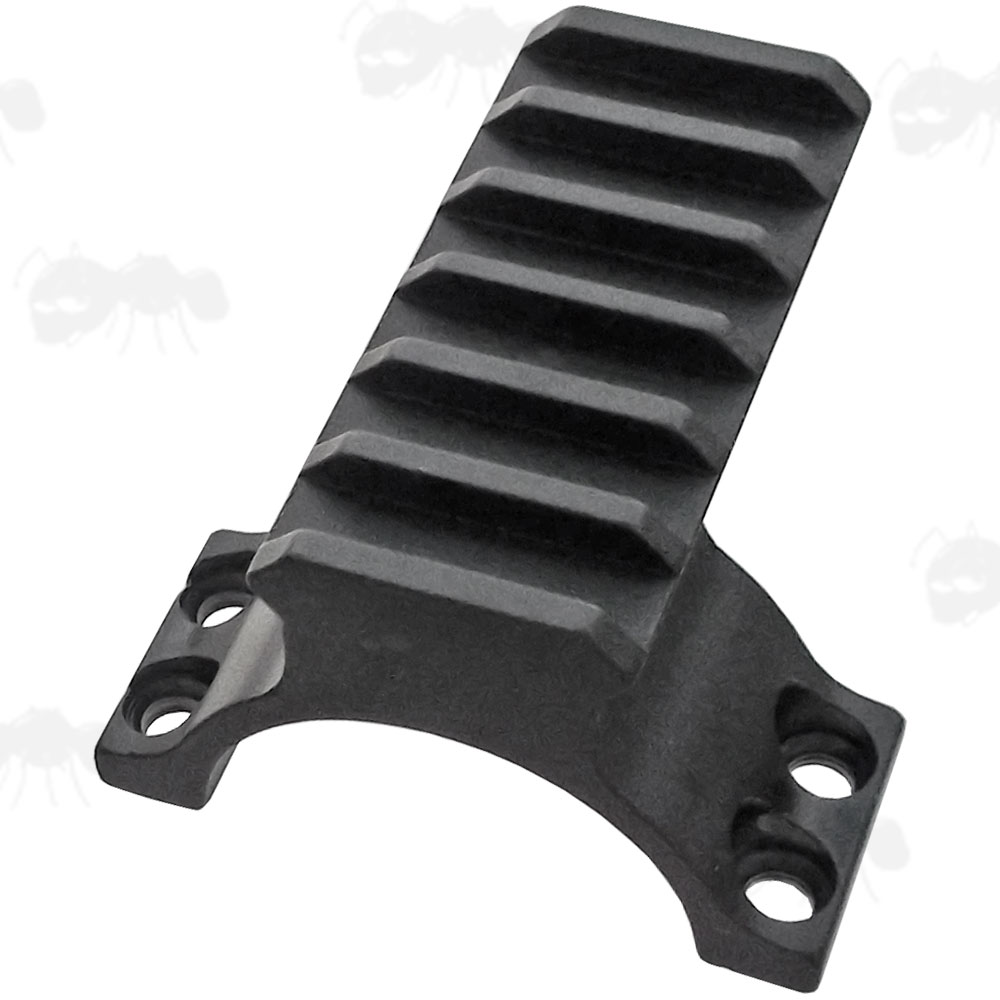

SIX SLOT RAIL LENGTH ~ FOR 30mm DIAMETER SCOPE RINGS:
FOUR SLOT RAIL LENGTH ~ FOR 30mm DIAMETER SCOPE RINGS:

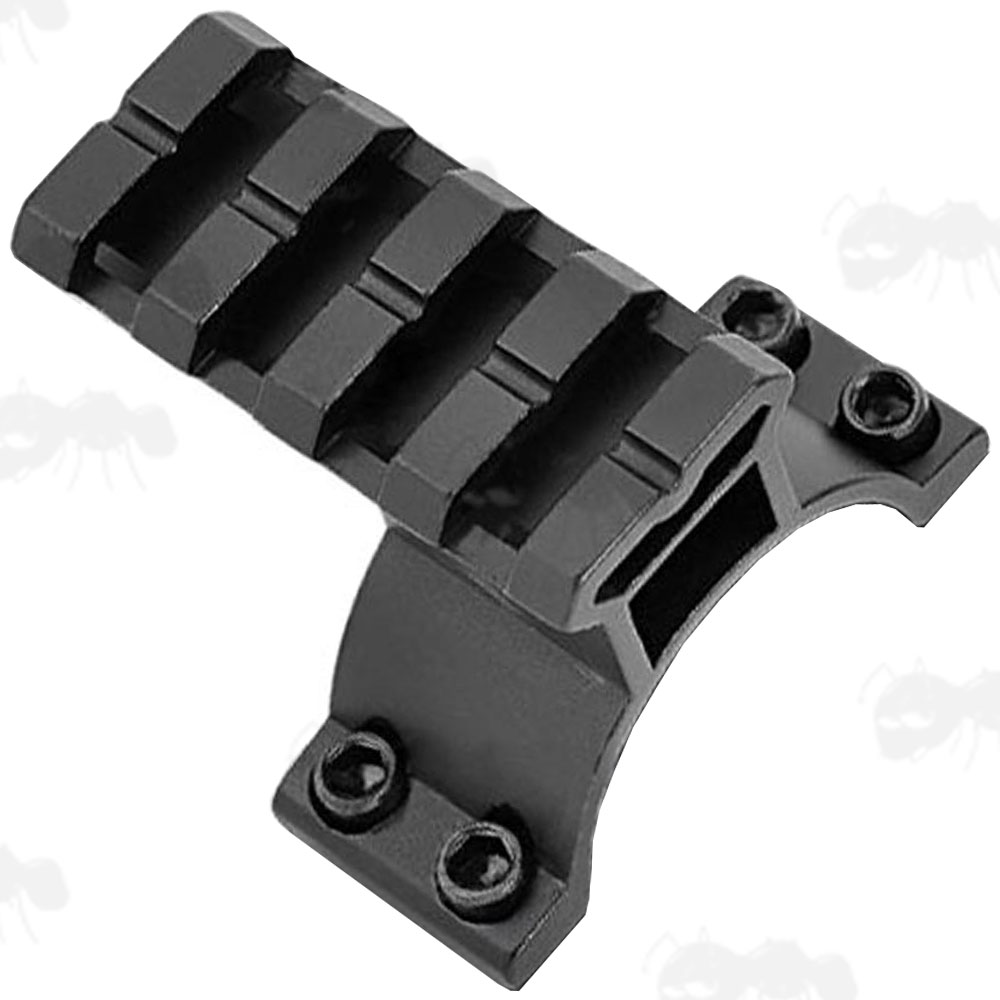

HIGH-PROFILE ~ FOUR SLOT RAIL LENGTH ~ FOR 30mm DIAMETER SCOPE RINGS:

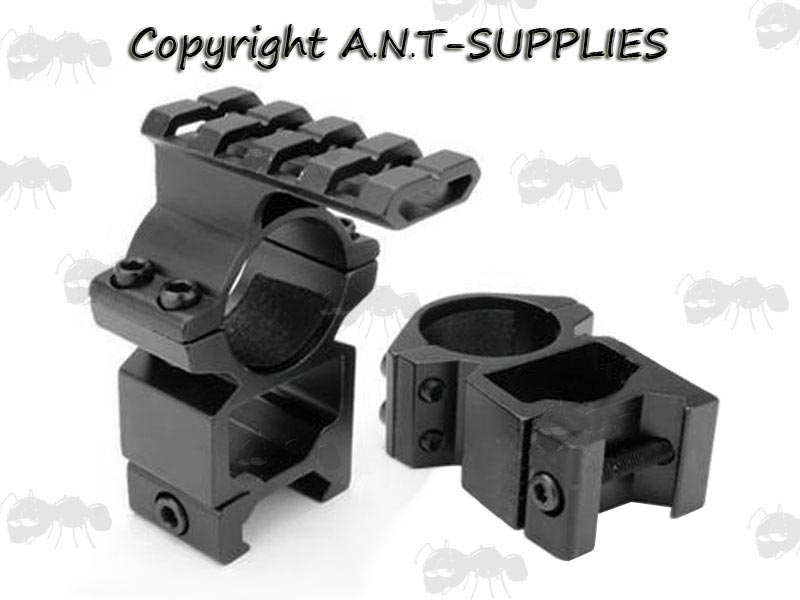

EXAMPLE OF MOUNTS FITTED WITH THE 25mm HIGH-PROFILE RAILED RING TOP:
