PCP RIFLE TRIPOD SADDLE MOUNT

1/4"-20 and 3/8"-16 threads.

POLYMER RIFLE TRIPOD SADDLE MOUNT REST

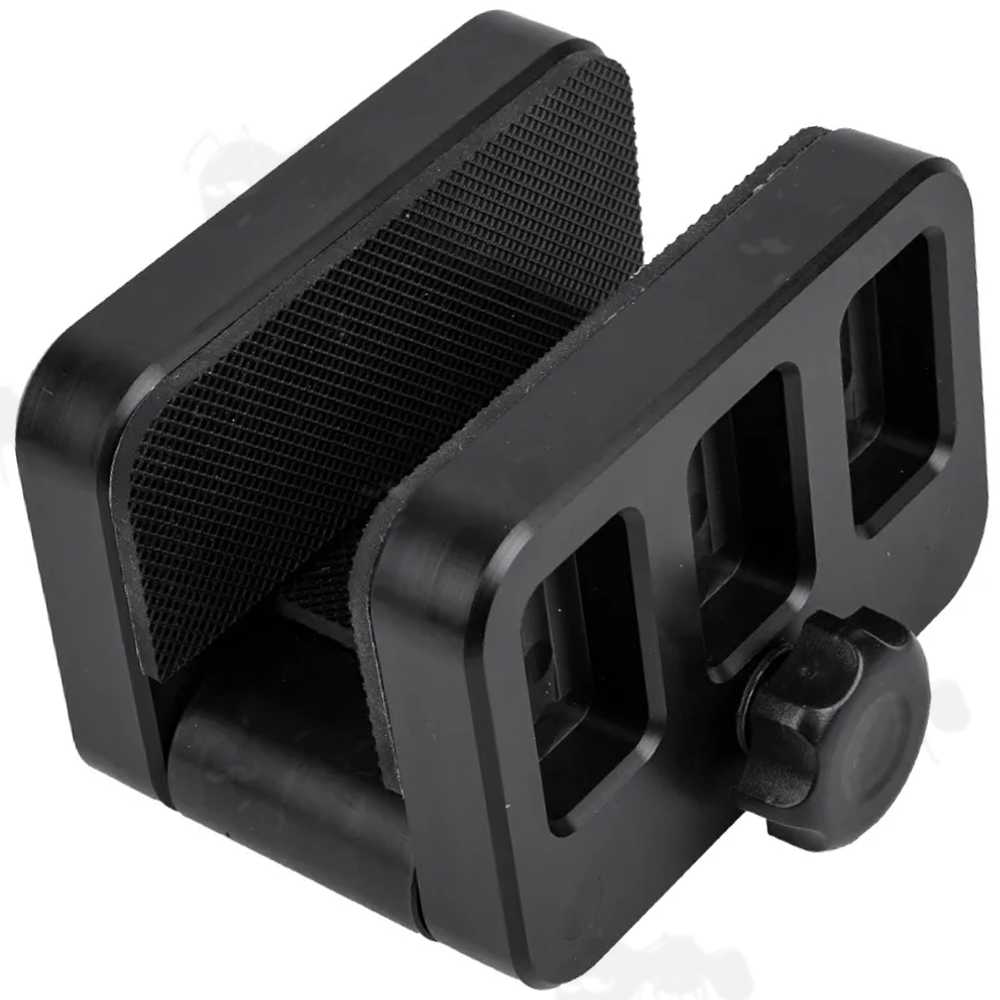

All Black Polyformaldehyde PCP Rifle Tripod Fitting Saddle Mount Rest with Dual Thread Fitting

BLACK

£36.00p each

Condition: New

Good quality rifle saddle mount rest for fitting to threaded shooting stocks, monopods, bipod, tripods.

With a 3/8"-16 thread and includes an adapter for narrower 1/4"-20 standard camera thread, to allow fitting to most threaded monopods, bipods and tripods.

This saddle is more suitable for lighter rifles, PCP airguns with narrower forends.

Made from injection moulded Polyformaldehyde (POM), an engineering thermoplastic, which is about as strong as plastic can be.

Please Note: there is nothing to stop the side clamp from being completely unscrewed to allow the saddle to be stripped for cleaning.

So attention is needed to not overly undo the bolt when in use, as the clamp is spring loaded, so the side clamp will spring off.

Double-headed padded T-shaped clamp structure compatible with equipment widths between 1.37 inches (35mm) and 2.00 inches (51mm).

Rubber pads for increased friction and protection against scratches.

Sure grip side knob for easy clamping and releasing.

Overall length ~ 100mm / 3.94″.

Overall width ~ 104mm / 4.10″.

Overall height ~ 70mm / 2.75″.

Clamp minimum width ~ 35mm / 1.37″.

Clamp maximum widths ~ 51mm / 2.00″.

Internal saddle height ~ 43mm / 1.69″.

Weighs 470 grams.

Also available ~ ARCA Swiss Tripod Rifle Saddle and Rifle Rests.

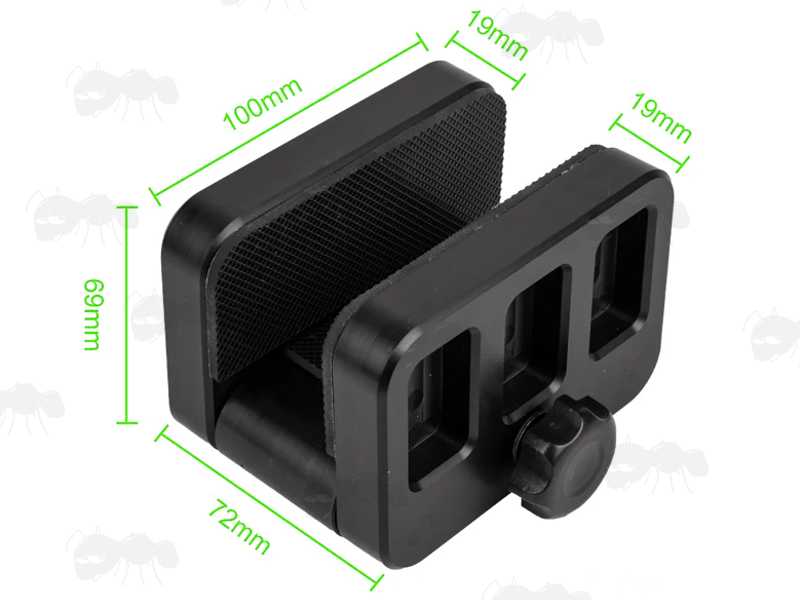

Dimensions of The All Black Polyformaldehyde Rifle Tripod Fitting Saddle Mount Rest for Either Threaded or ARCA Swiss Fitting

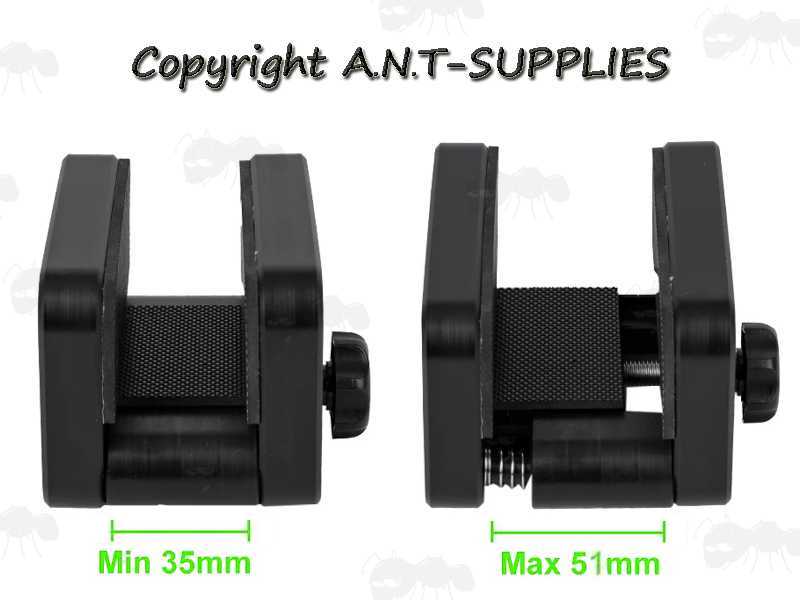

Narrowest and Widest Setting of the Saddle of The All Black Polyformaldehyde Rifle Tripod Fitting Saddle Mount Rest for Either Threaded or ARCA Swiss Fitting

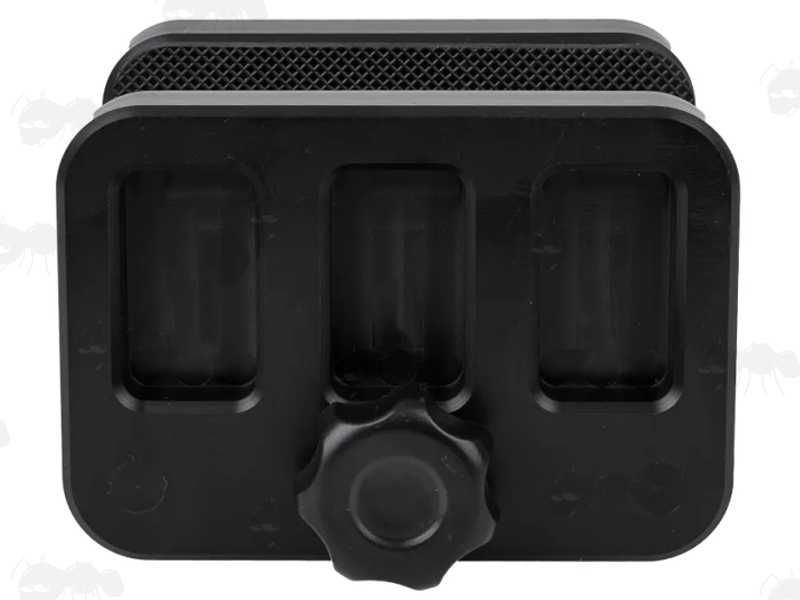

Side View of The All Black Polyformaldehyde PCP Rifle Tripod Fitting Saddle Mount Rest with Dual Thread Fitting

Base Threaded View of The All Black Polyformaldehyde PCP Rifle Tripod Fitting Saddle Mount Rest

PLEASE NOTE: THERE IS NOT A STOP ON THE ADJUSTER DIAL BOLT,
SO IT WILL COME OFF WHEN FULLY UNSCREWED:

Dismantled View of The All Black Polyformaldehyde PCP Rifle Tripod Fitting Saddle Mount Rest
